Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EMS22Q33-D28-LT4ROTARY ENCODER MAGNETIC 256PPR |
3,556 |
|
Datasheet | - | Tray | Active | Not Verified | Magnetic | Quadrature (Incremental) | 256 | 3.3V | 1/8" Dia Round End | No | - | Panel Mount | Vertical | PC Pin | 50M | - | - |
|
HEDS-5500#A12ROTARY ENCODER OPTICAL 500PPR |
4,966 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
11CEY25F243AROTARY ENCODER MECHANICAL 24PPR |
4,491 |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
11CEK25F243AROTARY ENCODER MECHANICAL 24PPR |
1,160 |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
3315C-101-016LROTARY ENCODER MECHANICAL 16PPR |
1,906 |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 25K | - | - |
|
|
11CEH20F122AROTARY ENCODER MECHANICAL 12PPR |
1,049 |
|
Datasheet | 11CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
EVQ-V5C00315BROTARY ENCODER MECHANICAL 9PPR |
2,529 |
|
Datasheet | EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

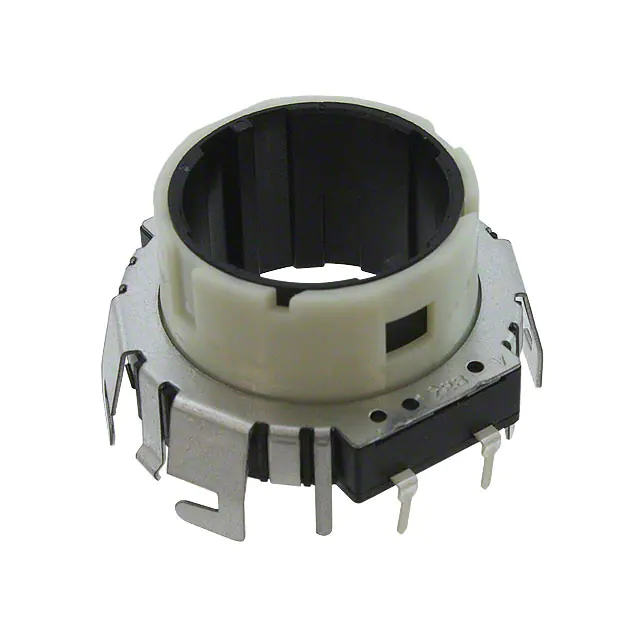

EVQ-V5H00415BROTARY ENCODER MECHANICAL 9PPR |
4,498 |
|
Datasheet | EVQV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

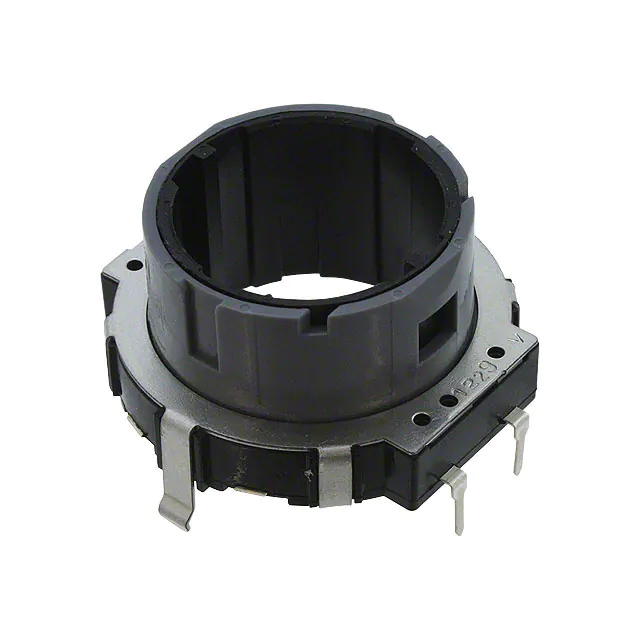

EVQ-V5B00215BROTARY ENCODER MECHANICAL 15PPR |
4,822 |
|
Datasheet | EVQV | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 27mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW1D-C28-BC0024LROTARY ENCODER MECHANICAL 24PPR |
1,905 |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1D-R24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
4,661 |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
12CE3N26F24T24ROT ENC 24PPR GRN/RED/BLU LED |
3,031 |
|
Datasheet | 12CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
291P1022F416ABROTARY ENCODER OPTICAL 4PPR |
4,442 |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 4 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
AR18-S11ROTARY ENCODER OPTICAL PROG |
4,116 |
|
Datasheet | AR18 | Bulk | Active | Not Verified | Optical | Digital | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
EM14A0D-C24-L008NROTARY ENCODER OPTICAL 8PPR |
2,256 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
EM14C0D-E24-L064NROTARY ENCODER OPTICAL 64PPR |
1,932 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
25LB11-QROTARY ENCODER MECHANICAL 32PPR |
1,892 |
|
Datasheet | 25L | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 32 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
AEAT-9966-Q3218B DUAL MAG ENC MULTIPLE AXIS T |
2,663 |
|
- |
* | Tube | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
62A15-01-PROTARY ENCODER OPTICAL 24PPR |
4,101 |
|
Datasheet | 62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|
|
AEDS-9340-L00ROTARY ENCODER OPTICAL 1250PPR |
2,641 |
|
Datasheet | AEDS-9340 | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1250 | 5V | Codewheel Not Included | No | No | Chassis Mount | - | Terminal Pins | - | - | - |
