Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDM-5600#B13ROTARY ENCODER OPTICAL 1000PPR |
1,416 |
|
Datasheet | HEDM | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1000 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#56RROTARY ENCODER OPTICAL 32PPR |
1,638 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
RAMK060M11319LBRAMK 060 U M 1 13 19 L CNA B001 |
2,943 |
|
Datasheet | RAMK | Box | Active | Not Verified | Absolute, Magnetic | BiSS-C | 335,872 | - | - | - | - | - | - | - | - | - | - |
|
1037067MOTORFEEDBACK |
1,004 |
|
Datasheet | SRS/SRM50 | Bulk | Active | - | Absolute | Digital | 1024 | 7V ~ 12V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 3.6B | - | - |
|
PAC18R1-41D19FENCODER |
1,366 |
|
Datasheet | PAC18R | Tray | Active | Not Verified | Absolute | Gray Code (Absolute) | - | - | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11L-4125F-N0020ROTARY ENCODER MECHANICAL 20PPR |
4,801 |
|
Datasheet | PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
PEL12D-2225S-S1024ROTARY ENCODER MECHANICAL 24PPR |
2,175 |
|
Datasheet | PEL12D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
5454SURFACE MOUNT ROTARY ENCODER - E |
4,083 |
|
Datasheet | EC11 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | - | 5V | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 100K | - | - |
|
377ROTARY ENCODER MECHANICAL 24PPR |
3,474 |
|
Datasheet | - | Bulk | Active | Not Verified | Mechanical | Quadrature (Analog) | 24 | - | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
PEL12D-4225S-S1024ROTARY ENCODER MECHANICAL 24PPR |
1,804 |
|
Datasheet | PEL12D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Knurled End, Illuminated | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
ECW1J-R24-CC0024LROTARY ENCODER MECHANICAL 24PPR |
2,239 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
12CE3H26F12T24ROT ENC 12PPR GRN/RED/BLU LED |
1,844 |
|
Datasheet | 12CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
REC16K25-20116MM MANUAL ENCODER, SINGLE SHAF |
2,700 |
|
Datasheet | REC16K | Box | Active | Not Verified | Optical | Voltage | 25 | 5V | 6.35mm Dia Flatted End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 2M | - | - |
|
EM14A0A-B24-L064NROTARY ENCODER OPTICAL 64PPR |
1,800 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14A0D-B28-L008SROTARY ENCODER OPTICAL 8PPR |
4,213 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 1/4" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

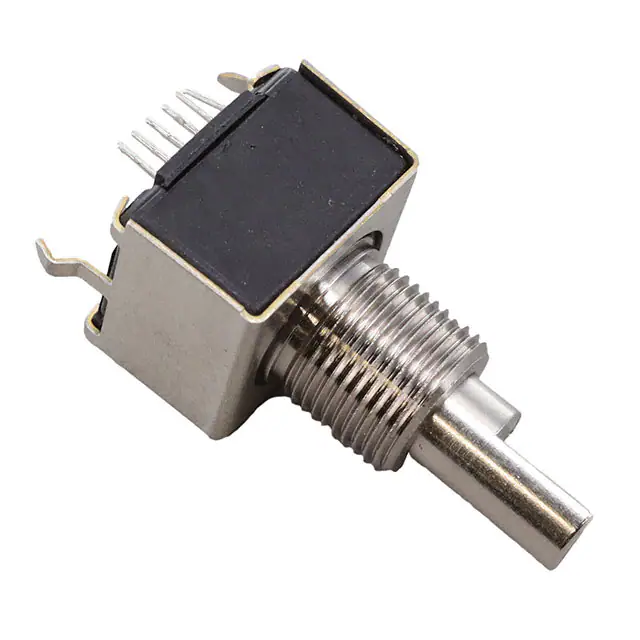

EM14R1B-M20-L032SROTARY ENCODER OPTICAL 32PPR |
2,467 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
AEDT-9810-Z00ROTARY ENCODER OPTICAL 5000PPR |
4,158 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
HEDS-9140#H00ROTARY ENCODER OPTICAL 400PPR |
1,934 |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 400 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
ENC1J-D28-L00100LROTARY ENCODER OPTICAL 100PPR |
3,447 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/8" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
62A22-01-PROTARY ENCODER OPTICAL 16PPR |
1,272 |
|
Datasheet | 62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
