Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E40HB8-2048-6-L-5ENCODER 40MM 2048PPR 5VDC |
3,530 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 2048 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
ENH-100-2-T-24ENCODER HANDLE 100PPR 12-24VDC |
4,062 |
|
Datasheet | ENH | Box | Active | Not Verified | Incremental | Totem Pole | 100 | 12V ~ 24V | Shaft | No | No | Chassis Mount | User Selectable | Terminal Block | - | - | - |
|
E40H8-1024-6-L-5ENCODER 40MM 1024PPR 5VDC |
4,722 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 1024 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40HB8-1000-6-L-24ENCODER 40MM 1000PPR 12-24VDC |
2,425 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 1000 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40S6-1024-3-N-5ENCODER 40MM 1024PPR 5VDC |
4,959 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | NPN - Open Collector | 1024 | 5V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S6-200-3-N-24ENCODER 40MM 200PPR 12-24VDC |
4,521 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | NPN - Open Collector | 200 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-1024-3-V-24ENCODER 40MM 1024PPR 12-24VDC |
2,728 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Voltage | 1024 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E50S8-2000-3-T-24-CENCODER 50MM 2000PPR 12-24VDC |
3,077 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 2000 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable with Connector | - | - | - |
|
|
E50S8-600-3-T-24-CENCODER 50MM 600PPR 12-24VDC |
2,204 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 600 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable with Connector | - | - | - |
|
E20S2-360-3-V-5-SENCODER 20MM 360PPR 5VDC |
4,786 |
|
Datasheet | E20S | Box | Active | Not Verified | Incremental | Voltage | 360 | 5V | 2mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-5000-3-N-24ENCODER 40MM 5000PPR 12-24VDC |
4,320 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 5000 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|

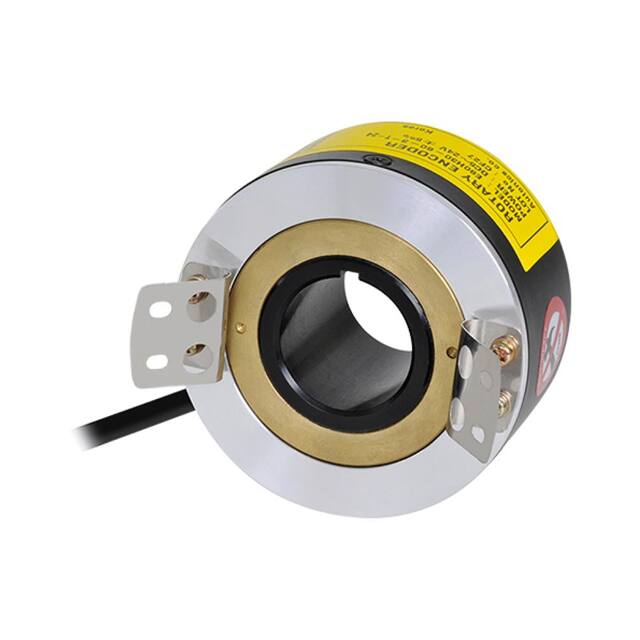

E80H30-1024-3-V-24ENCODER 80MM 1024PPR 12-24VDC |
2,242 |
|
Datasheet | E80H | Box | Active | Not Verified | Incremental | Voltage | 1024 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E20S2-360-3-V-12-RENCODER 20MM 360PPR 12VDC |
1,253 |
|
Datasheet | E20S | Box | Active | Not Verified | Incremental | Voltage | 360 | 12V | 2mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-2048-3-T-24ENCODER 40MM 2048PPR 12-24VDC |
2,536 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Totem Pole | 2048 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S6-2500-6-L-5ENCODER 40MM 2500PPR 5VDC |
3,924 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 2500 | 5V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E80H30-1024-3-N-24ENCODER 80MM 1024PPR 12-24VDC |
3,011 |
|
Datasheet | E80H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 1024 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S6-3600-6-L-5ENCODER 40MM 3600PPR 5VDC |
2,282 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 3600 | 5V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E30S4-1000-6-L-5ENCODER 30MM 1000PPR 5VDC |
1,380 |
|
Datasheet | E30S | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 1000 | 5V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E50S8-200-3-N-24ENCODER 50MM 200PPR 12-24VDC |
3,053 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | NPN - Open Collector | 200 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E30S4-1000-3-T-5ENCODER 30MM 1000PPR 5VDC |
2,125 |
|
Datasheet | E30S | Box | Active | Not Verified | Incremental | Totem Pole | 1000 | 5V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
