Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E30S4-500-3-N-5ENCODER 30MM 500PPR 5VDC |
4,990 |
|
Datasheet | E30S | Box | Active | Not Verified | Incremental | NPN - Open Collector | 500 | 5V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|

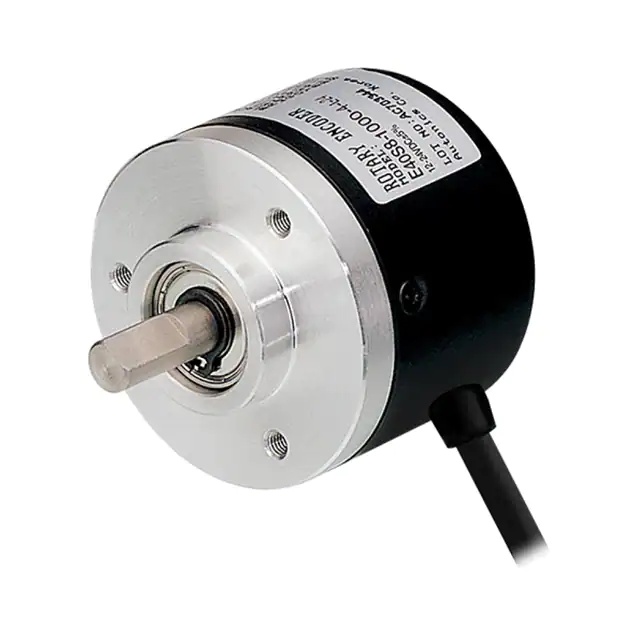

E40S6-100-3-V-24ENCODER 40MM 100PPR 12-24VDC |
1,697 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Voltage | 100 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S8-100-3-T-24ENCODER 40MM 100PPR 12-24VDC |
4,516 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Totem Pole | 100 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E50S8-100-3-V-24ENCODER 50MM 100PPR 12-24VDC |
4,489 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Voltage | 100 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
ENA-500-2-N-24ENCODER 10 SHAFT 500PPR 12-24VDC |
3,898 |
|
Datasheet | ENA | Box | Active | Not Verified | Incremental | NPN - Open Collector | 500 | 12V ~ 24V | 10mm Dia Round End | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
|
ENA-360-3-N-24ENCODER 10 SHAFT 360PPR 12-24VDC |
1,025 |
|
Datasheet | ENA | Box | Active | Not Verified | Incremental | NPN - Open Collector | 360 | 12V ~ 24V | 10mm Dia Round End | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
E40H8-100-3-T-5ENCODER 40MM 100PPR 5VDC |
4,432 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Totem Pole | 100 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S6-1024-3-V-24ENCODER 40MM 1024PPR 12-24VDC |
2,084 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Voltage | 1024 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H8-60-3-N-24ENCODER 40MM 60PPR 12-24VDC |
4,123 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 60 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40S6-360-3-V-5ENCODER 40MM 360PPR 5VDC |
1,365 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Voltage | 360 | 5V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
ENC-1-3-N-24ENCODER WHEEL 1PPR 12-24VDC |
1,455 |
|
Datasheet | ENC | Box | Active | Not Verified | Incremental | NPN - Open Collector | 1 | 12V ~ 24V | - | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-40-3-V-24ENCODER 40MM 40PPR 12-24VDC |
2,179 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Voltage | 40 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-100-3-V-24ENCODER 40MM 100PPR 12-24VDC |
1,534 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Voltage | 100 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E50S8-100-6-L-5ENCODER 50MM 100PPR 5VDC |
4,131 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 100 | 5V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40HB8-800-3-T-24ENCODER 40MM 800PPR 12-24VDC |
3,053 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Totem Pole | 800 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40HB8-1024-3-N-24ENCODER 40MM 1024PPR 12-24VDC |
1,872 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 1024 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E58SC10-100-3-V-24ENCODER 58MM 100PPR 12-24VDC |
3,202 |
|
Datasheet | E58 | Box | Active | Not Verified | Incremental | Voltage | 100 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E58SC10-500-3-T-5ENCODER 58MM 500PPR 5VDC |
1,395 |
|
Datasheet | E58 | Box | Active | Not Verified | Incremental | Totem Pole | 500 | 5V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E50S8-1000-3-T-5ENCODER 50MM 1000PPR 5VDC |
4,371 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 1000 | 5V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H8-3600-3-N-24ENCODER 40MM 3600PPR 12-24VDC |
4,669 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 3600 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
