Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-5500#G05ROTARY ENCODER OPTICAL 360PPR |
2,797 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 360 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

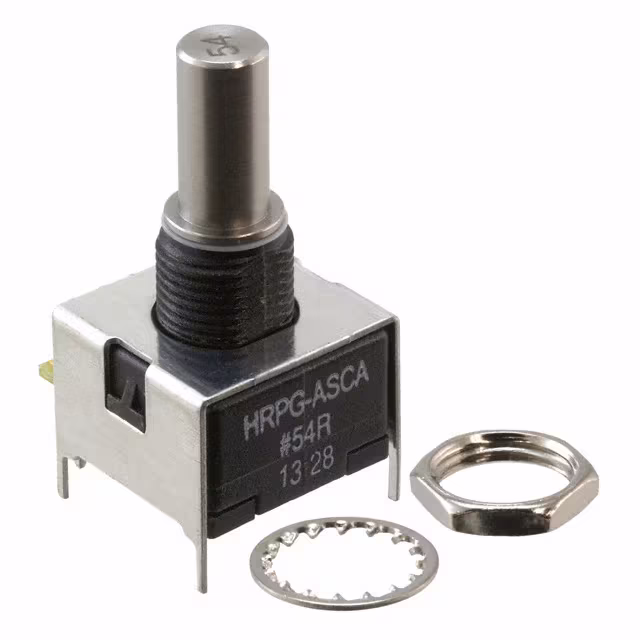

HRPG-ASCA#54RROTARY ENCODER OPTICAL 120PPR |
149 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 6mm Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-5540#A14ROTARY ENCODER OPTICAL 500PPR |
139 |
|
Datasheet | HEDS | Tray | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#16RROTARY ENCODER OPTICAL 32PPR |
142 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AS20-M42M-K1120MM KITS 42B MT 5V 4MM RS485 |
117 |
|
Datasheet | AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AS20-M42M-B1120MM KITS 42B MT 5V 4MM BISS |
118 |
|
Datasheet | AS20 | Bulk | Active | - | Absolute, Magnetic | - | - | 4.5V ~ 5.5V | Hole for Shaft | No | Yes | Chassis Mount | Vertical | Connector | - | - | - |
|
|
AR25-AS1P-A18TPCBA CW 12MMTHRU H,SSI/485/ESL |
1,674 |
|
- |
- | Tray | Active | Not Verified | Optical | Digital, SSI | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|

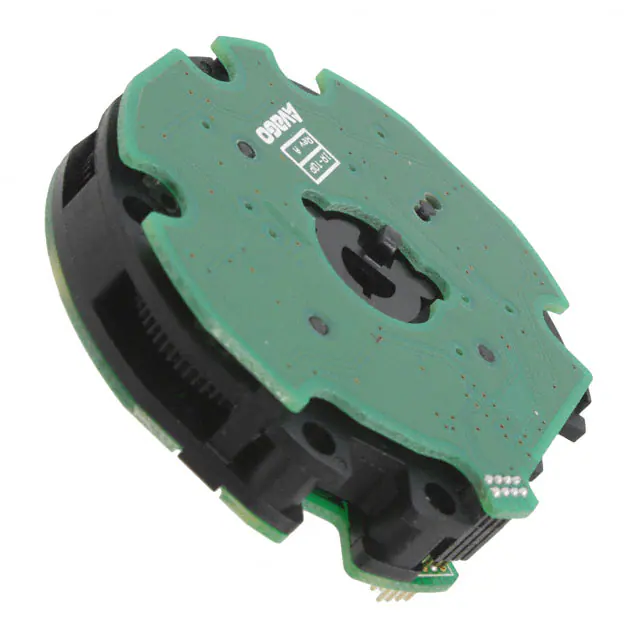

AEAT-84AD-LBSF0ROTARY ENCODER OPTICAL 16384PPR |
4,732 |
|
Datasheet | AEAT-84AD | Bulk | Active | Not Verified | Optical | Gray Code (Absolute) | 16384 | 5V | 10mm Geared Center | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|

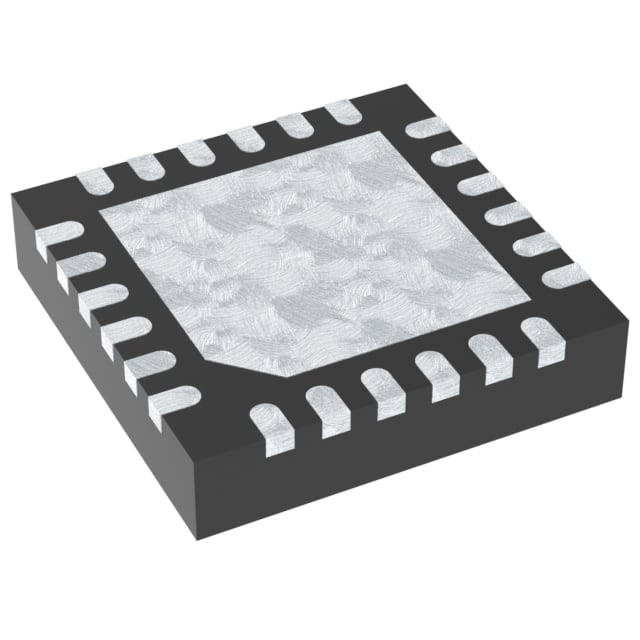

AEAT-8811-Q24ENHANCE PROG 16BITS IC MAGNETIC |
886 |
|
Datasheet | - | Tube | Last Time Buy | Not Verified | Magnetic | Commutation, PWM, SPI, Quadrature with index (Incremental) | Programmable | 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|

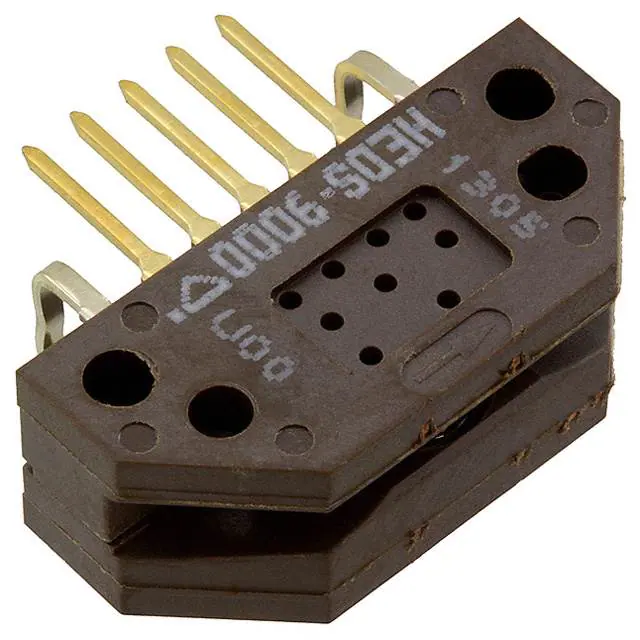

HEDS-9000#U00ROTARY ENCODER OPTICAL 2048PPR |
226 |
|
Datasheet | HEDS | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 2048 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
