Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-9920-102AEDR-9920, 225 LPI INC ENCODER, |
189 |
|
- |
- | Tape & Reel (TR) | Active | Not Verified | Optical | Quadrature (Incremental) | Programmable | 3V ~ 3.6V | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
AEDR-9820A-102AUTO HT, ENCODER 225LPI, REEL 10 |
188 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 225 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-9930EL-102LINEAR 397LPI ENCODER,TNR 100 PC |
3,789 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | - | Incremental | Digital | 397 LPI | 3.3V ~ 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

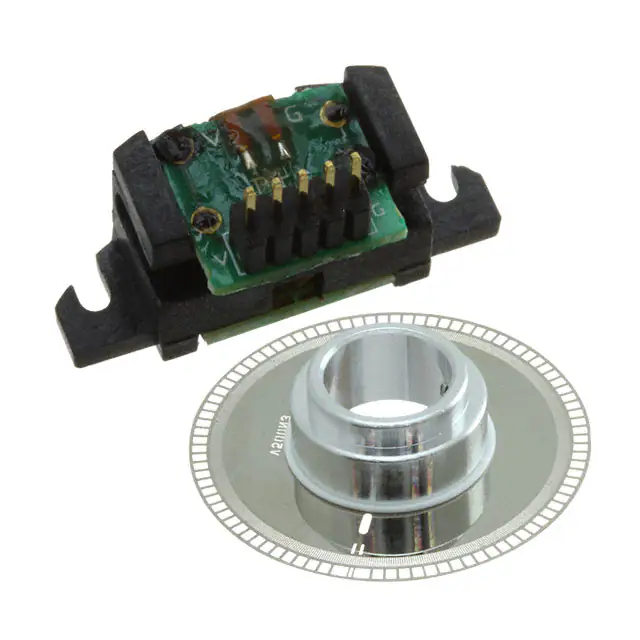

AEDB-9140-A13ROTARY ENCODER OPTICAL 500PPR |
2,353 |
|
Datasheet | AEDB-9140 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
|
HEDS-5540#A11ROTARY ENCODER OPTICAL 500PPR |
4,243 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AR25-AS1P-A12TPCBA CW 6MMTHRU H,SSI/485/ESL |
4,057 |
|
- |
- | Tray | Active | Not Verified | Optical | Digital, SSI | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|
HEDS-9701#F54ROTARY ENCODER OPTICAL 256PPR |
3,302 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
HEDS-5540#A13ROTARY ENCODER OPTICAL 500PPR |
3,886 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#A05ROTARY ENCODER OPTICAL 500PPR |
2,593 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 3/16" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

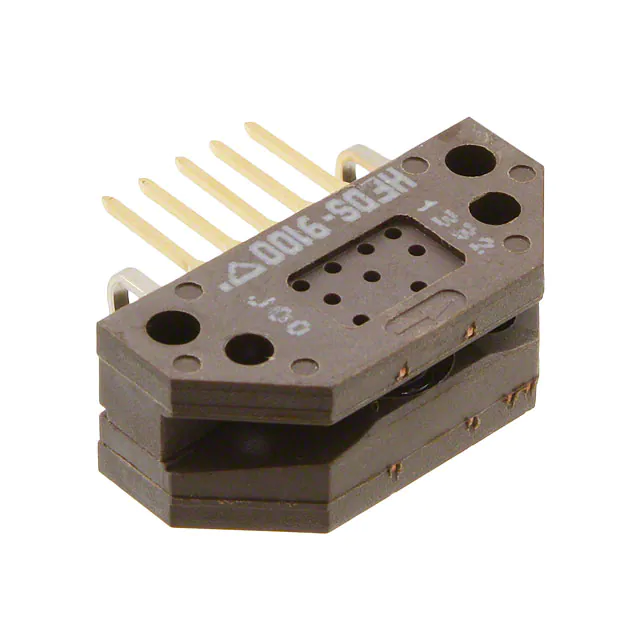

HEDS-9100#J00ROTARY ENCODER OPTICAL 1024PPR |
3,751 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 1024 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
