Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

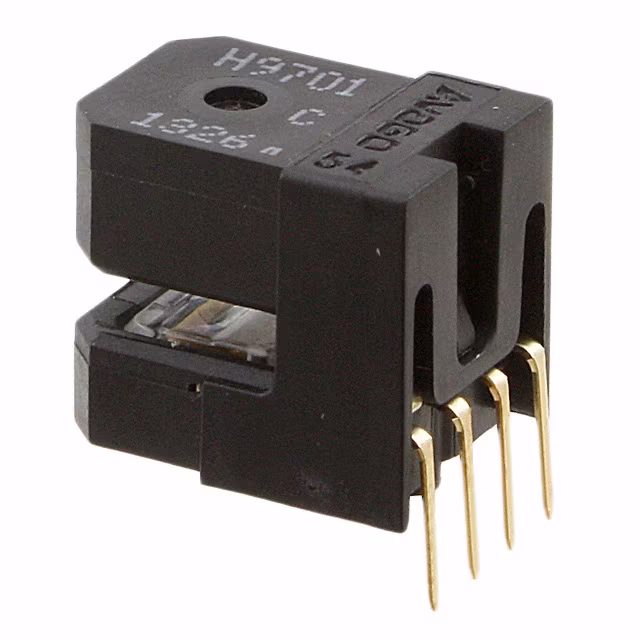

HEDS-9701#C54ROTARY ENCODER OPTICAL 100PPR |
408 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
HEDS-9731#A50ROTARY ENCODER OPTICAL 500PPR |
238 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 2.8V ~ 5.2V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
AEAT-9988M-104MAG ABS 23BITS SSI SPI RS485 TR |
300 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HEDS-9101#A00ROTARY ENCODER OPTICAL 500PPR |
168 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
AEDR-9940-102198.4 LPI INCREMENTAL ENCODER 10 |
163 |
|
- |
AEDR | Tray | Active | - | Incremental | Quadrature (Incremental) | - | 3.3V ~ 5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|

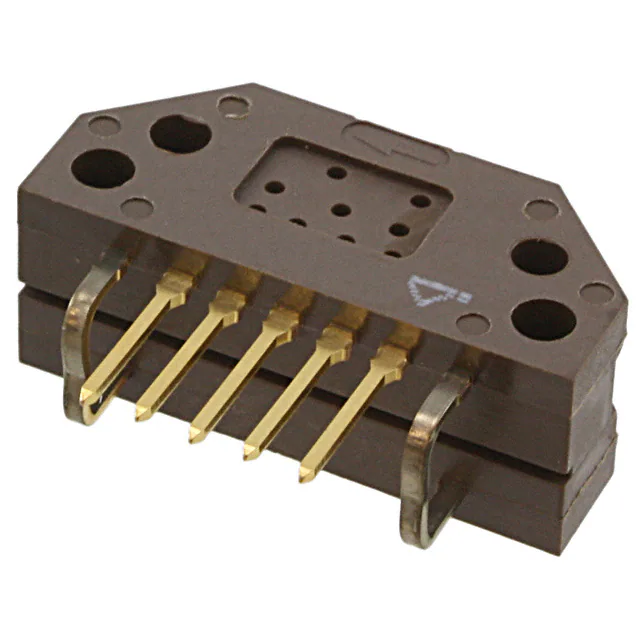

HEDS-9140#F00ROTARY ENCODER OPTICAL 256PPR |
102 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEAT-9010-S06MAG ABS 10BITS SSI KIT 6MM SHAFT |
167 |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

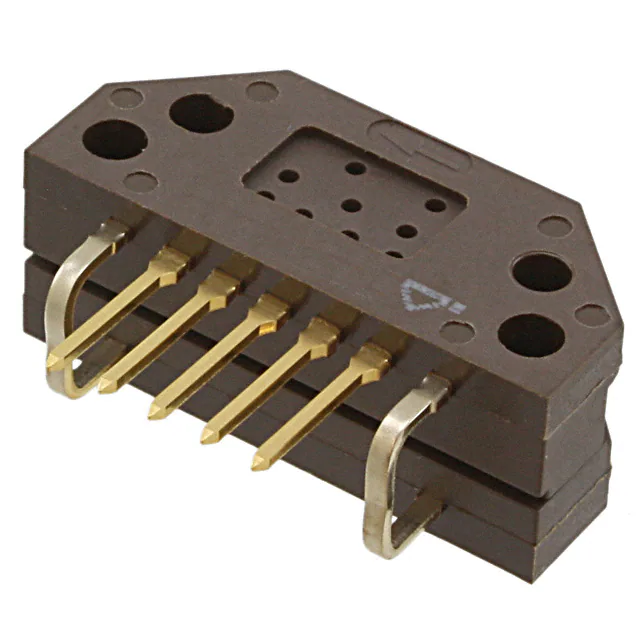

HEDS-9200#300ROTARY ENCODR OPTICAL 300 LPI |
201 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 300 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9140#I00ROTARY ENCODER OPTICAL 512PPR |
159 |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
AEAT-9014-S06MAG ABS 14BITS SSI KIT 6MM SHAFT |
248 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
