Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26GSD45-01-1-AJSROTARY ENCODER MECHANICAL 8PPR |
189 |
|
Datasheet | 26 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 8 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
AMT132S-VKIT, AMT132S, INCREMENTAL ENCODE |
1,914 |
|
Datasheet | AMT13 | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
62A11-02-PROTARY ENCODER OPTICAL 32PPR |
223 |
|
Datasheet | 62A | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | User Selectable | PC Pin | 1M | - | - |
|

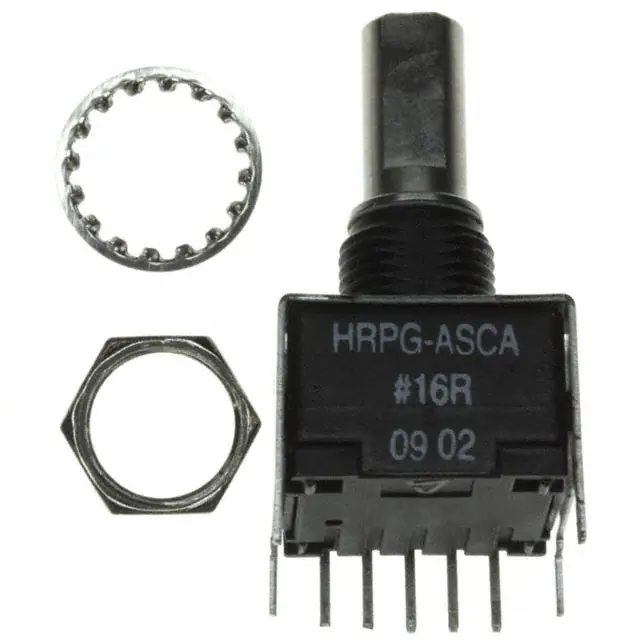

HRPG-ASCA#16RROTARY ENCODER OPTICAL 120PPR |
527 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
AMT203-VROTARY ENCODER ABS 4096PPR/12BIT |
413 |
|
Datasheet | AMT20 | Box | Active | Not Verified | Absolute | SPI | 4096 | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
|
AMT203S-VKIT, AMT 203S, 12-BIT SPI ABSOLU |
212 |
|
Datasheet | AMT20 | Box | Active | Not Verified | Absolute | SPI | 4096 | 4.5V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|
62S11-M5-PROTARY ENCODER OPTICAL 32PPR |
217 |
|
Datasheet | 62S | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
HEDS-5600#C06ROTARY ENCODER OPTICAL 100PPR |
140 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 100 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A14ROTARY ENCODER OPTICAL 500PPR |
129 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5600#A13ROTARY ENCODER OPTICAL 500PPR |
102 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5540#A06ROTARY ENCODER OPTICAL 500PPR |
100 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#A06ROTARY ENCODER OPTICAL 500PPR |
1,353 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5600#A06ROTARY ENCODER OPTICAL 500PPR |
3,182 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HEDS-5500#E06ROTARY ENCODER OPTICAL 200PPR |
3,726 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 200 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
HRPG-AD32#16FROTARY ENCODER OPTICAL 32PPR |
504 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

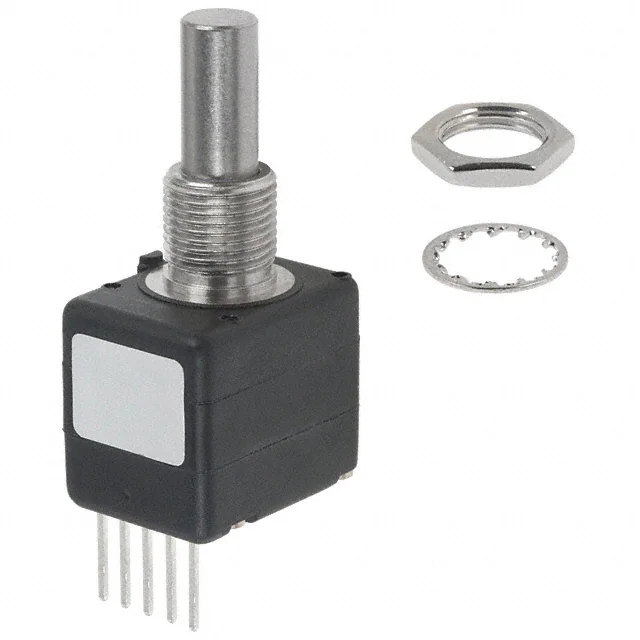

ENS1J-B28-L00256LROTARY ENCODER OPTICAL 256PPR |
207 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200M | - | - |
|
62H2222-H9-PROTARY ENCODER OPTICAL 16PPR |
265 |
|
Datasheet | 62H | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | Concentric | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

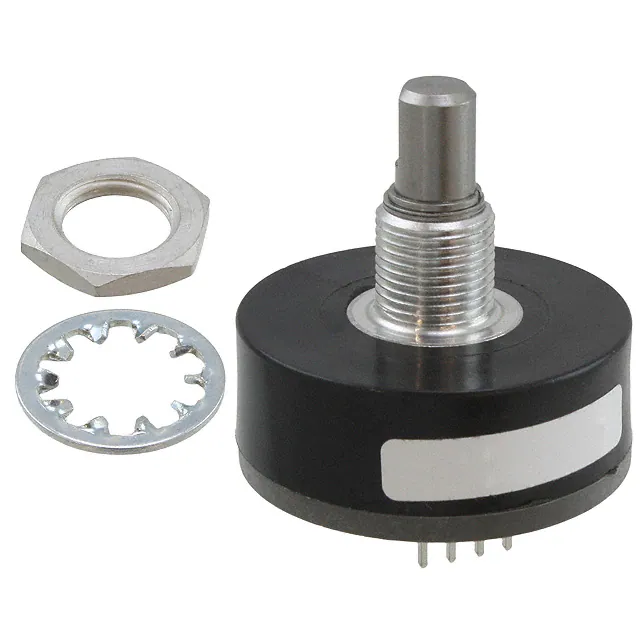

61K128ROTARY ENCODER OPTICAL 128PPR |
3,787 |
|
Datasheet | 61K | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
63R64ROTARY ENCODER OPTICAL 64PPR |
3,932 |
|
Datasheet | 63R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 300M | - | - |
|
|
63R256ROTARY ENCODER OPTICAL 256PPR |
209 |
|
Datasheet | 63R | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 256 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 300M | - | - |
