Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-8710-102ROTARY ENCODER OPTICAL PROG |
24,241 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-8711-102ROTARY ENCODER OPTICAL PROG |
524 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AS5245-HMFM MLF32 LF T&RDPROTARY ENCODER MAGNETIC |
1,078 |
|
Datasheet | - | Tape & Reel (TR) | Active | Not Verified | Magnetic | Quadrature (Incremental) | - | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | Automotive | AEC-Q100 |
|
|
AEDR-9830-100ENCODER 318LPI, REEL 1KPC |
3,188 |
|
- |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
HEDS-9040#B00ROTARY ENCODER OPTICAL 1000PPR |
425 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
AEDR-9830-102ENCODER 318LPI, REEL 100PC |
200 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
61C22-01-04-02ROTARY ENCODER OPTICAL 16PPR |
2,126 |
|
Datasheet | 61C | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
.jpg)
|
AEDR-9830A-102AUTO HT ENCODER 318LPI, REEL 100 |
500 |
|
- |
AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 318 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|

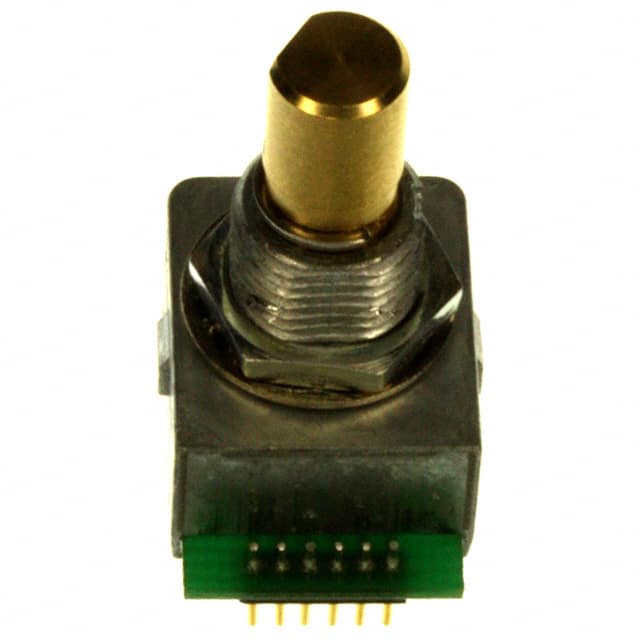

C14D32P-C3ROTARY ENCODER OPTICAL 32PPR |
145 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AEDR-8723-102ROTARY ENCODER OPTICAL |
4,149 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Differential Voltage | - | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | - | - | - |
|

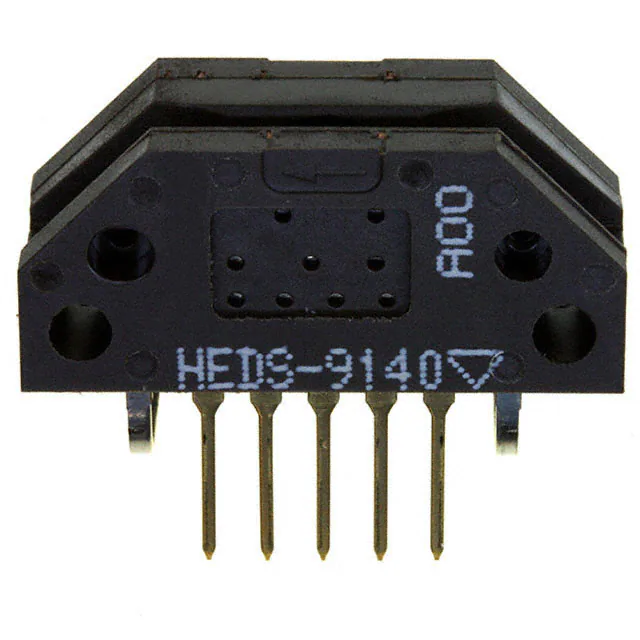

HEDS-9140#A00ROTARY ENCODER OPTICAL 500PPR |
244 |
|
Datasheet | HEDS | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|

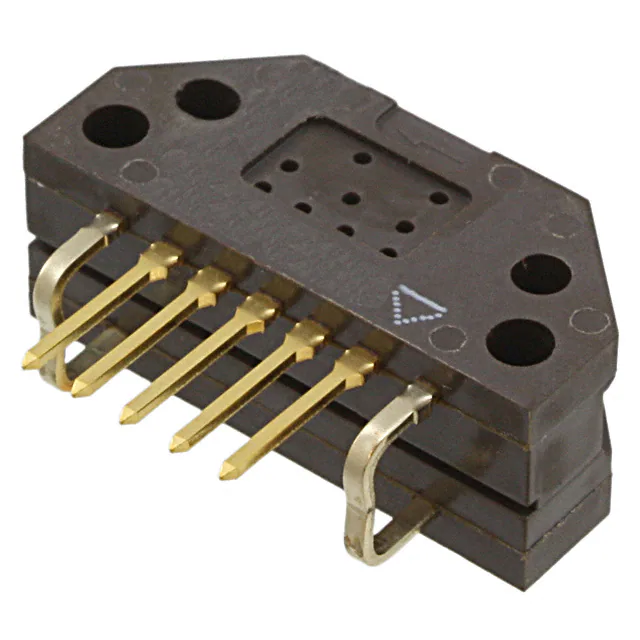

HEDS-9140#G00ROTARY ENCODER OPTICAL 360PPR |
576 |
|
Datasheet | HEDS | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
61C11-01-08-02ROTARY ENCODER OPTICAL 32PPR |
152 |
|
Datasheet | 61C | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
ENA1J-B28-L00128LROTARY ENCODER OPTICAL 128PPR |
184 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|

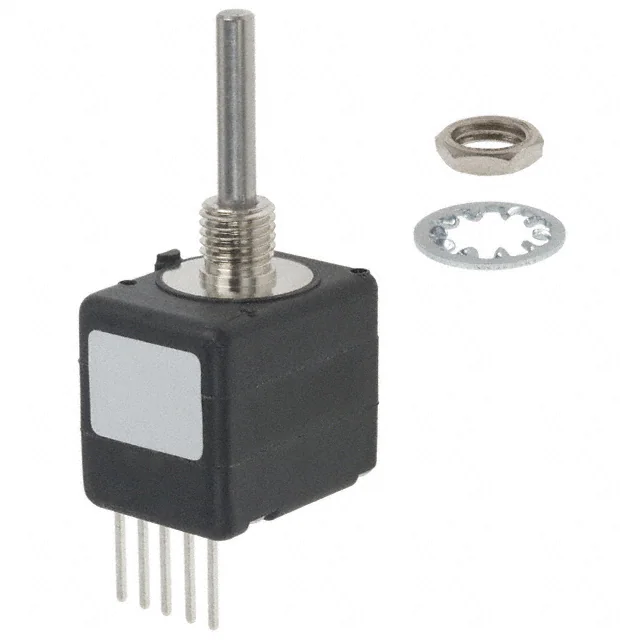

ENC1J-D28-L00128LROTARY ENCODER OPTICAL 128PPR |
2,612 |
|
Datasheet | EN | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/8" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 10M | - | - |
|
|
AEAT-9012-S06ROTARY ENCODER MAGNETIC 4096PPR |
455 |
|
- |
- | Bulk | Active | - | Absolute | Digital | - | - | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
AMT313Q-VROTARY ENCODER INCREMENT PROGPPR |
1,151 |
|
Datasheet | AMT31 | Box | Active | Not Verified | Incremental | Commutation | Programmable | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins | - | - | - |
|

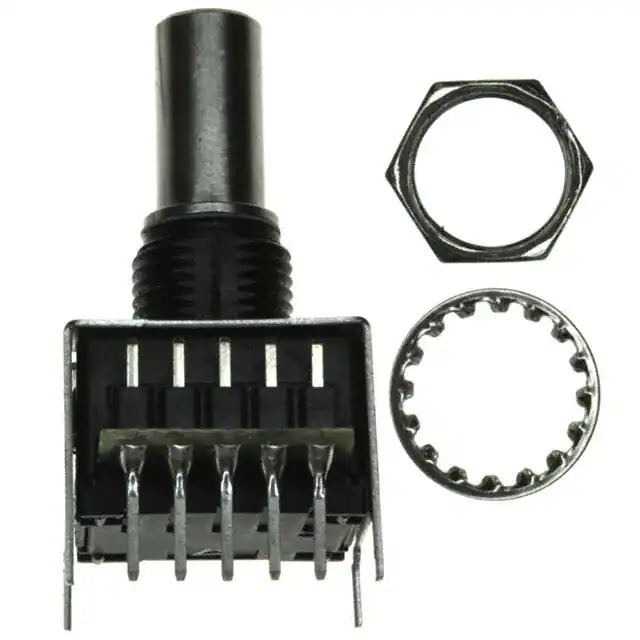

HRPG-ASCA#14RROTARY ENCODER OPTICAL 120PPR |
436 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|

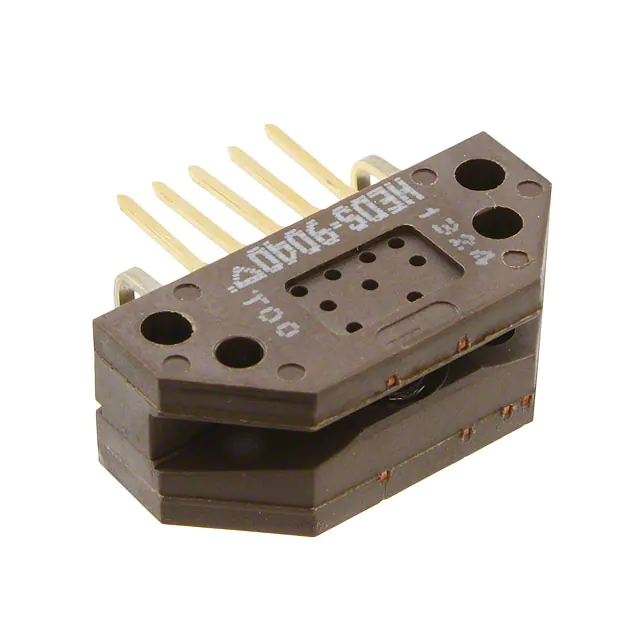

HEDS-9040#T00ROTARY ENCODER OPTICAL 2000PPR |
447 |
|
Datasheet | HEDS | Tray | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
26GSD22-01-1-AJSROTARY ENCODER MECHANICAL 16PPR |
421 |
|
Datasheet | 26 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/8" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
