DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STMGFS304815-N3DC/DC CONVERTER 15V 30W |
2,641 |
|
Datasheet | STMGFS (30W) | Box | Active | Enclosed | 18V | 76V | 1 | 15V | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFS30483R3-N3DC/DC CONVERTER 3.3V 25W |
3,300 |
|
Datasheet | STMGFS (30W) | Box | Active | Enclosed | 18V | 76V | 1 | 3.3V | - | - | - | 7.5A | 25W | 1.5 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW302405-N3DC/DC CONVERTER +/-5V 20W |
3,580 |
|
Datasheet | STMGFW (30W) | Box | Active | Enclosed | 9V | 36V | 2 | 5V | -5V | - | - | 2A, 2A | 20W | 1.5 kV | ITE (Commercial) | 85% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW302412-N3DC/DC CONVERTER +/-12V 30W |
2,998 |
|
Datasheet | STMGFW (30W) | Box | Active | Enclosed | 9V | 36V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW302415-N3DC/DC CONVERTER +/-15V 30W |
3,250 |
|
Datasheet | STMGFW (30W) | Box | Active | Enclosed | 9V | 36V | 2 | 15V | -15V | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW304805-N3DC/DC CONVERTER +/-5V 20W |
2,258 |
|
Datasheet | STMGFW (30W) | Box | Active | Enclosed | 18V | 76V | 2 | 5V | -5V | - | - | 2A, 2A | 20W | 1.5 kV | ITE (Commercial) | 85% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW304812-N3DC/DC CONVERTER +/-12V 30W |
4,539 |
|
Datasheet | STMGFW (30W) | Box | Active | Enclosed | 18V | 76V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | 1.5 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|
|
STMGFW304815-N3DC/DC CONVERTER +/-15V 30W |
2,922 |
|
Datasheet | STMGFW (30W) | Box | Active | Enclosed | 18V | 76V | 2 | 15V | -15V | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.06" H (117.1mm x 52.1mm x 26.9mm) | CE | - |
|

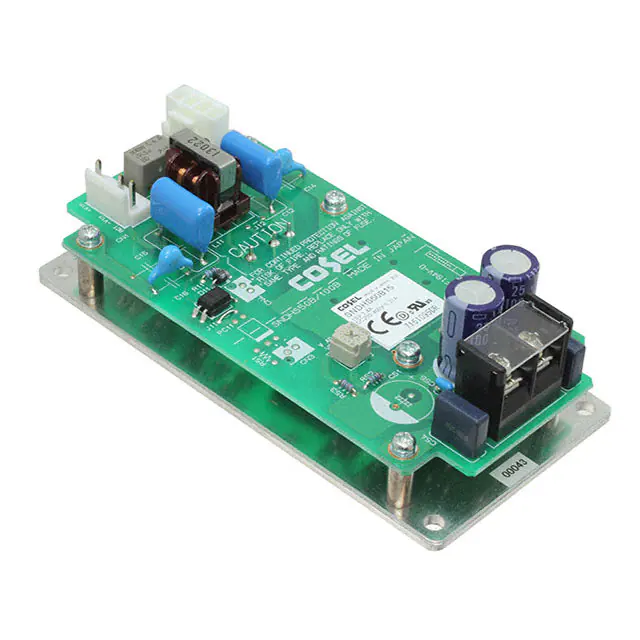

SNDHS50B05DC/DC CONVERTER 5V 50W |
2,294 |
|
Datasheet | SNDHS (50W) | Box | Active | Open Frame | 200V | 400V | 1 | 5V | - | - | - | 10A | 50W | - | ITE (Commercial) | 79% | -20°C ~ 95°C (With Derating) | Chassis Mount | 5.00" L x 2.42" W x 1.75" H (127.0mm x 61.5mm x 44.5mm) | CE, cURus | - |
|
SNDHS50B12DC/DC CONVERTER 12V 50W |
3,713 |
|
Datasheet | SNDHS (50W) | Box | Active | Open Frame | 200V | 400V | 1 | 12V | - | - | - | 4.2A | 50W | - | ITE (Commercial) | 82% | -20°C ~ 95°C (With Derating) | Chassis Mount | 5.00" L x 2.42" W x 1.75" H (127.0mm x 61.5mm x 44.5mm) | CE, cURus | - |
