DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20A24-P15-E-1DC/DC CONVERTER |
3,065 |
|
Datasheet | UltraVolt® 20A | Bulk | Active | Enclosed | 23V | 30V | 1 | 0V ~ 20kV | - | - | - | 750µA | 15W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 6.36" L x 1.71" W x 1.21" H (161.6mm x 43.4mm x 30.6mm) | CE, cUL, UL | 60950-1 |
|

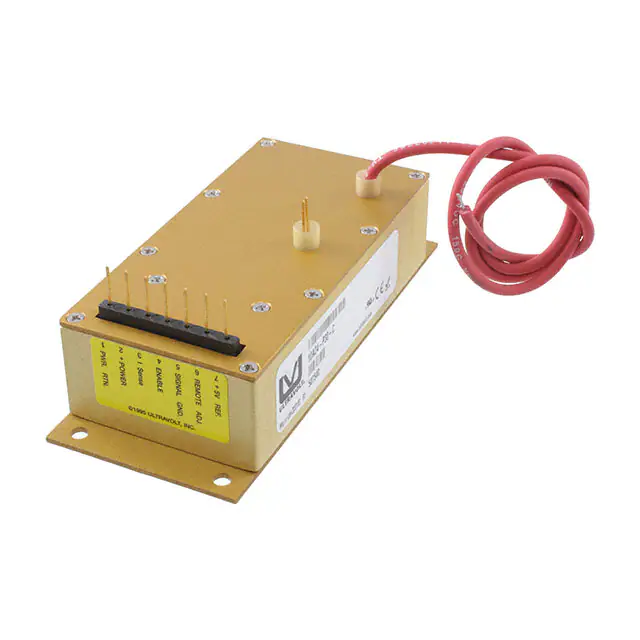

10A24-P30-CDC/DC CONVERTER 10000V 30W |
4,038 |
|
Datasheet | Ultravolt® 10A | Bulk | Active | Enclosed | 23V | 30V | 1 | 10000V | - | - | - | 3mA | 30W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 3.73" L x 1.53" W x 1.00" H (94.7mm x 38.9mm x 25.4mm) | CE, cURus | 60950-1 |
|

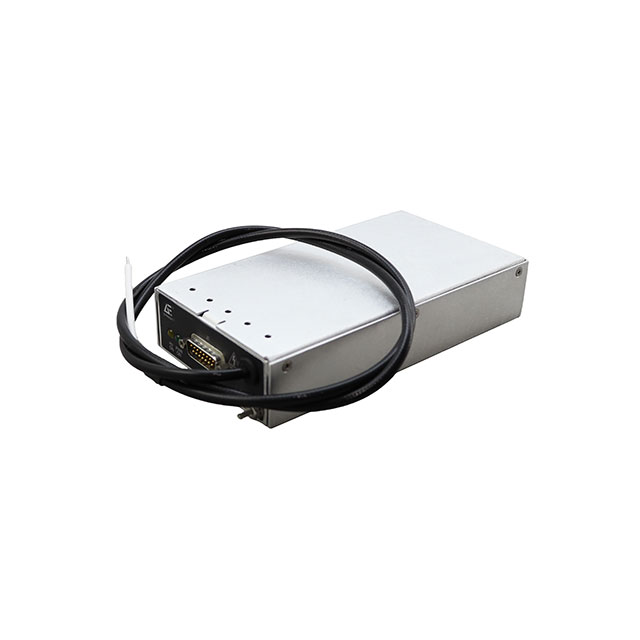

25LE24-P15DC/DC CONVERTER 25000V 15W |
1,996 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 25000V | - | - | - | 600µA | 15W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
30LE24-P15DC/DC CONVERTER 30000V 15W |
4,697 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 30000V | - | - | - | 500µA | 15W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
30LE24-P30DC/DC CONVERTER 30000V 30W |
4,864 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 30000V | - | - | - | 1mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
1HVA24-BP1-FDC/DC CONVERTER 1000V 250MW |
1,333 |
|
Datasheet | HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 1000V | - | - | - | 250µA | 250mW | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|

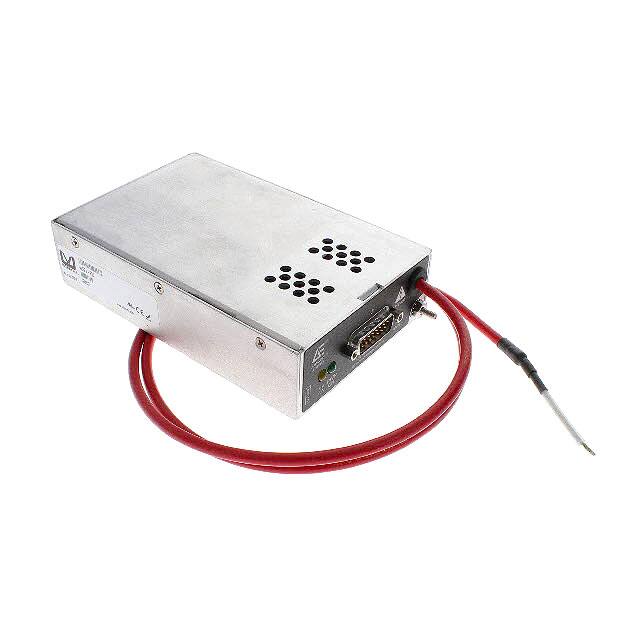

4LE24-P30DC/DC CONVERTER 4000V 30W |
3,074 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed | 23V | 30V | 1 | 4000V | - | - | - | 7.5mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.50" H (152.4mm x 96.8mm x 38.2mm) | CE, cURus | 60950-1 |
|

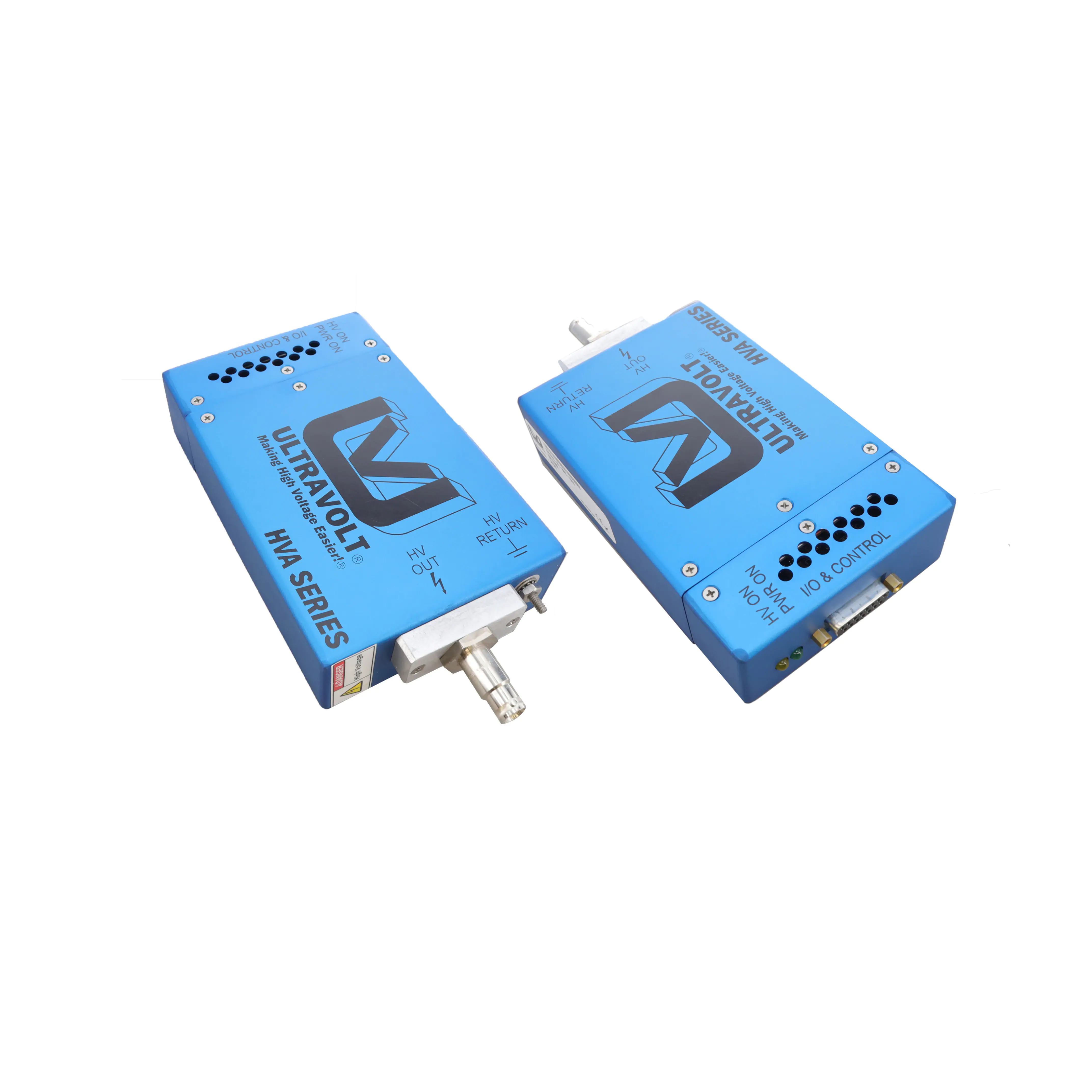

10HVA24-N1-BNC-10KVDC/DC CONVERTER 10000V 1W |
1,628 |
|
Datasheet | HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 10000V | - | - | - | 100µA | 1W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|
2HVA24-BP1-FDC/DC CONVERTER 2000V 500MW |
4,030 |
|
Datasheet | HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 2000V | - | - | - | 250µA | 500mW | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|
10HVA24-P1-FDC/DC CONVERTER 10000V 1W |
2,269 |
|
Datasheet | HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 10000V | - | - | - | 100µA | 1W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
