DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2HVA24-P1DC/DC CONVERTER 2000V 500MW |
1,800 |
|
Datasheet | HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 2000V | - | - | - | 250µA | 500mW | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|
20LE24-P4DC/DC CONVERTER 20000V 4W |
2,172 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 20000V | - | - | - | 200µA | 4W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
20LE24-N4DC/DC CONVERTER 20000V 4W |
4,460 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 20000V | - | - | - | 200µA | 4W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
20LE24-P4-AZDC/DC CONVERTER 20000V 4W |
2,784 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 20000V | - | - | - | 200µA | 4W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
25LE24-N15DC/DC CONVERTER 25000V 15W |
4,599 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 25000V | - | - | - | 600µA | 15W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|

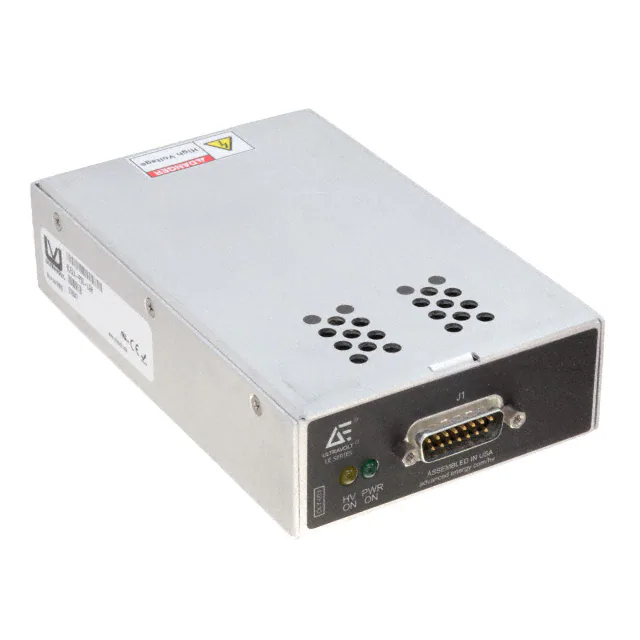

6LE24-P30-LGHDC/DC CONVERTER 6000V 30W |
1,358 |
|
Datasheet | Ultravolt® E | Box | Active | Enclosed, High Voltage | 23V | 30V | 1 | 6000V | - | - | - | 5mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.50" H (152.4mm x 96.8mm x 38.1mm) | CE, cURus | - |
|
1LE24-N4-10PPM-AZ-SHVDC/DC CONVERTER 1000V 4W |
2,980 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed | 23V | 30V | 1 | 1000V | - | - | - | 4mA | 4W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.50" H (152.4mm x 96.8mm x 38.2mm) | CE, cURus | 60950-1 |
|
20LE24-N15DC/DC CONVERTER 20000V 15W |
3,542 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 20000V | - | - | - | 750µA | 15W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
30LE24-N4-AZDC/DC CONVERTER 30000V 3.9W |
4,359 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 30000V | - | - | - | 130µA | 3.9W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|
25LE24-N30DC/DC CONVERTER 25000V 30W |
1,262 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 25000V | - | - | - | 1.2mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
