DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5HVA24-BP1DC/DC CONVERTER 5000V 1W |
3,433 |
|
Datasheet | HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | ±5000V | - | - | - | 200µA | 1W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.25" H (152.4mm x 96.8mm x 31.8mm) | - | - |
|
10HVA24-BP1DC/DC CONVERTER 10000V 1W |
1,960 |
|
Datasheet | HVA | Bulk | Active | Enclosed | 21.6V | 26.4V | 1 | 10000V | - | - | - | 100µA | 1W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 9.75" L x 6.50" W x 1.50" H (247.7mm x 165.1mm x 38.1mm) | - | - |
|
1/2A24-P20-EDC/DC CONVERTER 500V 20W |
4,574 |
|
Datasheet | Ultravolt® A | Bulk | Active | Enclosed | 23V | 30V | 1 | 500V | - | - | - | 40mA | 20W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 4.75" L x 2.00" W x 1.00" H (120.7mm x 50.8mm x 25.4mm) | CE, cURus | 60950-1; 62368-1 |
|
1/2AA24-P30-I5-EDC/DC CONVERTER 500V 30W |
4,914 |
|
Datasheet | Ultravolt® AA | Bulk | Active | Enclosed | 23V | 30V | 1 | 500V | - | - | - | 60mA | 30W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 2.97" L x 1.50" W x 0.75" H (75.4mm x 38.1mm x 19.1mm) | CE, cURus | - |
|
|
2C24-P250DC/DC CONVERTER |
1,451 |
|
Datasheet | C | Bulk | Active | Enclosed | 23V | 30V | 1 | 0 ~ 2000V | - | - | - | 125mA | 250W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 8.00" L x 4.50" W x 1.06" H (203.2mm x 114.3mm x 27.0mm) | CE, cURus | 60950-1 |
|
|
6LE24-N30-LGHDC/DC CONVERTER 6000V 30W |
3,039 |
|
Datasheet | Ultravolt® E | Box | Active | Enclosed, High Voltage | 23V | 30V | 1 | 6000V | - | - | - | 5mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 6.00" L x 3.81" W x 1.50" H (152.4mm x 96.8mm x 38.1mm) | CE, cURus | - |
|
1/2A24-P30-CDC/DC CONVERTER 500V 30W |
4,926 |
|
Datasheet | Ultravolt® A | Bulk | Active | Enclosed | 23V | 30V | 1 | 500V | - | - | - | 60mA | 30W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 4.75" L x 2.00" W x 1.00" H (120.7mm x 50.8mm x 25.4mm) | CE, cURus | 60950-1; 62368-1 |
|
10A24-P30-M-CDC/DC CONVERTER 10000V 30W |
2,104 |
|
Datasheet | Ultravolt® 10A | Bulk | Active | Enclosed | 23V | 30V | 1 | 10000V | - | - | - | 3mA | 30W | - | ITE (Commercial) | - | -40°C ~ 65°C | Chassis Mount | 3.73" L x 1.53" W x 1.00" H (94.7mm x 38.9mm x 25.4mm) | CE, cURus | 60950-1 |
|
20LE24-P30DC/DC CONVERTER 20000V 30W |
3,237 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 20000V | - | - | - | 1.5mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
|

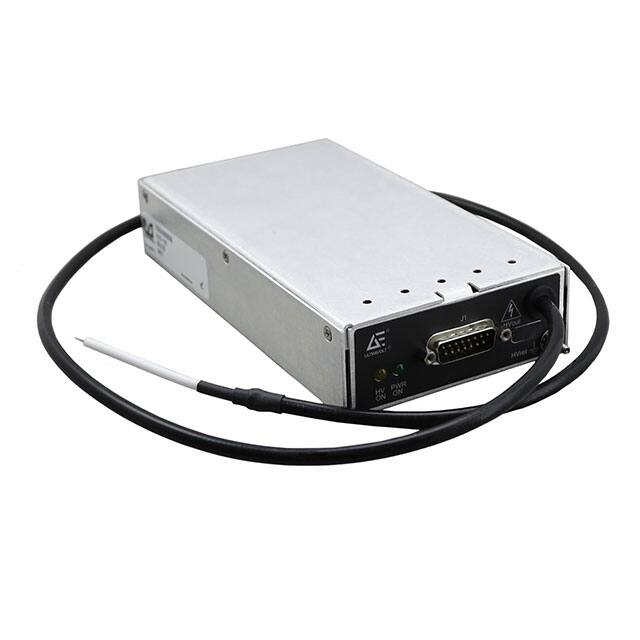

20LE24-N30DC/DC CONVERTER 20000V 30W |
3,289 |
|
Datasheet | Ultravolt® LE | Bulk | Active | Enclosed, High Voltage | 23V | 30V | 1 | 20000V | - | - | - | 1.5mA | 30W | - | ITE (Commercial) | - | 10°C ~ 45°C | Chassis Mount | 7.28" L x 3.94" W x 1.50" H (184.9mm x 100.0mm x 38.1mm) | CE, cURus | 62368-1 |
