DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHV24V1KV10MAWHigh Voltage - Non-Isolated |
2,054 |
|
Datasheet | - | Active | Enclosed | 23V | 25V | 1 | 1000V | - | - | - | 10mA | - | - | ITE (Commercial) | 75% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - | |
|
|
AHV24V5KV2MAWHigh Voltage - Non-Isolated |
4,986 |
|
Datasheet | - | Bulk | Active | Enclosed | 23V | 25V | 1 | 5000V | - | - | - | 2mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|
AHV24V1KV20MAWHigh Voltage - Non-Isolated |
1,278 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 1000V | - | - | - | 20mA | - | - | ITE (Commercial) | 75% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.63" W x 1.10" H (104.4mm x 66.8mm x 27.9mm) | - | - |
|

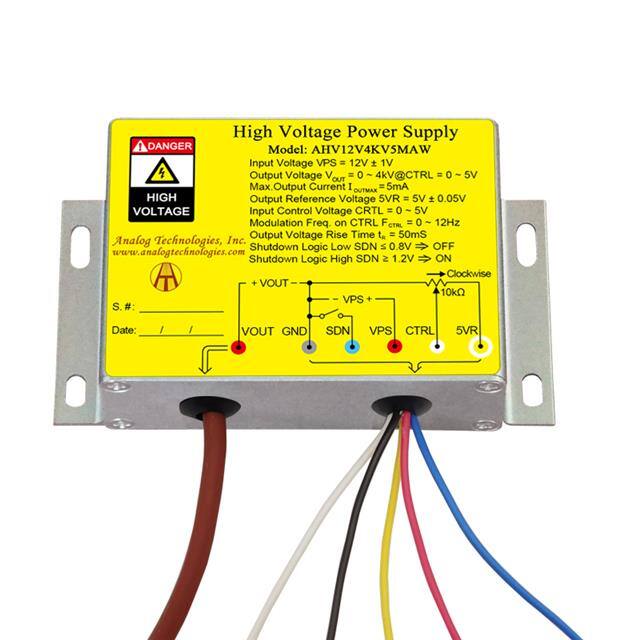

AHV12V4KV5MAWHigh Voltage - Non-Isolated |
2,409 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AHV12V10KV1MAWHigh Voltage - Non-Isolated |
4,207 |
|
Datasheet | - | Active | Enclosed | 11V | 13V | 1 | 0 ~ 10000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - | |
|
|
AHV24VN4KV5MAWHigh Voltage - Non-Isolated |
4,300 |
|
Datasheet | - | Bulk | Active | Enclosed | 23V | 25V | 1 | 0 ~ 4000V | - | - | - | 5mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 3.23" L x 2.17" W x 1.10" H (82.0mm x 55.1mm x 27.9mm) | - | - |
|

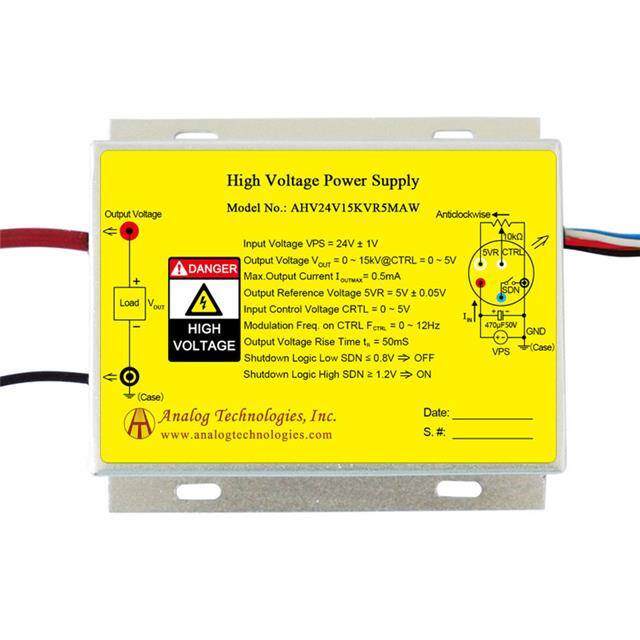

AHV24V15KVR5MAWHigh Voltage - Non-Isolated |
1,274 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 15000V | - | - | - | 500µA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 5.51" L x 3.94" W x 2.17" H (140.0mm x 100.0mm x 55.0mm) | - | - |
|

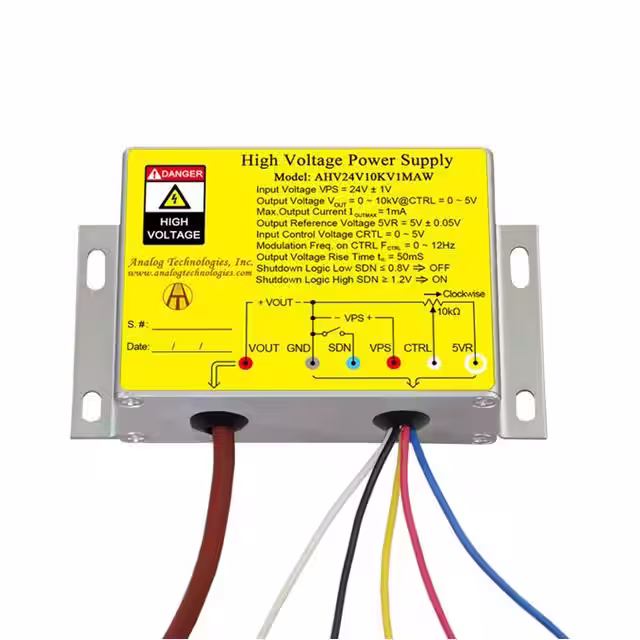

AHV24V10KV1MAWHigh Voltage - Non-Isolated |
4,470 |
|
Datasheet | - | Bulk | Active | Enclosed | 23V | 25V | 1 | 0 ~ 10000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.63" W x 1.10" H (104.4mm x 66.8mm x 27.9mm) | - | - |
|
|
AHV24V2KV10MAWHigh Voltage - Non-Isolated |
2,851 |
|
Datasheet | - | Active | Enclosed | 23V | 25V | 1 | 2000V | - | - | - | 10mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - | |
|

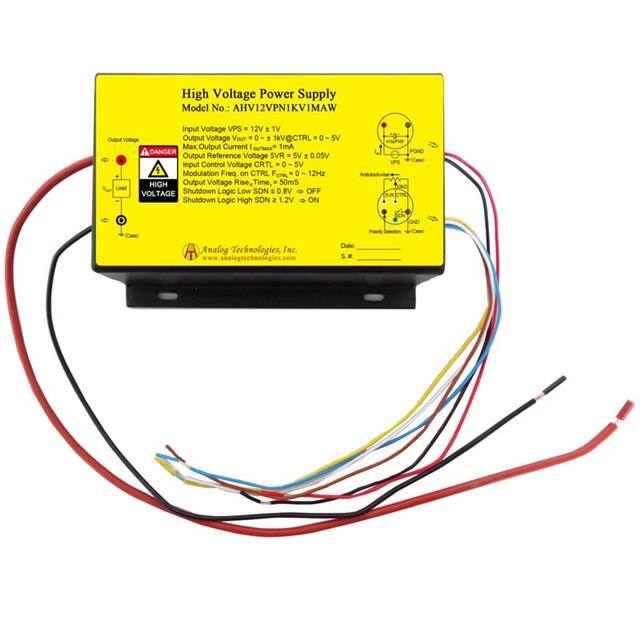

AHV12VPN1KV1MAW1kV/-1kV High Voltage - Non-Isol |
1,227 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
