DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

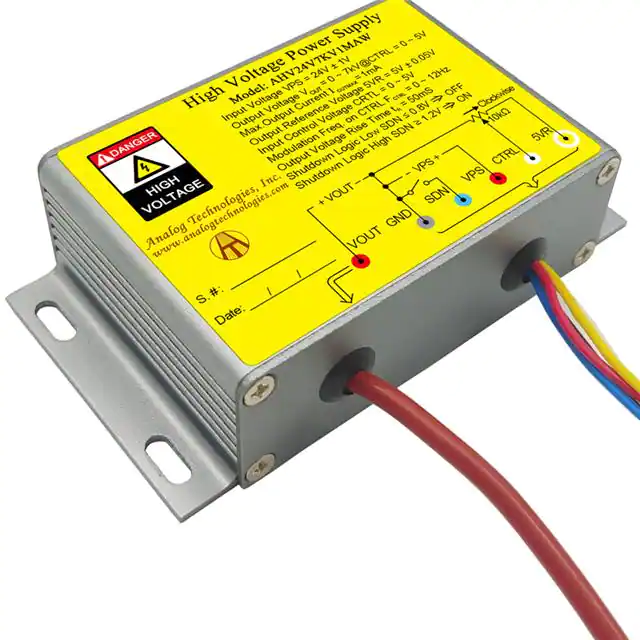

AHV24V7KV1MAWHigh Voltage - Non-Isolated |
2,464 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 7000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.63" W x 1.10" H (104.4mm x 66.8mm x 27.9mm) | - | - |
|
AHV12VN7KV1MAWHigh Voltage - Non-Isolated |
3,457 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 7000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|
AHV12V2500V5MAWHigh Voltage - Non-Isolated |
1,918 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 2500V | - | - | - | 5mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 3.23" L x 2.17" W x 1.10" H (82.0mm x 55.1mm x 27.9mm) | - | - |
|

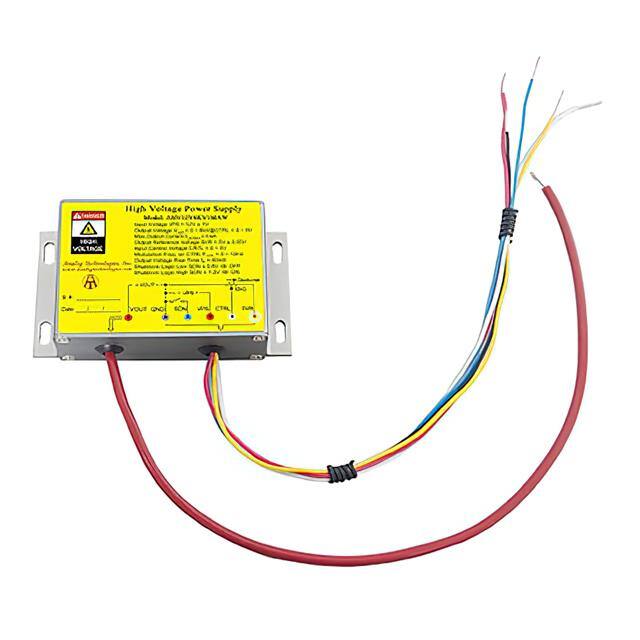

AHV12VN3KV5MAWHigh Voltage - Non-Isolated |
3,106 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 3000V | - | - | - | 5mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|

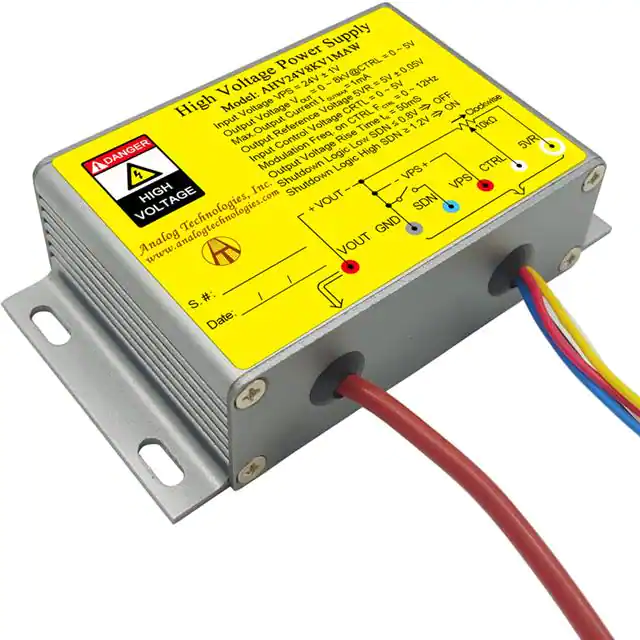

AHV24V8KV1MAWHigh Voltage - Non-Isolated |
1,683 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 8000V | - | - | - | 1mA | - | - | ITE (Commercial) | 80% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.63" W x 1.10" H (104.4mm x 66.8mm x 27.9mm) | - | - |
|

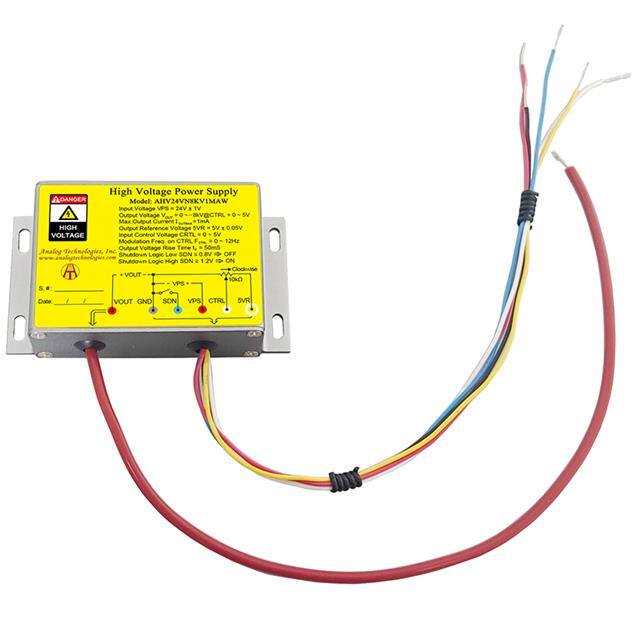

AHV24VN8KV1MAWHigh Voltage - Non-Isolated |
4,025 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 8000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.63" W x 1.10" H (104.4mm x 66.8mm x 27.9mm) | - | - |
|
|
AHV12V9KV1MAWHigh Voltage - Non-Isolated |
4,756 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 9000V | - | - | - | 1mA | - | - | ITE (Commercial) | 80% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|

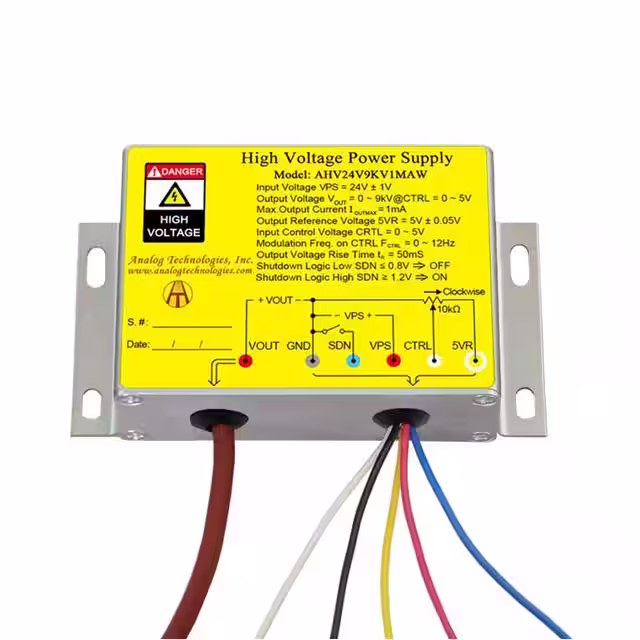

AHV24V9KV1MAWHigh Voltage - Non-Isolated |
2,035 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 9000V | - | - | - | 1mA | - | - | ITE (Commercial) | 80% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.63" W x 1.10" H (104.4mm x 66.8mm x 27.9mm) | - | - |
|
AHV12VN9KV1MAWHigh Voltage - Non-Isolated |
2,076 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 9000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|
AHV24VN9KV1MAWHigh Voltage - Non-Isolated |
1,306 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 9000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.63" W x 1.10" H (104.4mm x 66.8mm x 27.9mm) | - | - |
