DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHV12VN2KV10MAWHV 12V to -2kV 20W DC-DC Convert |
2,397 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ -2000V | - | - | - | 10mA | 20W | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|
|
AHV12VN8KV2R5MAWHV 12V to -8kV 20W DC-DC Convert |
2,016 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ -8000V | - | - | - | 2.5mA | 20W | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|

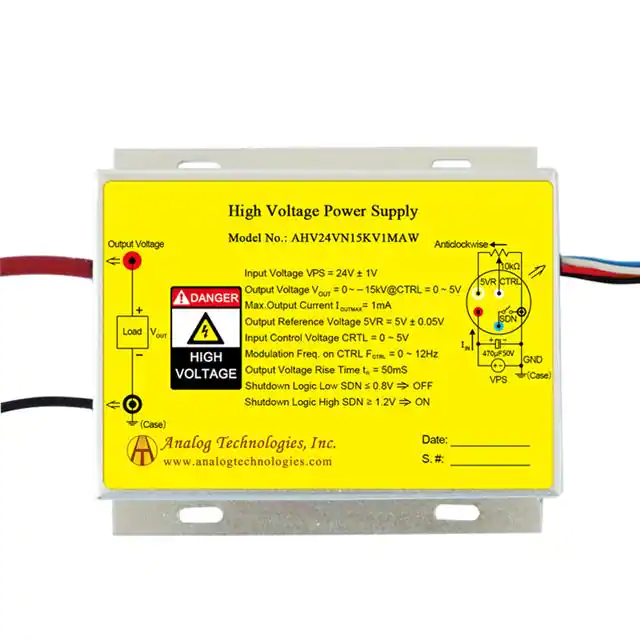

AHV24VN15KV1MAWHigh Voltage - Non-Isolated |
1,893 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 15000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 5.51" L x 3.94" W x 2.17" H (140.0mm x 100.0mm x 55.0mm) | - | - |
|
|
AHV12VN3KV10MAWHigh Voltage - Non-Isolated |
2,415 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 3000V | - | - | - | 10mA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 3.94" L x 3.54" W x 1.18" H (100.0mm x 90.0mm x 30.0mm) | - | - |
|
|
AHV24V5KV10MAWHigh Voltage - Non-Isolated |
3,549 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 5000V | - | - | - | 10mA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 5.51" L x 3.94" W x 2.17" H (140.0mm x 100.0mm x 55.0mm) | - | - |
|

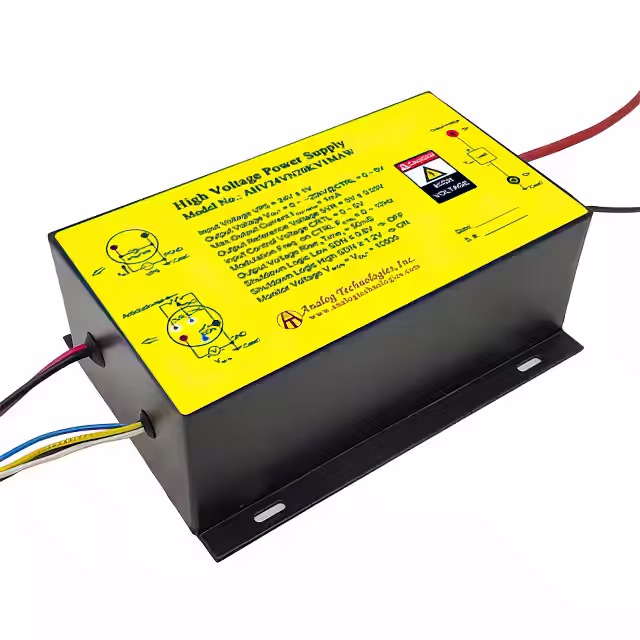

AHV24VN20KV1MAWHigh Voltage - Non-Isolated |
3,857 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 20000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 5.51" L x 3.94" W x 2.17" H (140.0mm x 100.0mm x 55.0mm) | - | - |
|
|
3838-AHV12VPN5KV2MAW-NDHV 12V to 5kV 10W DC-DC Convert |
1,395 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 5000V | - | - | - | 2mA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 5.51" L x 3.94" W x 2.17" H (140.0mm x 100.0mm x 55.0mm) | - | - |
|
AHV24V10KV2MAWHV 24V TO 10KV 20W DC-DC CONVERT |
2,733 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 10000V | - | - | - | 2mA | 20W | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 3.94" L x 2.76" W x 1.18" H (100.0mm x 70.0mm x 30.0mm) | - | - |
|
AHV24VN30KVR5MAWHigh Voltage - Non-Isolated |
4,180 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 30000V | - | - | - | 500µA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 5.51" L x 3.94" W x 2.17" H (140.0mm x 100.0mm x 55.0mm) | - | - |
|

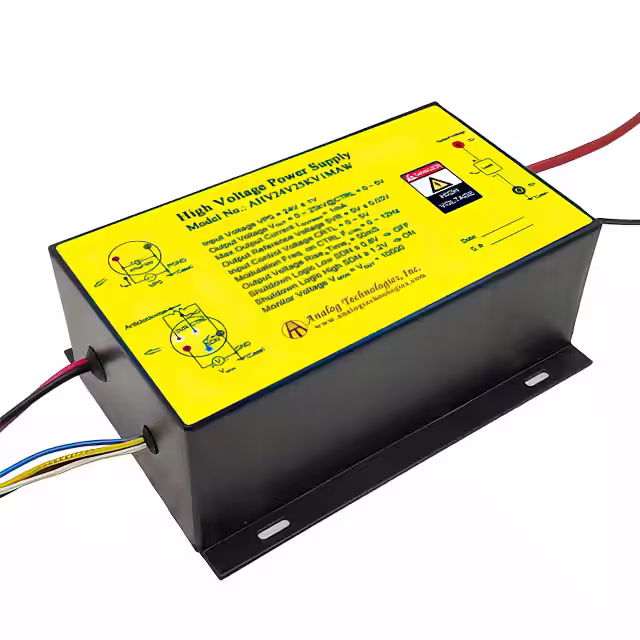

AHV24V25KV1MAWHigh Voltage - Non-Isolated |
4,478 |
|
Datasheet | - | Tape & Box (TB) | Active | Enclosed | 23V | 25V | 1 | 0 ~ 25000V | - | - | - | 1mA | - | - | ITE (Commercial) | 70% | -20°C ~ 55°C | Chassis Mount | 5.51" L x 3.94" W x 2.17" H (140.0mm x 100.0mm x 55.0mm) | - | - |
