Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
780176-01DAQ DEVICE DIGITAL INPUT |
4,379 |
|
- |
C | Box | Active | Digital Input | DAQ Device | - | - | 32 - Digital | ±10V | - | - | - | - | - | - | - |
|

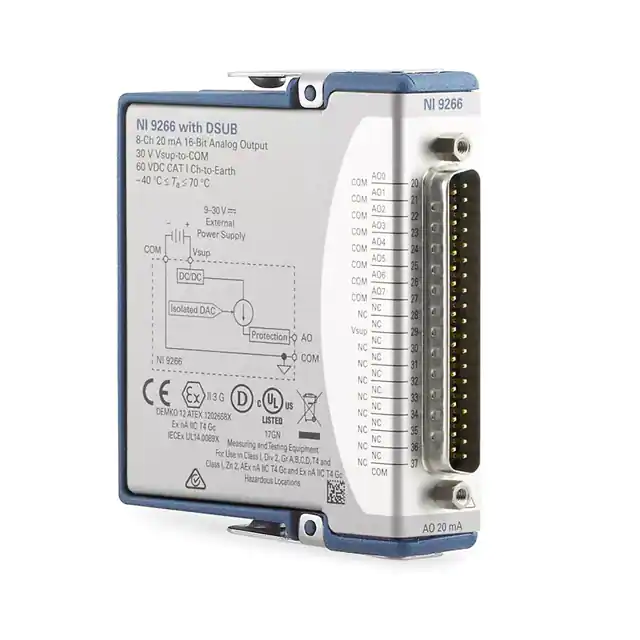

785047-02DAQ DEVICE ANALOG OUTPUT |
3,569 |
|
Datasheet | C | Box | Active | Analog Output | DAQ Device | - | - | - | - | - | 8 - Analog | - | - | - | - | - |
|
865684-01DAQ DEVICE ANALOG INPUT USB 2.0 |
4,183 |
|
Datasheet | - | Box | Active | Voltage | Modular Systems | USB 2.0 | Spring Terminal | 4 - Analog (Differential) | ±10V | 16 Bits | - | - | - | - | - | 100k |
|

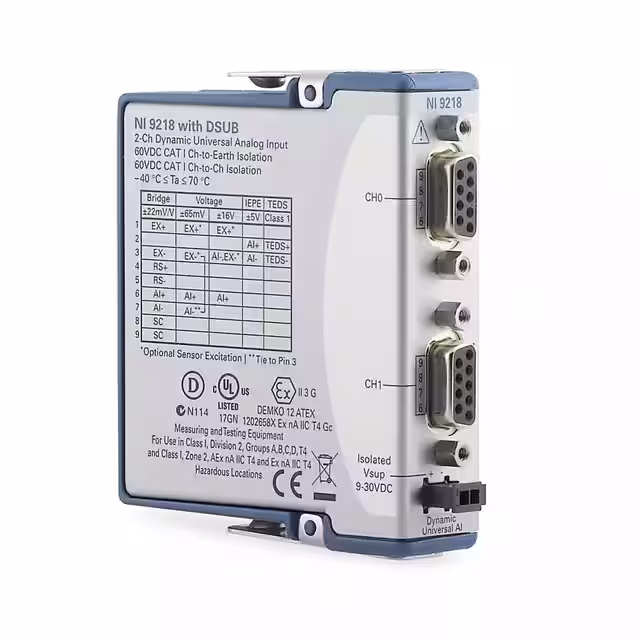

783362-01DAQ DEVICE ANALOG INPUT |
2,814 |
|
Datasheet | C | Box | Active | Analog Input | Module | - | - | 2 - Analog | 60V | - | - | - | - | - | - | 51.2k - Multiplexed |
|

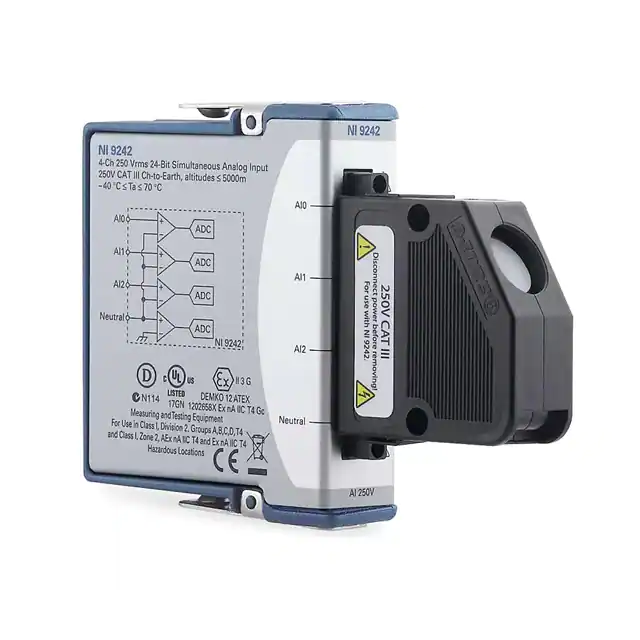

783107-01DAQ DEVICE ANALOG INPUT |
2,939 |
|
Datasheet | C | Box | Active | Voltage | Module | - | - | 4 - Analog | - | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|
865683-01DAQ DEVICE ANALOG INPUT USB 2.0 |
3,191 |
|
Datasheet | - | Box | Active | Voltage | Modular Systems | USB 2.0 | Spring Terminal | 32 - Analog (Single-Ended, 16 Differential) | ±200mV, ±1V, ±5V, ±10V | 16 Bits | - | - | - | - | - | 250k |
|
779526-01MODULE ANALOG INPUT |
3,651 |
|
Datasheet | C | Box | Active | Analog Input | Module | - | - | 32 - Analog (Single-Ended, 16 - Differential) | ±10V | 16 Bits | - | - | - | - | - | 250k - Multiplexed |
|

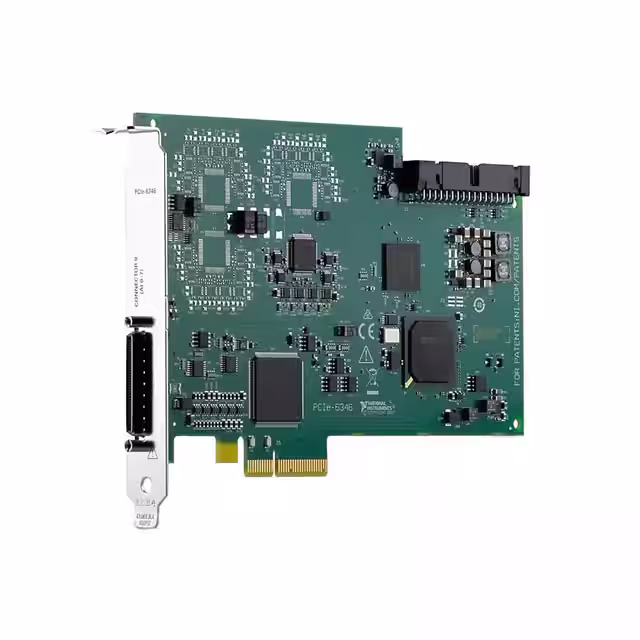

785813-01DAQ DEVICE MULTIFUNCT I/O PCIE |
2,547 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 8 - Analog (Differential) | ±11V | 16 Bits | 2 - Analog | ±10V | 16 Bits | 24 | 4 | 500k |
|
865664-01DAQ DEVICE ANALOG INPUT USB 2.0 |
4,711 |
|
Datasheet | - | Box | Active | Sound, Vibration | Modular Systems | USB 2.0 | BNC | 4 - Analog | ±5V | 24 Bits | - | - | - | - | - | 51.2k |
|
784181-01DAQ DEVICE MULTIFUNCT I/O PXIE |
3,769 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | PXIe | - | 2 - Digital | - | 16 Bits | - | - | - | - | - | - |
