Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

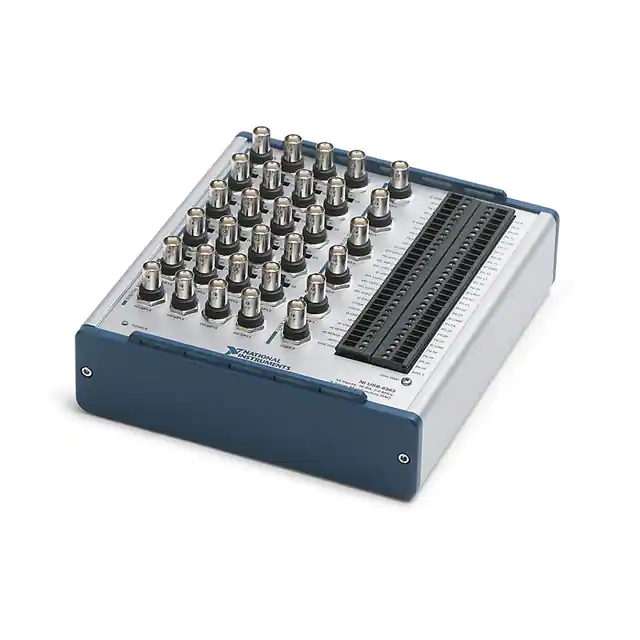

782258-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3,528 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±0.1V, ±0.2V, ±0.5V, ±1V, ±2V, ±5V, ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
782110-01DAQ DEVICE DIGITAL I/O PXI |
3,855 |
|
- |
- | Box | Active | Digital I/O | Module | PXI | - | - | - | - | - | - | - | - | - | - |
|
|
782118-01DAQ DEVICE ANALOG OUTPUT PXI |
2,533 |
|
- |
- | Box | Active | Temperature | Module | PXI | - | 20 - Analog | -200°C ~ 850°C | 24 Bits | - | - | - | - | - | 100 - Multiplexed |
|
|
782878-01DAQ DEVICE ANALOG OUTPUT PXI |
1,976 |
|
- |
- | Box | Active | Analog Output | Module | PXI | - | - | - | - | 8 - Analog | ±16V | 16 Bits | - | - | 250k - Multiplexed |
|
783610-01DAQ DEVICE ANALOG INPUT |
1,282 |
|
Datasheet | C | Box | Active | Sound, Vibration | Module | - | - | 8 - Analog | ±5V | - | - | - | - | - | - | 51.2k - Multiplexed |
|
|
783485-01DAQ DEVICE DIGITAL I/O |
4,270 |
|
- |
- | Box | Active | Digital I/O | Module | PXI | BNC | 128 - Digital | - | - | 128 - Digital | - | - | 128 | - | - |
|

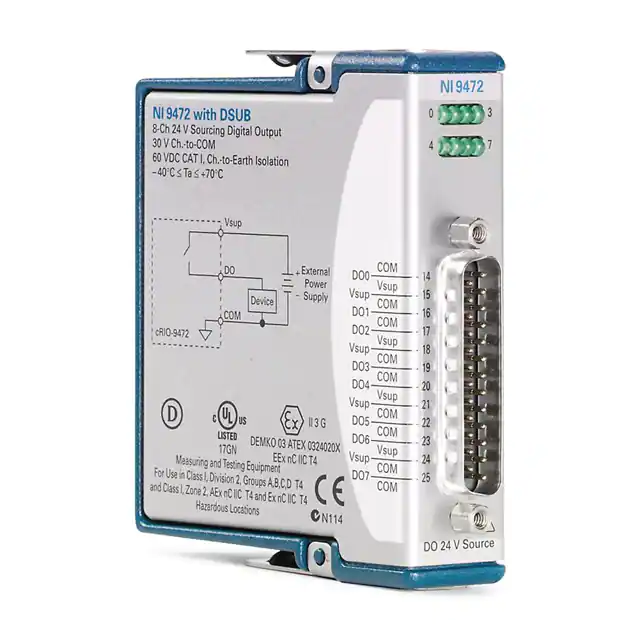

779137-01MODULE DIGITAL OUTPUT |
1,638 |
|
Datasheet | - | Box | Active | Digital Output | Module | - | - | - | - | - | 8 - Digital | 6 ~ 30V | - | - | - | - |
|
|
779004-01DAQ DEVICE DIGITAL OUTPUT |
2,602 |
|
- |
C | Box | Active | Digital Output | DAQ Device | - | Screw Terminal | - | - | - | 8 - Digital | 30V | - | - | - | - |
|
|
779136-01MODULE DIGITAL INPUT |
3,204 |
|
- |
C | Box | Active | Digital Input | Module | - | D-Sub | 8 - Digital | 24V | - | - | - | - | - | - | - |
|

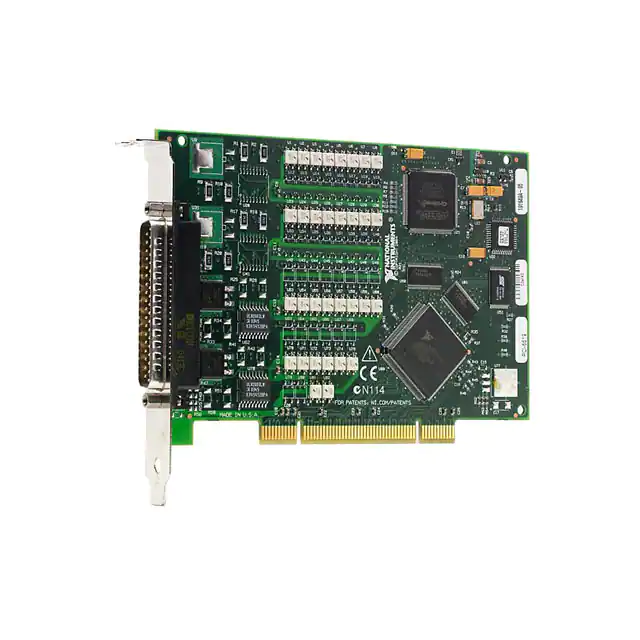

779085-01DAQ DEVICE DIGITAL I/O PCI |
4,407 |
|
Datasheet | - | Box | Active | Digital I/O | DAQ Device | PCI | D-Sub | 16 - Digital | ±30V | - | 16 - Digital | 0 ~ 30V | - | 16 | - | - |
