Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
865665-01DAQ DEVICE ANALOG INPUT USB 2.0 |
3,175 |
|
- |
- | Box | Active | Sound, Vibration | Modular Systems | USB 2.0 | Coaxial Jack | 8 - Analog | ±5V | 24 Bits | - | - | - | - | - | 51.2k |
|
868014-01DAQ DEVICE DIGITAL INPUT USB 2.0 |
3,057 |
|
Datasheet | - | Box | Active | Temperature | Modular Systems | USB 2.0 | Spring Terminal | 32 - Analog (Differential) | ±78.125mV | 24 Bits | - | - | - | - | - | 75 |
|
781444-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4,545 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1.25M - Simultaneous |
|
781100-01DAQ DEVICE MULTIFUNCTION I/O |
4,469 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | PXI | VHDCI | 8 - Analog, 96 - Digital | ±10V | 16 Bits | 8 - Analog, 96 - Digital | ±10V | 16 Bits | 96 | - | 200k - Multiplexed |
|
782264-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,381 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | VHDCI | 8 - Analog (Differential), 16 - Digital | ±1V, ±2V, ±5V, ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 2M - Simultaneous |
|
|
781445-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1,572 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 2M - Simultaneous |
|
|
785816-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1,346 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Differential) | ±11V | 16 Bits | 2 - Analog | ±10V | 16 Bits | 24 | 4 | 500k |
|

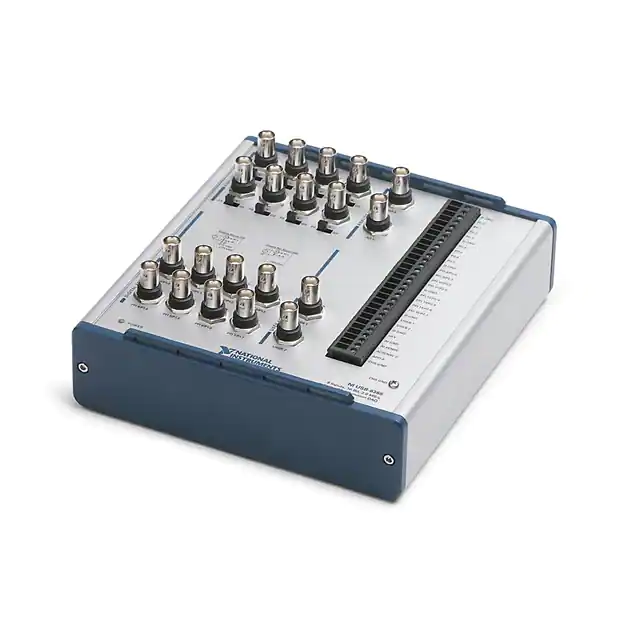

782263-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3,936 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 8 - Analog (Differential), 16 - Digital | ±1V, ±2V, ±5V, ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 2M - Simultaneous |
|
|
782357-01DAQ DEVICE DIGITAL I/O PXI |
2,236 |
|
Datasheet | - | Box | Active | Multiplexer Switch | Module | PXI | BNC | - | - | - | - | - | - | - | - | - |
|
|
784471-01DAQ DEVICE ANALOG INPUT |
2,372 |
|
- |
- | Box | Active | Analog Input | DAQ Device | - | BNC | 32 - Analog | ±15V | 28 Bits | - | - | - | - | - | - |
