Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

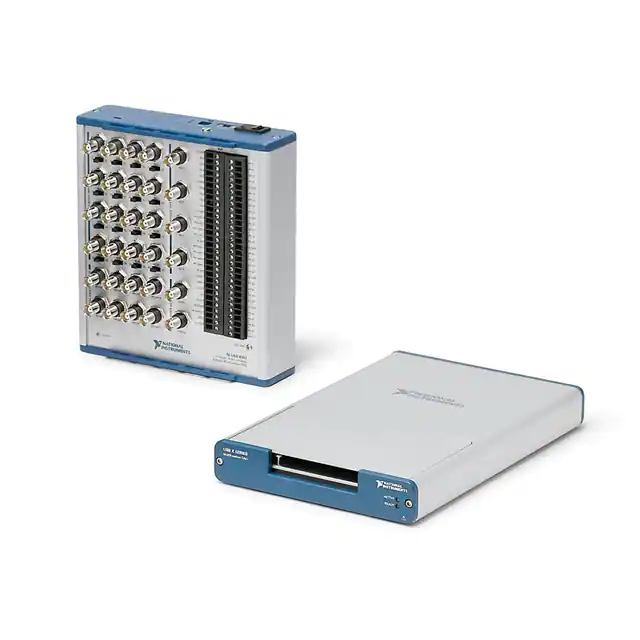

782253-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,256 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 32 - Analog, 16 - Digital | ±0.2V, ±1V, ±5V, ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 48 | 4 | 500k - Multiplexed |
|
782615-02DAQ DEVICE ANALOG INPUT |
1,539 |
|
Datasheet | C | Box | Active | Voltage | DAQ Device | - | - | 16 - Analog | ±10V | 16 Bits | - | - | - | - | - | 100k - Simultaneous |
|
782259-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3,230 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | VHDCI | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±0.1V, ±0.2V, ±0.5V, ±1V, ±2V, ±5V, ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
781441-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4,161 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
789884-01USB-6453, 20-BIT, 1MS/S/CH (32AI |
3,583 |
|
- |
mioDAQ | Box | Active | Multifunction I/O | DAQ Device | USB C | Spring Terminal | 32 - Analog (Single-Ended, 16 - Differential) | ±200mV, ±2.5V, ±5V, ±10V | 20 Bits | 4 - Analog | ±10V | 16 Bits | 16 | 4 | 1M - Simultaneous |
|
|
781443-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3,386 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
779680-03MODULE ANALOG INPUT |
4,126 |
|
- |
C | Box | Active | Analog Input | Module | - | BNC | 4 - Analog | ±5V | 24 Bits | - | - | - | - | - | 51.2k - Simultaneous |
|

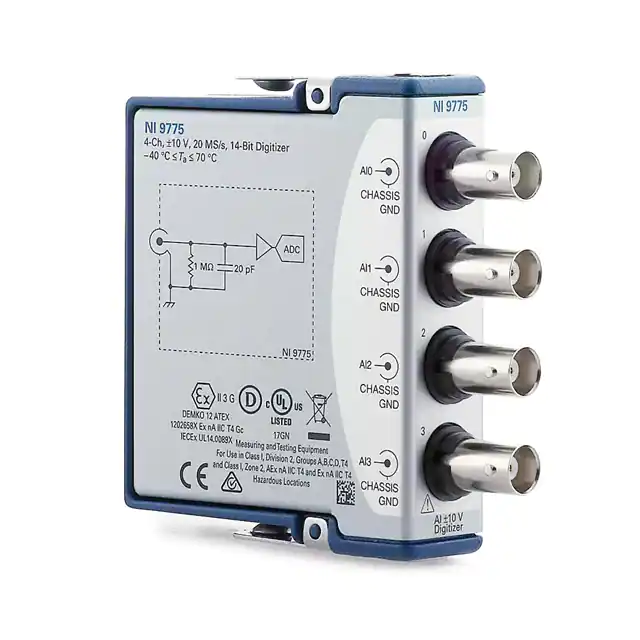

784539-01DAQ DEVICE ANALOG INPUT |
2,137 |
|
Datasheet | C | Box | Active | Analog Input | DAQ Device | - | - | 4 - Analog | ±10V | 14 Bits | - | - | - | - | - | - |
|
|
781348-01DAQ DEVICE ANALOG INPUT |
4,385 |
|
- |
- | Box | Active | Temperature | Module | - | - | 32 - Analog | ±80mV | 24 Bits | - | - | - | - | - | 90 - Multiplexed |
|
|
781056-01DAQ DEVICE MULTIFUNCT I/O PXIE |
4,547 |
|
Datasheet | - | Box | Active | Multifunction I/O | Module | PXIe | - | 32 - Digital (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
