Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

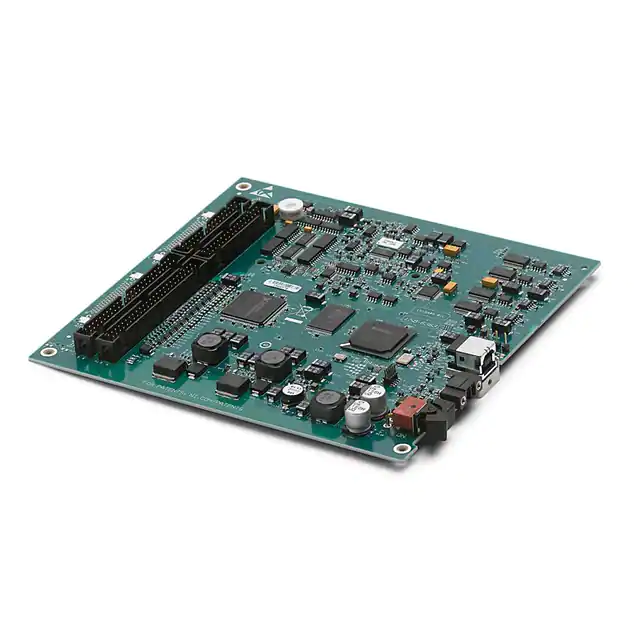

782252-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1,284 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Generic (OEM) | 32 - Analog, 16 - Digital | ±0.2V, ±1V, ±5V, ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 48 | 4 | 500k - Multiplexed |
|
783589-01DAQ DEVICE ANALOG INPUT |
3,260 |
|
Datasheet | C | Box | Active | Current | Module | - | Screw Terminal | 3 - Analog | ±147A | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|
780927-02DAQ DEVICE ANALOG OUTPUT |
2,469 |
|
Datasheet | C | Box | Active | Voltage | Module | - | - | - | - | - | 16 - Analog | ±10V | 16 Bits | - | - | 25k - Simultaneous |
|
781440-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3,494 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1M - Multiplexed |
|

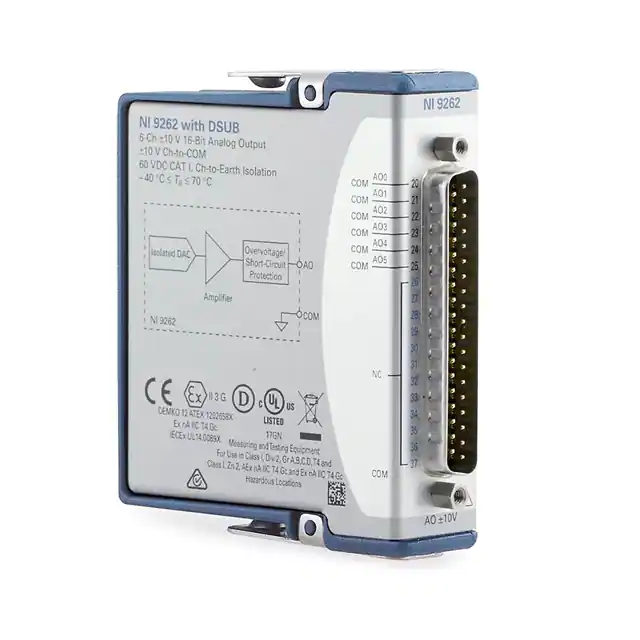

785503-01DAQ DEVICE ANALOG OUTPUT |
1,194 |
|
Datasheet | - | Box | Active | Analog Output | DAQ Device | - | - | - | - | - | 6 - Analog | ±10V | - | - | - | - |
|

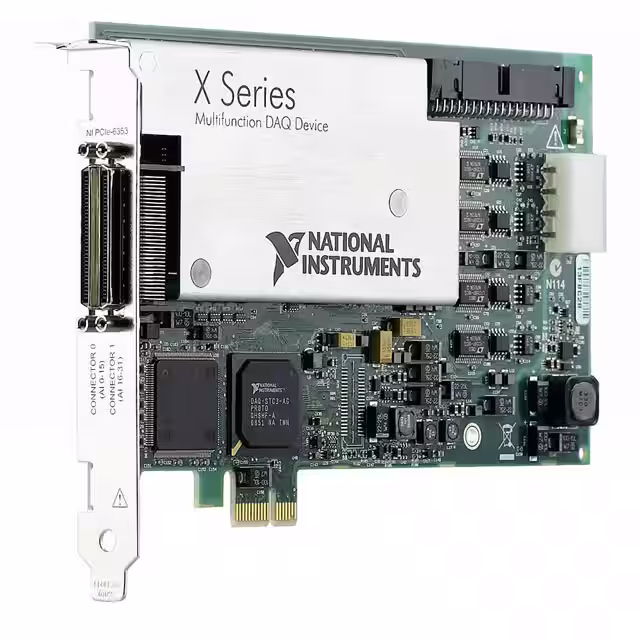

781049-01DAQ DEVICE MULTIFUNCT I/O PCIE |
4,359 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
780695-01DAQ DEVICE MULTIFUNCTION I/O PXI |
4,430 |
|
- |
- | Box | Active | Multifunction I/O | Module | PXI | - | 32 - Digital | - | - | 32 - Digital | - | - | 32 | - | - |
|

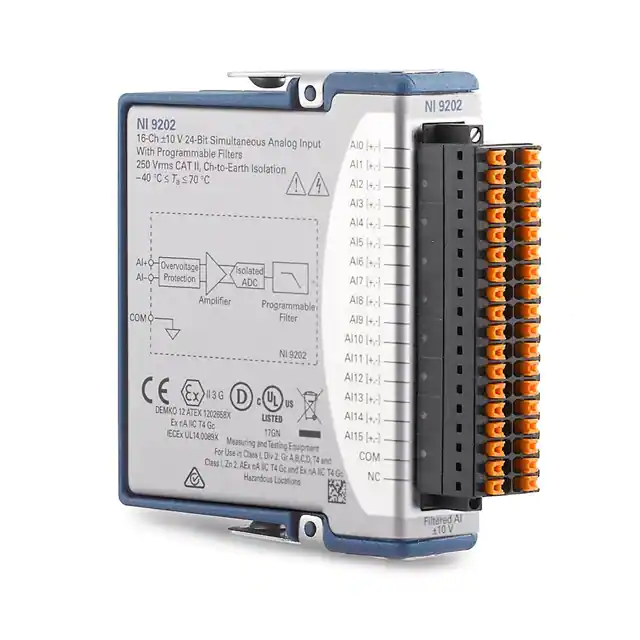

784400-01DAQ DEVICE ANALOG INPUT |
2,991 |
|
Datasheet | C | Box | Active | Analog Input | DAQ Device | - | - | 16 - Analog | ±10V | 24 Bits | - | - | - | - | - | - |
|

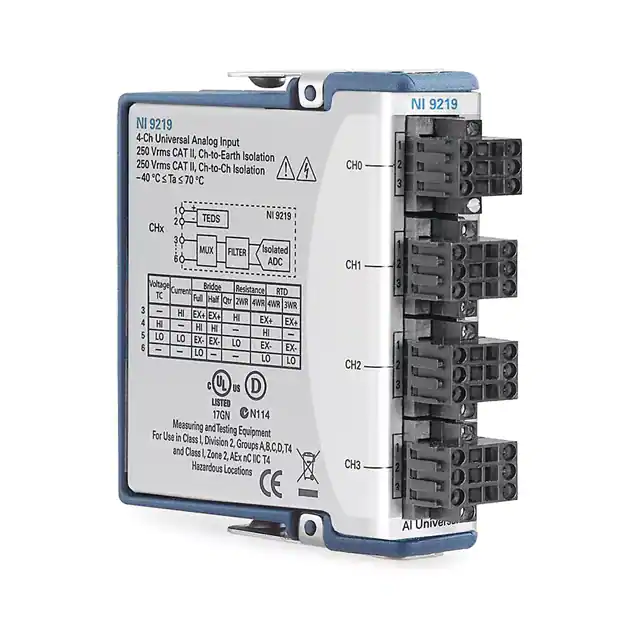

779781-02MODULE ANALOG INPUT |
1,063 |
|
Datasheet | C | Box | Active | Analog Input | Module | - | - | 4 - Analog | ±60V | 24 Bits | - | - | - | - | - | 100 - Multiplexed |
|

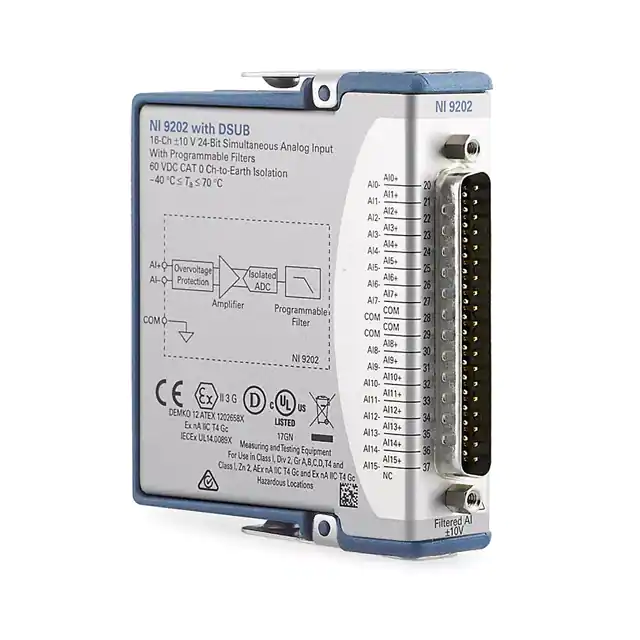

784399-01DAQ DEVICE ANALOG INPUT |
3,186 |
|
Datasheet | C | Box | Active | Analog Input | DAQ Device | - | - | 16 - Analog | ±10V | 24 Bits | - | - | - | - | - | - |
