Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

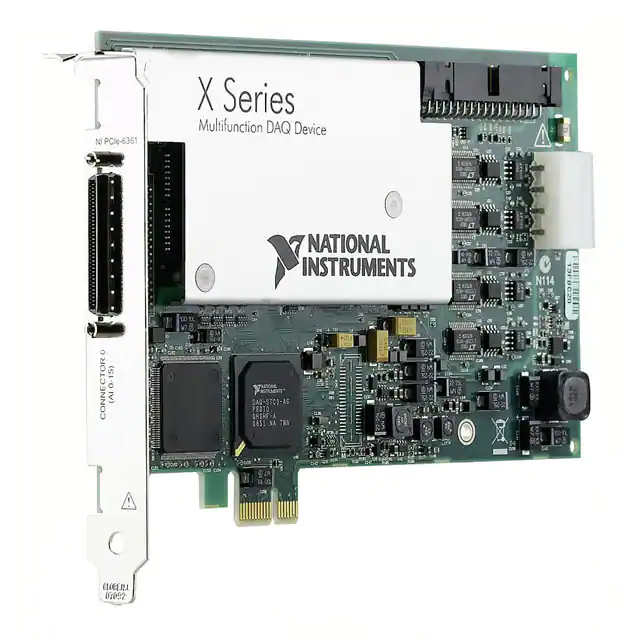

781050-01DAQ DEVICE MULTIFUNCT I/O PCIE |
2,871 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1M - Multiplexed |
|

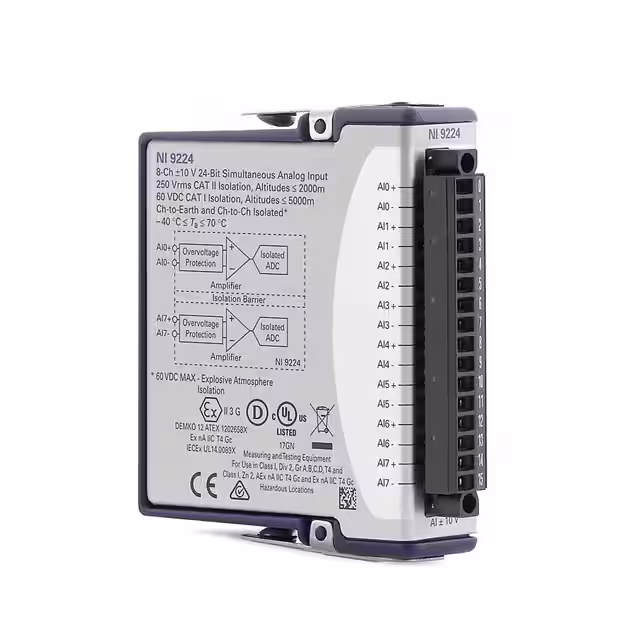

783862-01DAQ DEVICE ANALOG INPUT |
4,133 |
|
- |
C | Box | Active | Voltage | Module | - | - | 8 - Analog (Differential) | ±10V | 24 Bits | - | - | - | - | - | 1k - Simultaneous |
|

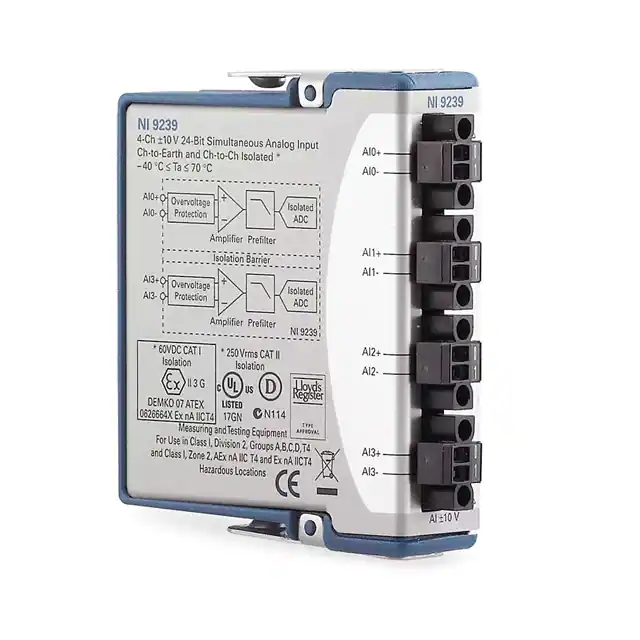

779593-01MODULE VOLTAGE ANALOG INP |
3,043 |
|
- |
C | Box | Active | Voltage | Module | - | - | 4 - Analog | ±10V | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|

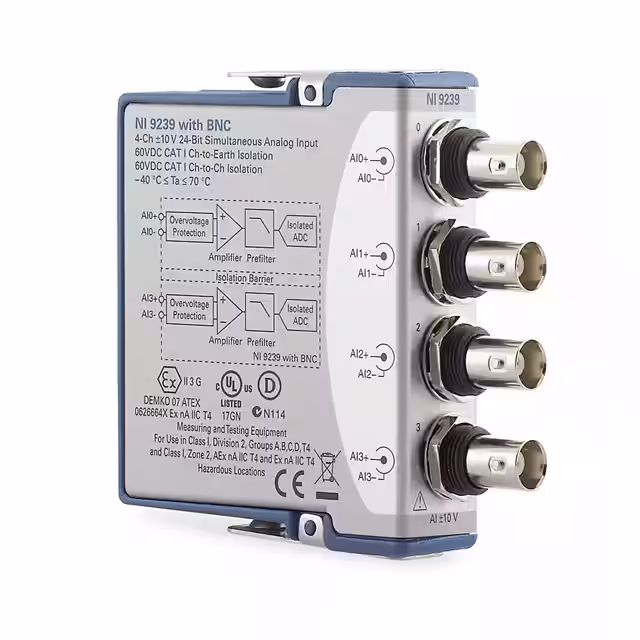

780181-01MODULE ANALOG INPUT |
1,359 |
|
- |
C | Box | Active | Analog Input | Module | - | - | 4 - Analog (Differential) | ±10V | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|

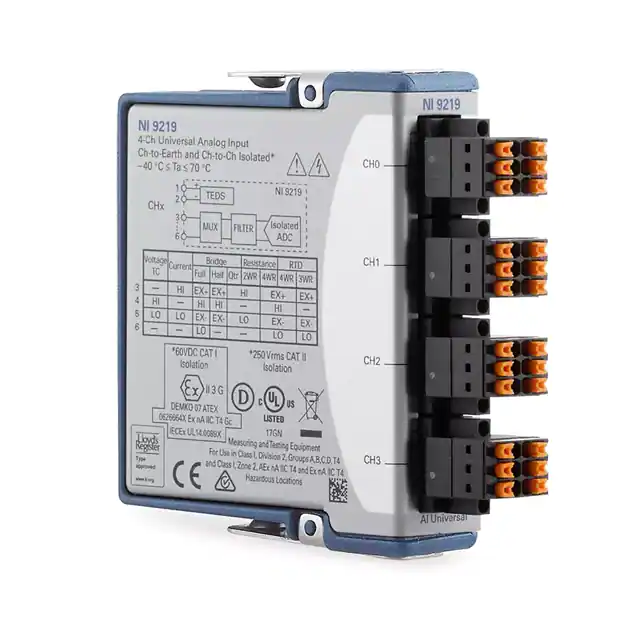

785994-01DAQ DEVICE ANALOG INPUT |
2,686 |
|
Datasheet | C | Box | Active | Analog Input | DAQ Device | - | - | 4 - Analog | - | - | - | - | - | - | - | - |
|

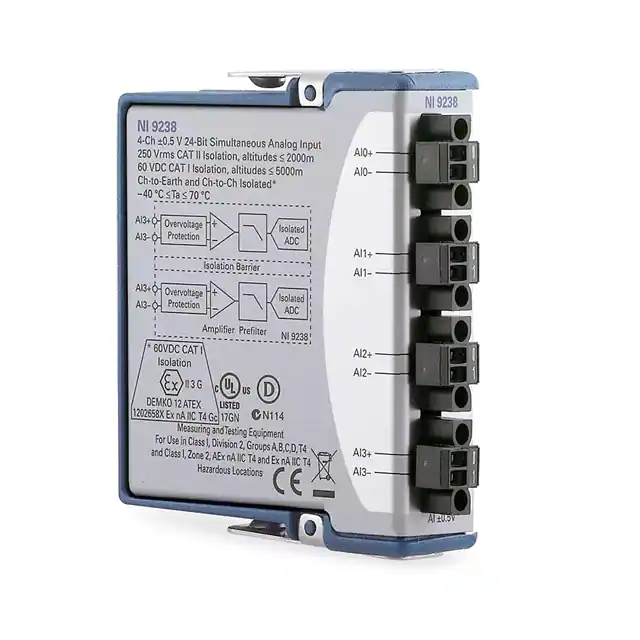

783311-01DAQ DEVICE ANALOG INPUT |
1,025 |
|
Datasheet | C | Box | Active | Voltage | Module | - | - | 4 - Analog (Differential) | - | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|
782352-01DAQ DEVICE COUNTER/TIMER PXI |
2,649 |
|
- |
- | Box | Active | Counter/Timer | Module | PXI | VHDCI | 40 - Digital | - | 32 Bits | 32 - Digital | - | 32 Bits | 32 | 8 | - |
|

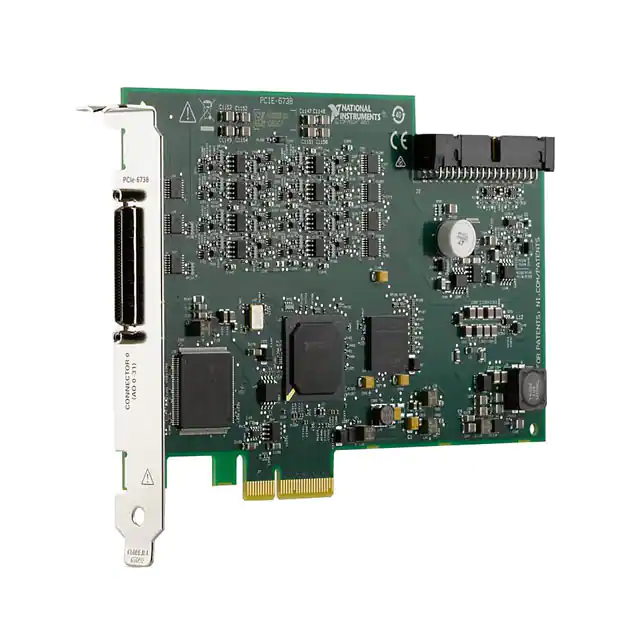

785822-01DAQ DEVICE ANALOG OUTPUT PCIE |
2,968 |
|
- |
- | Box | Active | Analog Output | DAQ Device | PCIe | VHDCI | - | - | - | 32 - Analog | ±10V | 16 Bits | - | 4 | - |
|

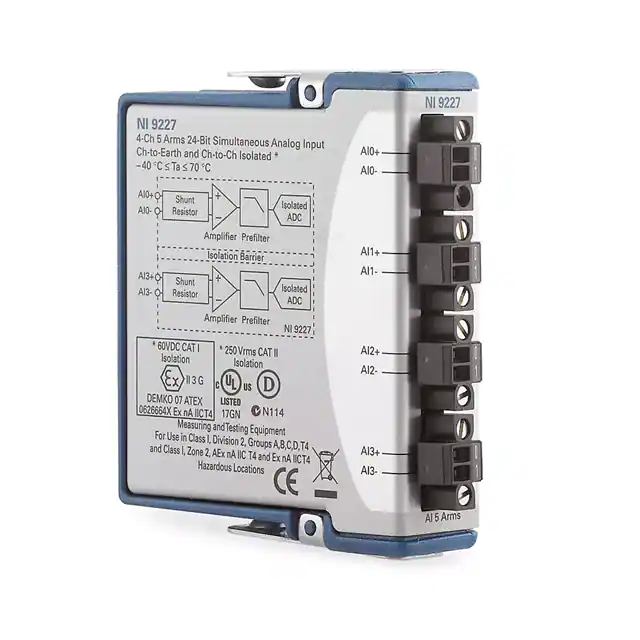

781099-01DAQ DEVICE ANALOG INPUT |
3,277 |
|
Datasheet | C | Box | Active | Analog Input | Module | - | - | 4 - Analog | 5A | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|

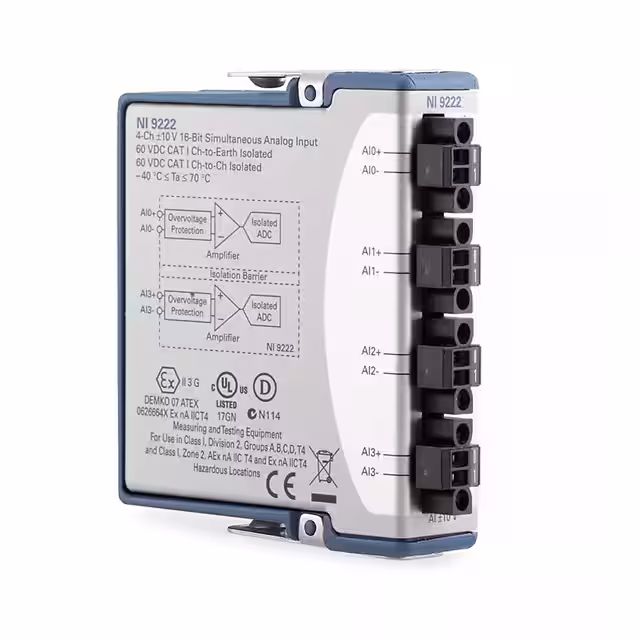

781397-01DAQ DEVICE ANALOG INPUT |
4,884 |
|
Datasheet | C | Box | Active | Voltage | Module | - | - | 4 - Analog | ±10V | 16 Bits | - | - | - | - | - | 500k - Multiplexed |
