Process, Temperature
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Input Range | Output Type | Control Method | Communications | Number of Characters Per Row | Display Type | Display Characters - Height | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5CC-QX3D5M-001CONTROL TEMP/PROC 24V PANEL MT |
3,362 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Heater Fault Detection |
|
E5EC-QX4A5M-010CONTROL TEMP/PROC RELAY/VOLT OUT |
4,893 |
|
Datasheet | E5EC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Heater Fault Detection |
|
E5CS-R1KJU-W AC100-240CONTROL TEMP RELAY OUT 100-240V |
1,380 |
|
Datasheet | E5CS | Bulk | Active | Temperature Controller (Type J, K, L) | 0°C ~ 999°C | Relay (2) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP50 - Dust Protected | Sensor Fault Detection |
|
|
E5CC-CX1AUM-000CONTROL TEMP/PROCESS 100-240V |
3,223 |
|
Datasheet | E5CC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog, Relay | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-CX2DUM-000CONTROL TEMP/PROC 24V PANEL MT |
2,973 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog, Relay (2) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|

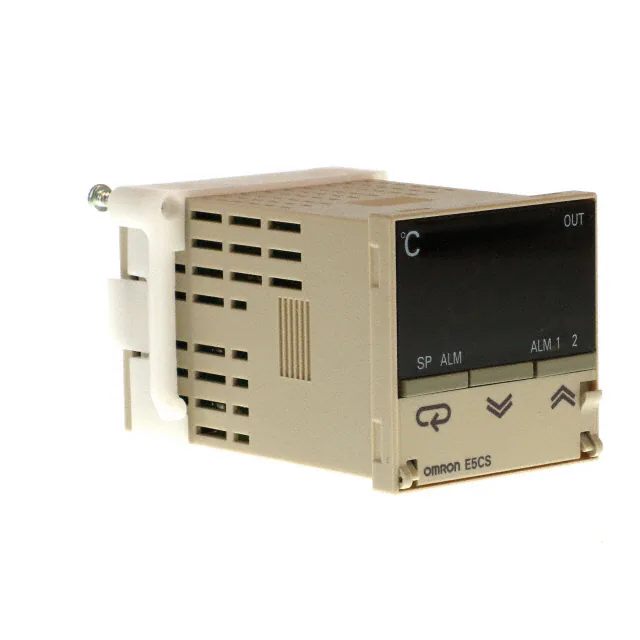

E5CS-Q1KJU-W AC100-240CONTROL TEMP 100-240V PANEL MT |
4,200 |
|
Datasheet | E5CS | Bulk | Active | Temperature Controller (Type J, K, L) | 0°C ~ 999°C | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP50 - Dust Protected | Sensor Fault Detection |
|
|
E5CC-QX2DBM-006CONTROL TEMP RELAY/VOLT OUT 24V |
3,078 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-TRX3A5M-000CONTROL TEMP/PROCESS 100-240V |
1,792 |
|
Datasheet | E5CC-T | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-RX2ABM-002CONTROL TEMP/PROCESS 100-240V |
2,728 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | Heater Fault Detection |
|
E5EC-RR2ASM-800CONTROL TEMP RELAY OUT 100-240V |
3,264 |
|
Datasheet | E5EC | Box | Active | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (6) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Heater Fault Detection |
