Process, Temperature
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Input Range | Output Type | Control Method | Communications | Number of Characters Per Row | Display Type | Display Characters - Height | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5CC-CX3A5M-000CONTROL TEMP/PROCESS 100-240V |
2,362 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog, Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5DC-RX2DBM-000CNTRL TEMP RLY OUT DIN 24VAC/VDC |
3,902 |
|
Datasheet | E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Spring Terminal | IP20 | - |
|
E5GC-QX1ACM-015CONTROL TEMP/PROC RELAY/VOLT OUT |
4,848 |
|
Datasheet | E5GC | Bulk | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5AC-RX4A5M-000CONTROL TEMP/PROCESS 100-240V |
1,401 |
|
Datasheet | E5AC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (5) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-QX3D5M-006CONTROL TEMP/PROC 24V PANEL MT |
4,963 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|

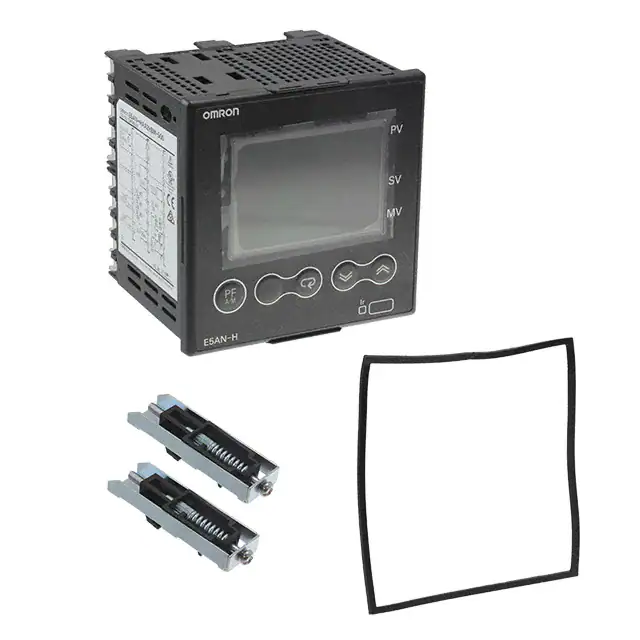

E5AN-HAA2HBM-500 AC100-240CONTROL TEMP/PROCESS 100-240V |
2,299 |
|
Datasheet | E5AN-H | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Option Cards Available | On/Off, Proportional (PID) | Option Cards Available | 5, 5, 4 | LCD - Tri Color Characters, Backlight | 0.622" (15.80mm), 0.374" (9.50mm), 0.268" (6.80mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Heater Fault Detection, Option Cards Available |
|
E5EC-QQ4D5M-009CONTROL TEMP/PROC 24V PANEL MT |
1,271 |
|
Datasheet | E5EC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4), Voltage (External SSR) (2) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) | 24VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Heater Fault Detection |
|
E5L-A 0-100CONTROL TEMP RELAY OUT 100-240V |
2,292 |
|
Datasheet | E5L | Bulk | Active | Temperature Controller (Thermistor, NTC) | 0°C ~ 100°C | Relay | On/Off | - | - | Analog Dial | - | 100 ~ 240VAC | Rectangular - 45.00mm x 35.00mm | Socketable | Plug In, 14 Pin | IP40 | - |
|

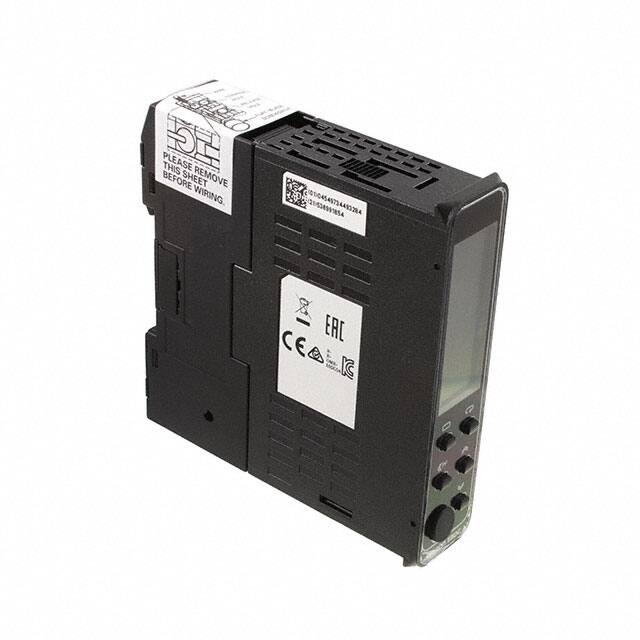

E5DC-RX2ABM-000CNTRL TEMP RLY OUT 100-240VAC |
1,947 |
|
Datasheet | E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 100 ~ 240VAC | - | DIN Rail | Spring Terminal | IP20 | - |
|
E5C2-R20JW AC100240 32572CONTROL TEMP RELAY OUT 100-240V |
2,041 |
|
Datasheet | E5C2 | Bulk | Active | Temperature Controller (Type J) | 0°C ~ 300°C, 32°F ~ 572°F | Relay | On/Off | - | - | Analog Dial | - | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | IP40 | Sensor Fault Detection |
