Process, Temperature
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Input Range | Output Type | Control Method | Communications | Number of Characters Per Row | Display Type | Display Characters - Height | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

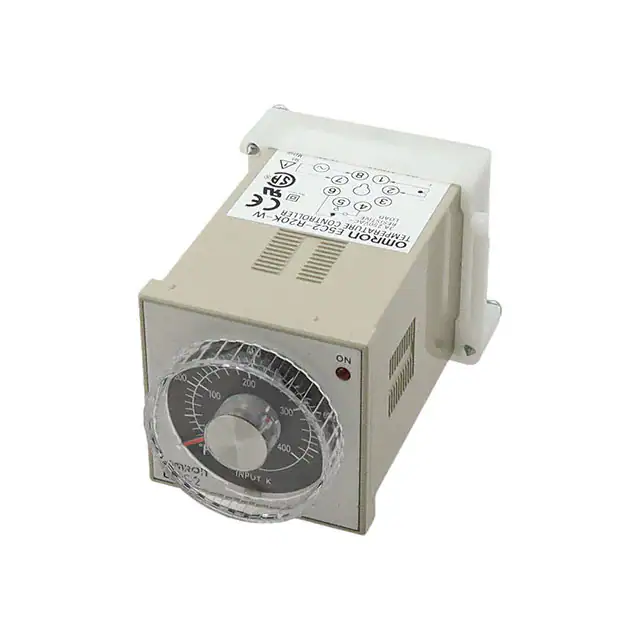

E5C2-R20KW AC100240 32752CONTROL TEMP RELAY OUT 100-240V |
3,365 |
|
Datasheet | E5C2 | Bulk | Active | Temperature Controller (Type K) | 0°C ~ 300°C, 32°F ~ 752°F | Relay | On/Off | - | - | Analog Dial | - | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | IP40 | Sensor Fault Detection |
|
E5EC-RX2ABM-000CONTROL TEMP/PROCESS 100-240V |
1,701 |
|
Datasheet | E5EC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5DC-QX2DBM-000CNTRL TEMP SSR OUT DIN 24VAC/VDC |
1,414 |
|
Datasheet | E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 24VAC/DC | - | DIN Rail | Spring Terminal | IP20 | - |
|
E5GC-QX1ACM-308CONTROL TEMP/PROC RELAY/VOLT OUT |
1,211 |
|
Datasheet | E5GC | Box | Active | Process, Temperature Controller (RTD, Type B, C, E, J, K, L, N, PLII, R, S, T, U, W) | 0 ~ 20mA, 0 ~ 10V | Solid State | - | - | - | - | - | 100 ~ 240VAC | - | - | Screw Terminal | - | - |
|

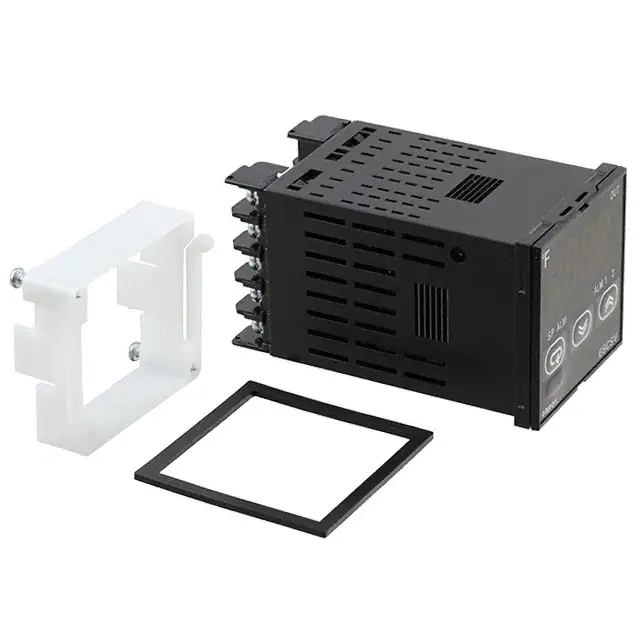

E5CSV-R2T-F AC100-240CONTROL TEMP RELAY OUT 100-240V |
3,580 |
|
Datasheet | E5CSV | Bulk | Active | Temperature Controller (RTD, Type J, K, L, N, R, T, U) | -99°C ~ 1700°C | Relay (3) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|

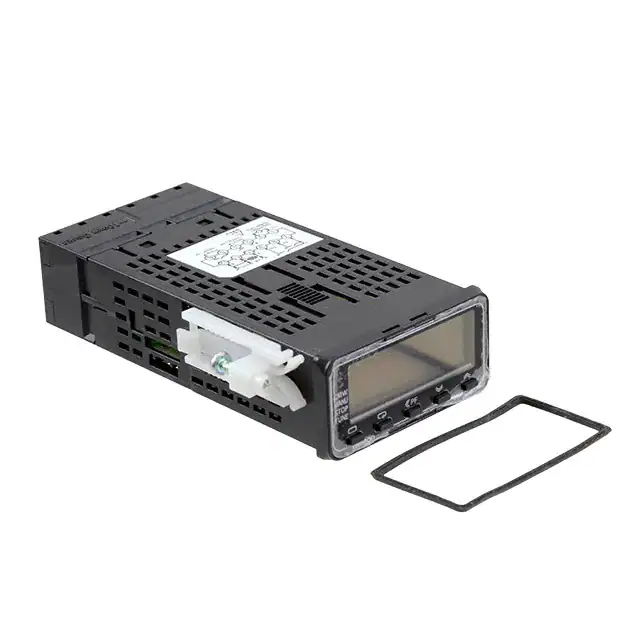

E5GC-QX1ACM-000CONTROL TEMP/PROC RELAY/VOLT OUT |
2,009 |
|
Datasheet | E5GC | Box | Active | Process, Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.413" (10.50mm), 0.197" (5.00mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5DC-QX2ASM-000CONTROL TEMP/PROC RELAY/VOLT OUT |
2,306 |
|
Datasheet | E5DC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 100 ~ 240VAC | - | DIN Rail | Screw Terminal | IP20 | - |
|
E5CC-QX2ABM-001CONTROL TEMP/PROCESS 100-240V |
4,504 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Heater Fault Detection |
|
|
E5CC-QX2DUM-000CONTROL TEMP/PROC 24V PANEL MT |
2,489 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-QX2ABM-000CONTROL TEMP/PROCESS 100-240V |
2,601 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | - |
