Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

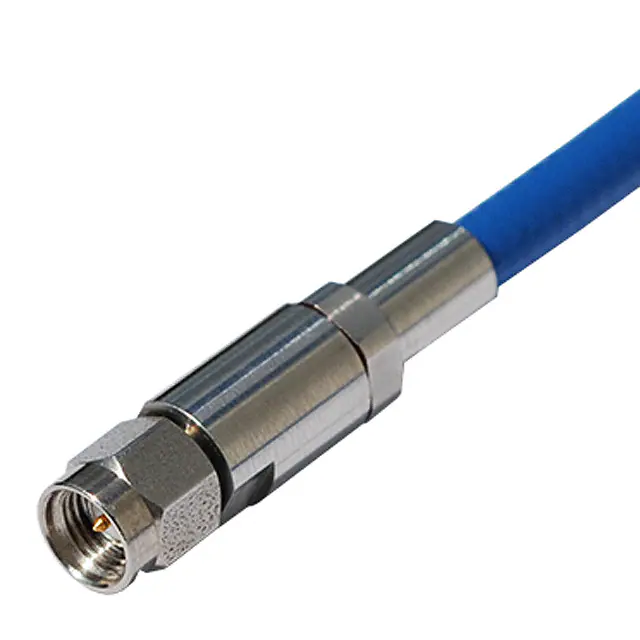

CCSMA-MM-LL142-48COAX CBL SMA TO SMA |
3,954 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 4.95mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA-MM-SS402-72COAX CBL SMA TO SMA |
1,081 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | 4.14mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -45°C ~ 85°C | - | - |
|
|
CCSMA-MM-SS402-120COAX CBL SMA TO SMA |
3,238 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | 4.14mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -45°C ~ 85°C | - | - |
|
CCSMA-MFB-RG174-12COAX CBL SMA TO SMA |
3,768 |
|
Datasheet | CCSMA | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|

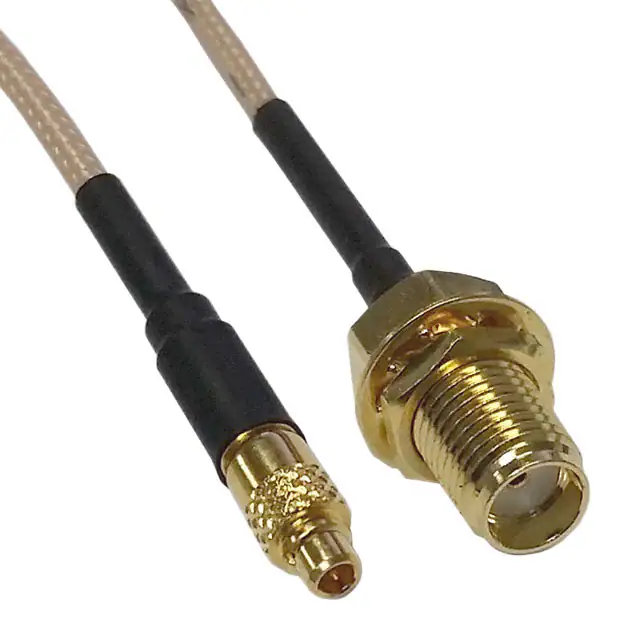

CCSMX-FBM-RG316-6COAX CBL SMA TO MMCX |
4,391 |
|
Datasheet | CCSMX | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCMX2-MM-RG316-6COAX CBL MMCX TO MMCX |
2,447 |
|
Datasheet | CCMX2 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCMX1-MM-RG178-12COAX CBL MMCX TO MMCX |
1,877 |
|
Datasheet | CCMX1 | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
|
CCMX2-MM-RG316-12COAX CBL MMCX TO MMCX |
3,561 |
|
Datasheet | CCMX2 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCMX-MM-RG178-12COAX CBL MMCX TO MMCX |
3,130 |
|
Datasheet | CCMX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA2-MM-RG174-6COAX CBL SMA TO SMA |
4,313 |
|
Datasheet | CCSMA2 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
