Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCSMA18-MM-141-7COAX CBL SMA TO SMA |
155 |
|
Datasheet | CCSMA18 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.000" (177.80mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -40°C ~ 85°C | - | - |
|
|
CCSMA18-MM-141-8COAX CBL SMA TO SMA |
112 |
|
Datasheet | CCSMA18 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -40°C ~ 85°C | - | - |
|
|
CCSMA18-MM-141-12COAX CBL SMA TO SMA |
133 |
|
Datasheet | CCSMA18 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA-MM-086-18COAX CBL SMA TO SMA |
233 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Hand Formable .086 | - | - | 50 Ohms | 12 GHz | Silver | Shielded | -40°C ~ 85°C | - | - |
|
CCBNS-MM-RG316DS-36COAX CBL BNC TO SMA |
114 |
|
Datasheet | CCBNS | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA26.5-MM-086-12COAX CBL SMA TO SMA |
124 |
|
Datasheet | CCSMA26.5 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .086 | - | - | 50 Ohms | 26.5 GHz | Silver | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA18-MM-086F-120COAX CBL SMA TO SMA |
2,126 |
|
Datasheet | CCSMA18 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | 2.54mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -45°C ~ 85°C | - | - |
|
CCSMA-MM-SS402-36COAX CBL SMA TO SMA |
1,176 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 4.14mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -45°C ~ 85°C | - | - |
|

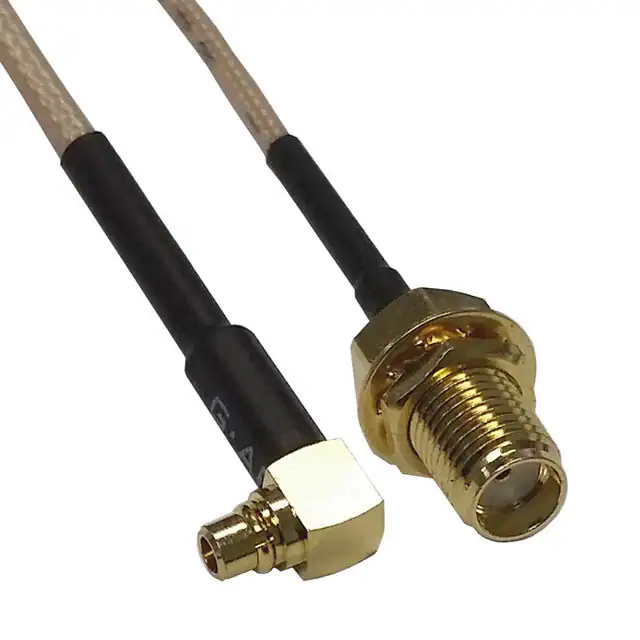

CCSMX1-FBM-RG178-18COAX CBL SMA TO MMCX |
142 |
|
Datasheet | CCSMX1 | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCMX1-MM-RG178-6COAX CBL MMCX TO MMCX |
132 |
|
Datasheet | CCMX1 | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
