Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCMX2-MM-RG178-18COAX CBL MMCX TO MMCX |
3,354 |
|
Datasheet | CCMX2 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA-MM-RG174-6COAX CBL SMA TO SMA |
3,804 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA-MM-086-4COAX CBL SMA TO SMA |
1,912 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .086 | - | - | 50 Ohms | 12 GHz | Silver | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA1-MM-RG174-12COAX CBL SMA TO SMA |
1,748 |
|
Datasheet | CCSMA1 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA2-MM-RG174-12COAX CBL SMA TO SMA |
3,280 |
|
Datasheet | CCSMA2 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|

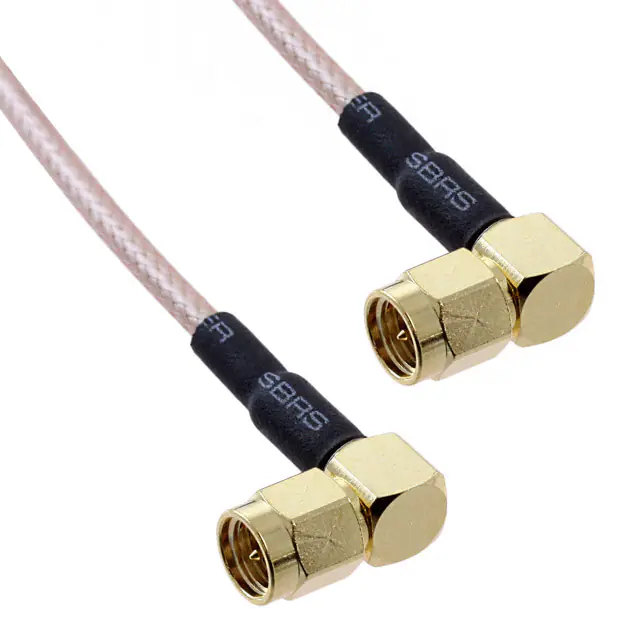

CCSMA2-MM-RG316DS-6COAX CBL SMA TO SMA |
2,288 |
|
Datasheet | CCSMA2 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
|
|
CCSMA2-MM-RG174-36COAX CBL SMA TO SMA |
1,905 |
|
Datasheet | CCSMA2 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
CCSMX1-FBM-RG178-24COAX CBL SMA TO MMCX |
1,389 |
|
Datasheet | CCSMX1 | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA1-MM-RG316DS-12COAX CBL SMA TO SMA |
3,103 |
|
Datasheet | CCSMA1 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
|
|
CCSMA-MM-RG174-48COAX CBL SMA TO SMA |
4,355 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
