Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-725-112-050COAX CBL SMPM TO SMPM |
1,322 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 5.000" (127.00mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
095-850-222M200COAX CBL TNC TO TNC |
4,030 |
|
Datasheet | ARC | Bag | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | 78.7" (2.0m) 6.6' | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-725-128M025COAX CBL SMPM TO SMPM |
2,865 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
175101-22-M2.00COAX CBL N-TYPE TO N-TYPE |
4,321 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
095-725-128-010COAX CBL SMPM TO SMPM |
3,051 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
095-850-279M300COAX CBL BNC TO BNC |
3,178 |
|
Datasheet | BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | LMR 400 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
095-725-114-120COAX CBL SMPM TO SMPM |
4,129 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|

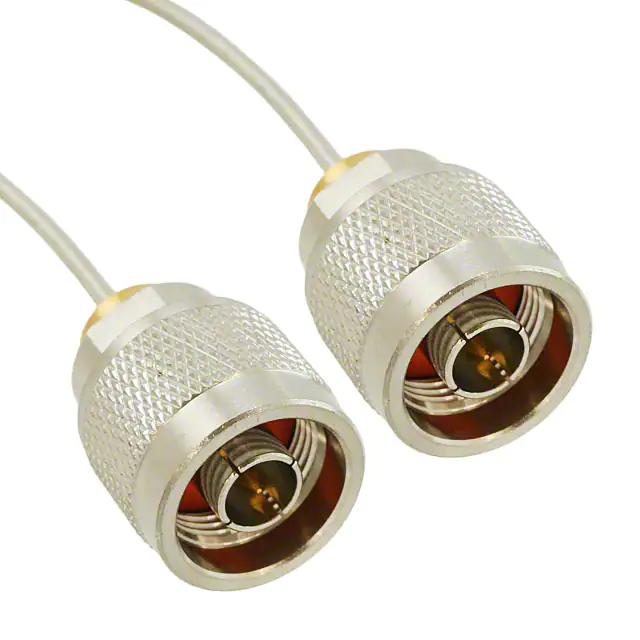

175101-R1-M0.50COAX CBL N-TYPE TO N-TYPE |
3,320 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Hand Formable .085 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
|
095-902-505-048COAX CBL SMA TO SMA |
1,055 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 200 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
095-909-188-018COAX CBL N-TYPE TO QMA |
2,481 |
|
Datasheet | - | Bag | Active | N-Type to QMA | N-Type Plug | Male | Free Hanging (In-Line) | - | QMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
