Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-902-505M100COAX CBL SMA TO SMA |
1,232 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 200 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
095-725-112-040COAX CBL SMPM TO SMPM |
3,753 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
095-725-128-009COAX CBL SMPM TO SMPM |
1,461 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|

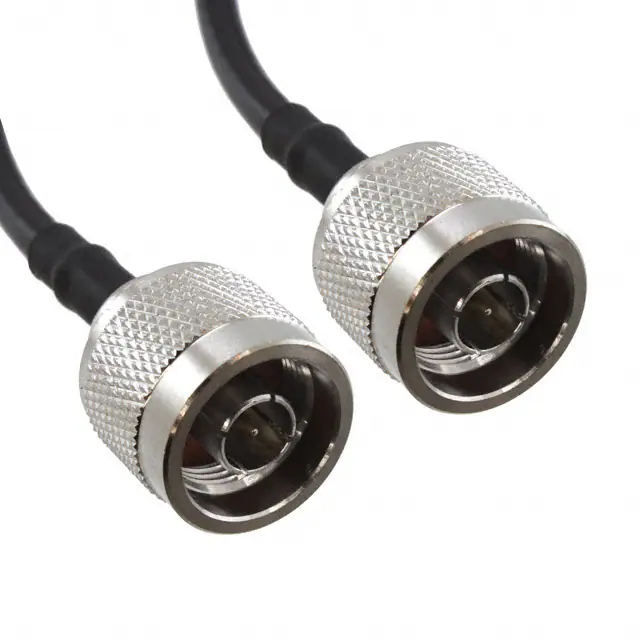

175101-19-M4.00COAX CBL N-TYPE TO N-TYPE |
3,700 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
095-850-159-180COAX CBL HD-BNC TO HD-BNC |
3,671 |
|
Datasheet | - | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
095-725-121-036COAX CBL SMP TO SMP |
3,093 |
|
Datasheet | - | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-909-176M025COAX CBL N-TYPE TO N-TYPE |
2,215 |
|
Datasheet | ARC | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
095-725-127-018COAX CBL SMPM TO SMPM |
3,829 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
095-850-201-180COAX CBL 1.0/2.3 TO BNC |
3,502 |
|
Datasheet | - | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
095-850-218M200COAX CBL BNC TO HD-BNC |
1,023 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | Belden 4694R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
