Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
175101-R1-24.00COAX CBL N-TYPE TO N-TYPE |
3,032 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .085 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
095-725-112-070COAX CBL SMPM TO SMPM |
2,608 |
|
Datasheet | - | Bulk | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 7.000" (177.80mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
095-850-269L050COAX CBL BNC TO BNC |
3,672 |
|
Datasheet | - | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 600.0" (15.2m) 50.0' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
095-902-482-048COAX CBL SMA TO SMA |
1,537 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-909-176-024COAX CBL N-TYPE TO N-TYPE |
4,741 |
|
Datasheet | ARC | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-902-475-168COAX CBL SMA TO SMA |
3,693 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 168.0" (4.3m) 14.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
095-725-127-024COAX CBL SMPM TO SMPM |
2,753 |
|
Datasheet | - | Bag | Active | SMPM to SMPM | SMPM Plug | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
095-909-188-024COAX CBL N-TYPE TO QMA |
3,519 |
|
Datasheet | - | Bag | Active | N-Type to QMA | N-Type Plug | Male | Free Hanging (In-Line) | - | QMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
|
095-850-239-072COAX CBL BNC TO HD-BNC |
3,762 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

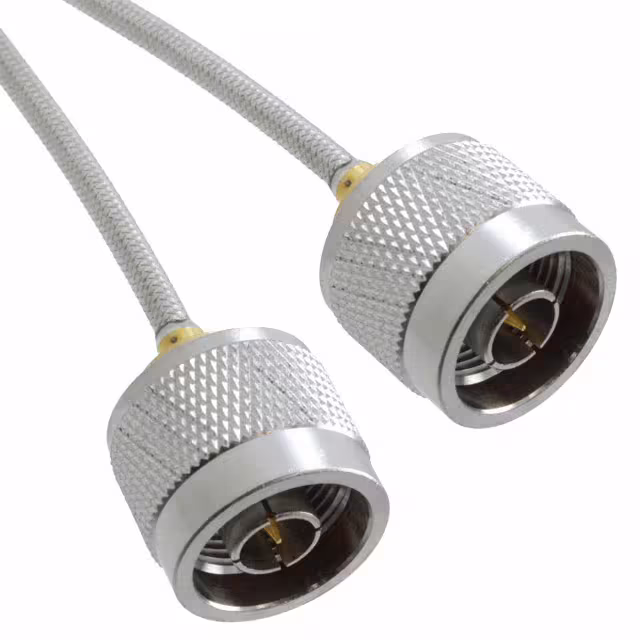

175101-R2-24.00COAX CBL N-TYPE TO N-TYPE |
3,811 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .141 | - | - | 50 Ohms | - | Gray | - | - | - | - |
