Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-909-188M100COAX CBL N-TYPE TO QMA |
1,711 |
|
Datasheet | - | Bag | Active | N-Type to QMA | N-Type Plug | Male | Free Hanging (In-Line) | - | QMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
115101-19-M20.0COAX CBL BNC TO BNC |
3,130 |
|
Datasheet | - | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-725-107-360COAX CBL SMP TO SMP |
3,602 |
|
Datasheet | - | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | TFlex-405 | - | - | 50 Ohms | 20 GHz | Blue | Shielded | - | - | - |
|
095-902-451M100COAX CBL SMA TO SMA |
3,775 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - | - | - |
|
095-820-182M500COAX CBL MINI FAKRA-MINI FAKRA |
191 |
|
Datasheet | AUTOMATE™ | Bag | Active | Mini Fakra to Mini Fakra | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | - | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|

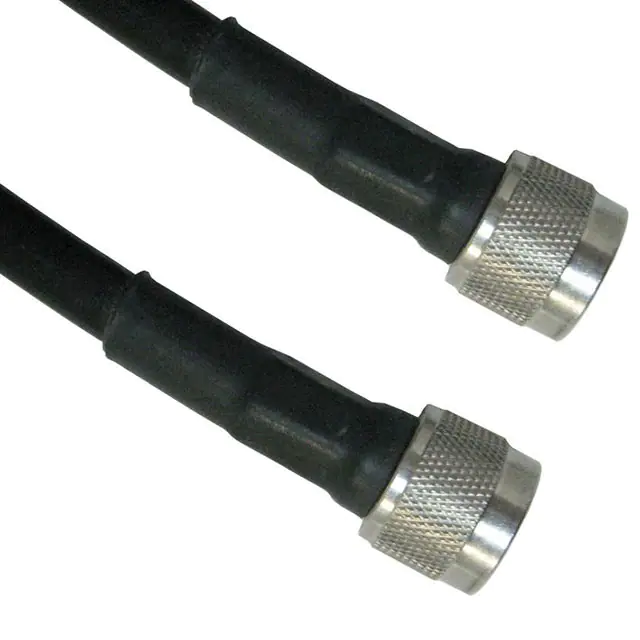

175101-10-96.00COAX CBL N-TYPE TO N-TYPE |
3,738 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | Shielded | - | - | - |
|
095-820-176-006COAX CBL SMA TO MINI FAKRA |
1,963 |
|
Datasheet | AUTOMATE™ | Bag | Active | SMA to Mini Fakra | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
095-850-188M400COAX CBL HD-BNC TO HD-BNC |
1,563 |
|
Datasheet | - | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-820-175M100COAX CBL SMA TO MINI FAKRA |
4,692 |
|
Datasheet | AUTOMATE™ | Bag | Active | SMA to Mini Fakra | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
095-825-120-024COAX CBL 2.92MM TO 2.92MM |
2,993 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 40 GHz | Silver | - | - | - | - |
