Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

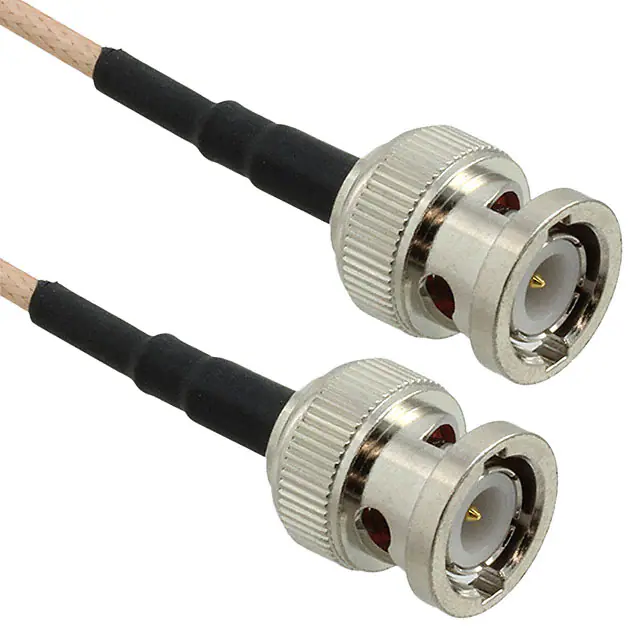

115101-01-48.00COAX CBL BNC TO BNC |
144 |
|
Datasheet | - | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

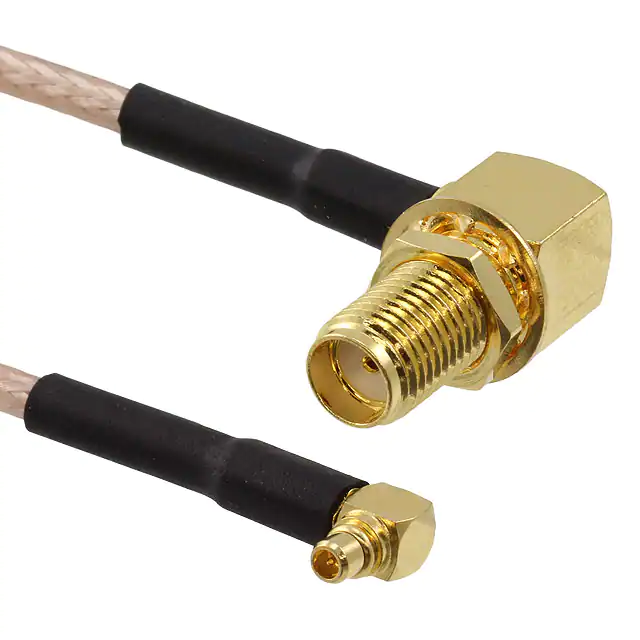

245108-01-06.00COAX CBL SMA TO MMCX |
119 |
|
Datasheet | - | Bulk | Active | SMA to MMCX | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-850-303-006COAX CBL BNC TO MCX |
121 |
|
Datasheet | - | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
145104-01-36.00COAX CBL SMB TO SMB |
243 |
|
Datasheet | - | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-850-166M100COAX CBL BNC TO BNC |
129 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
095-909-155-005COAX CBL U.FL AMC TO N-TYPE |
203 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), AMC to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
145101-01-M1.00COAX CBL SMB TO SMB |
139 |
|
Datasheet | - | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
265104-01-36.00COAX CBL MMCX TO MMCX |
396 |
|
Datasheet | - | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
135111-01-24.00COAX CBL SMA TO SMA |
306 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

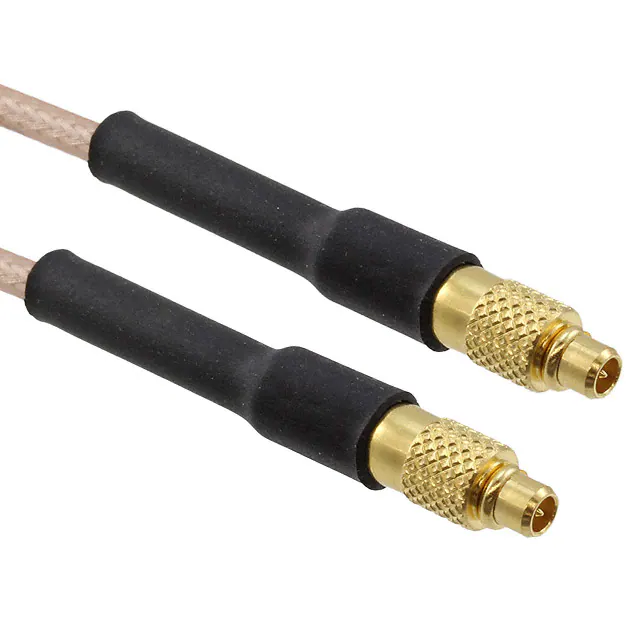

265101-08-24.00COAX CBL MMCX TO MMCX |
229 |
|
Datasheet | - | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
