Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-725-121-012COAX CBL SMP TO SMP |
1,195 |
|
Datasheet | - | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-902-581-006COAX CBL SMA TO SMP |
4,088 |
|
Datasheet | - | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
095-902-459-005COAX CBL SMA TO SMP |
3,814 |
|
Datasheet | - | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 5.000" (127.00mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - | - | - |
|
095-850-158M100COAX CBL HD-BNC TO HD-BNC |
346 |
|
Datasheet | - | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
095-902-450-018COAX CBL SMA TO SMA |
3,851 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
095-902-581-008COAX CBL SMA TO SMP |
3,858 |
|
Datasheet | - | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
095-725-108-030COAX CBL SMP TO SMP |
2,982 |
|
Datasheet | - | Bag | Active | SMP to SMP | SMP Plug | Female | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .085 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-902-479-036COAX CBL SMA TO SMA |
3,636 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
095-902-479M100COAX CBL SMA TO SMA |
3,773 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

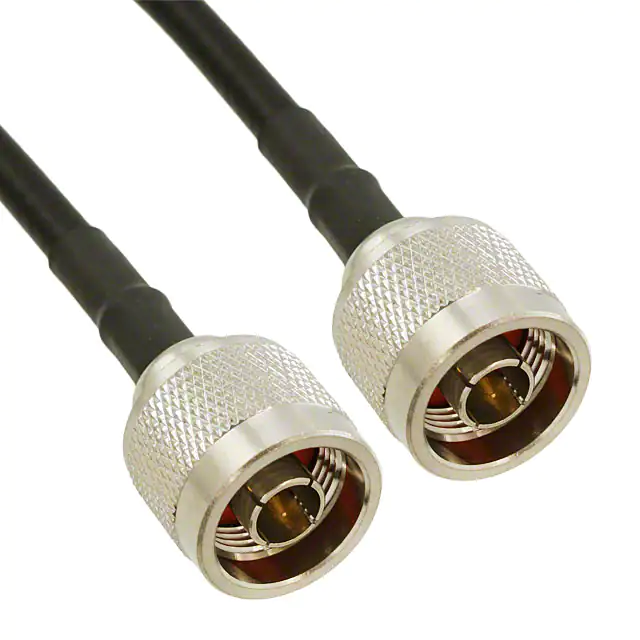

175101-22-M1.00COAX CBL N-TYPE TO N-TYPE |
4,637 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
