Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3377-48COAX CBL SMA TO SMA |
10,689 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3W02050-48COAX CBL SMA TO TNC |
2,860 |
|
Datasheet | - | Retail Package | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|

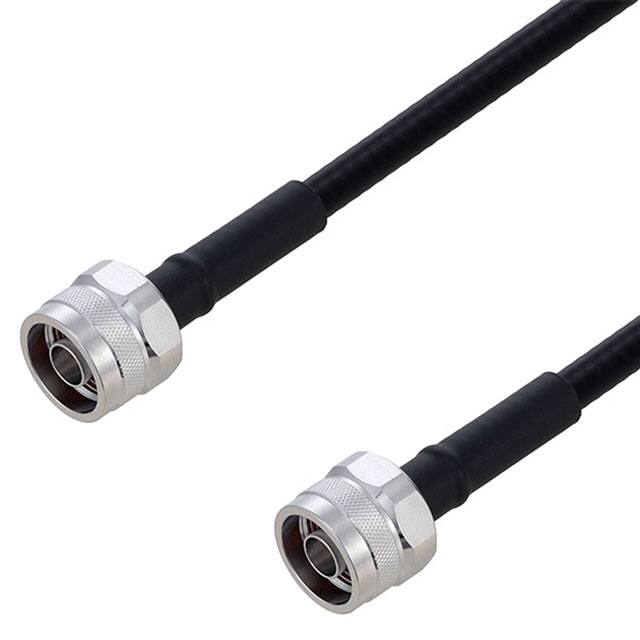

PE3C6345-100CMCOAX CBL N-TYPE TO N-TYPE |
274 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3CA1106-9COAX CBL SMA TO CABLE |
3,566 |
|
Datasheet | - | Retail Package | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 0.047" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | 125°C | - | - |
|
|
PE3C2295-96COAX CBL BNC TO BNC |
4,070 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE3087-144COAX CBL BNC TO BNC |
4,585 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE3574-12COAX CBL SMA TO SMA |
2,040 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE36524-48COAX CBL 10-32 TO 10-32 |
944 |
|
Datasheet | - | Retail Package | Active | 10-32 to 10-32 | 10-32 Plug | Male | Free Hanging (In-Line) | - | 10-32 Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W00148-48COAX CBL BNC TO SHV |
528 |
|
Datasheet | - | Retail Package | Active | BNC to SHV | BNC Plug | Male | Free Hanging (In-Line) | - | SHV Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE33646LF-60COAX CBL BNC TO SMC |
121 |
|
Datasheet | - | Retail Package | Active | BNC to SMC | BNC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
