Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE33158-12COAX CBL SMA TO SMA |
679 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W00148-36COAX CBL BNC TO SHV |
528 |
|
Datasheet | - | Retail Package | Active | BNC to SHV | BNC Plug | Male | Free Hanging (In-Line) | - | SHV Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE3W00148-12COAX CBL BNC TO SHV |
528 |
|
Datasheet | - | Retail Package | Active | BNC to SHV | BNC Plug | Male | Free Hanging (In-Line) | - | SHV Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE3138LF-12COAX CBL SMA TO SMA |
442 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | - | 50 Ohms | 50 Ohms | - | Tan | - | -55°C ~ 165°C | - | - |
|

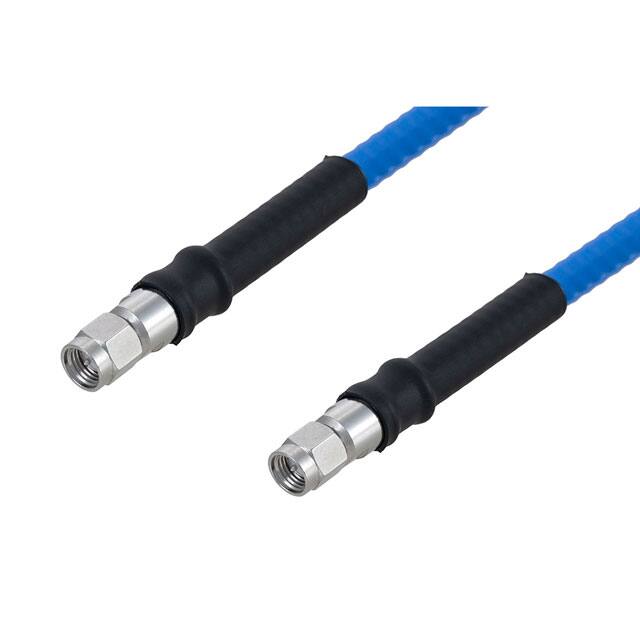

PE3C5888-24COAX CBL SMA TO SMA |
210 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
PE3C6373-200CMCOAX CBL N-TYPE TO N-TYPE |
2,751 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3067-240COAX CBL BNC TO BNC |
5,362 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE3344LF-18COAX CBL SMA TO SMA |
2,204 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W00148-24COAX CBL BNC TO SHV |
528 |
|
Datasheet | - | Retail Package | Active | BNC to SHV | BNC Plug | Male | Free Hanging (In-Line) | - | SHV Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE3W01959LF/HS-60COAX CBL N-TYPE TO TNC |
350 |
|
Datasheet | - | Retail Package | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
