Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

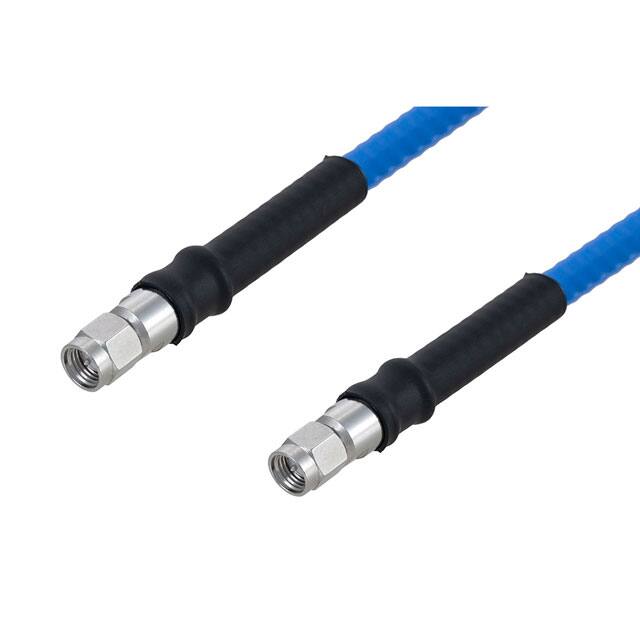

PE3C5888-12COAX CBL SMA TO SMA |
210 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
PE33421-12COAX CBL BNC TO BNC |
175 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
PE3C7865-60COAX CBL SMA TO SMA |
164 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE34683LF-12COAX CBL SMP MINI-SMP MINI |
139 |
|
Datasheet | - | Retail Package | Active | SMP Mini to SMP Mini | SMP Mini Plug | Male | Free Hanging (In-Line) | - | SMP Mini Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
PE3C6371-48COAX CBL N-TYPE TO N-TYPE |
115 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3087-84COAX CBL BNC TO BNC |
6,119 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE3C2295-144COAX CBL BNC TO BNC |
4,070 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE39435-9SMA Female Bulkhead to MCX Plug |
296 |
|
Datasheet | - | Retail Package | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3C5909-24COAX CBL FAKRA TO FAKRA |
144 |
|
Datasheet | - | Retail Package | Active | Fakra to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE3236LF-60COAX CBL BNC TO SMB |
3,296 |
|
Datasheet | - | Retail Package | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
