Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1-SMAPRA/SMAPRA-085CJ-18COAX CBL SMA TO SMA |
2,461 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 18.00" (457.20mm) | Hand Formable .085 | 50 Ohms | - | - | 18 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAMSAMRA-RG58-18COAX CBL SMA TO SMA |
1,086 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 18.00" (457.20mm) | RG-58 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1-SMAPRA/SMAPRA-085CJ-17COAX CBL SMA TO SMA |
1,689 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 17.00" (431.80mm) | Hand Formable .085 | 50 Ohms | - | - | 18 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
P1CA-SAFPT-034SR-2COAX CBL SMA TO CABLE |
3,118 |
|
Datasheet | - | Box | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 2.000" (50.80mm) | 0.034" Semi-Rigid Cable | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAFBUFP-U113-6-WPCOAX CBL U.FL TO SMA |
3,536 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.1mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|

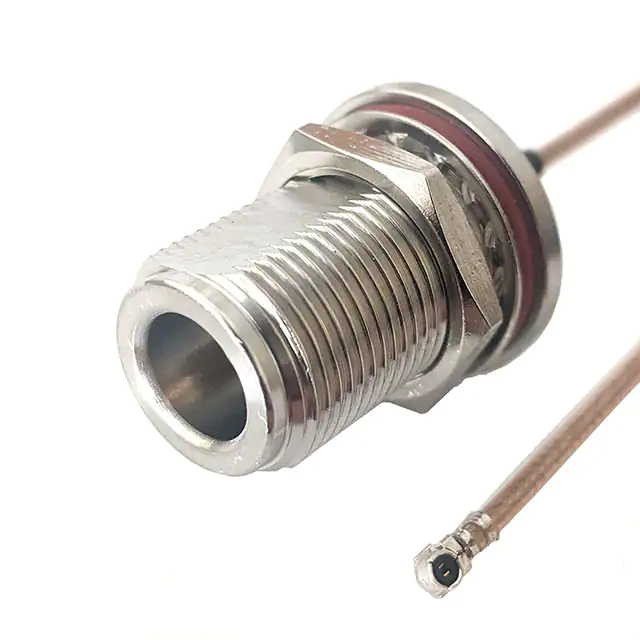

P1CA-NFBUFL-RG178-6COAX CBL U.FL TO N-TYPE |
4,012 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1-SMAP/SMAPRA-141CJ-8COAX CBL SMA TO SMA |
2,189 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | - | - | - | - | 18 GHz | Blue | - | -85°C ~ 200°C | - | - |
|
|
P1-SMAP/SMAPRA-141CJ-12COAX CBL SMA TO SMA |
3,175 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.141" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -85°C ~ 200°C | - | - |
|
P1CA-SAMSAM-085CJ-18COAX CBL SMA TO SMA |
3,244 |
|
Datasheet | - | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1-SMAP/SMAPRA-085CJ-14COAX CBL SMA TO SMA |
2,137 |
|
- |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 14.00" (355.60mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -85°C ~ 200°C | - | - |
