Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

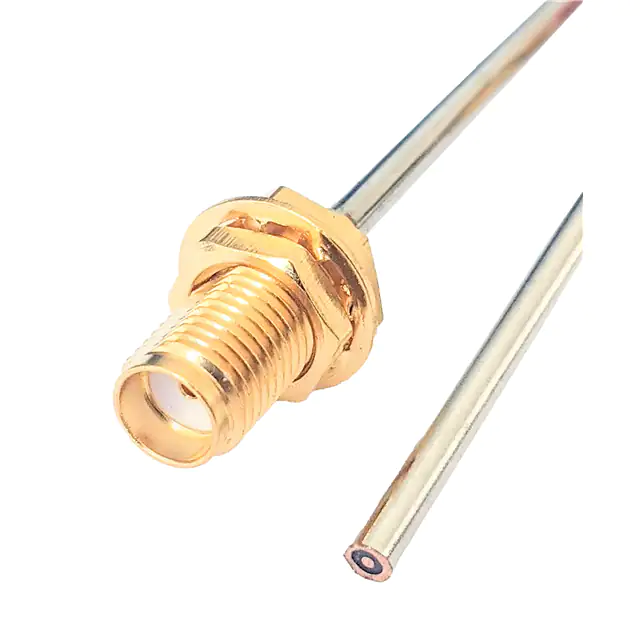

P1CA-SAFPT-034SR-9COAX CBL SMA TO CABLE |
4,749 |
|
Datasheet | - | Box | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 9.000" (228.60mm) | 0.034" Semi-Rigid Cable | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSAMRA-RG58-48COAX CBL SMA TO SMA |
2,841 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|

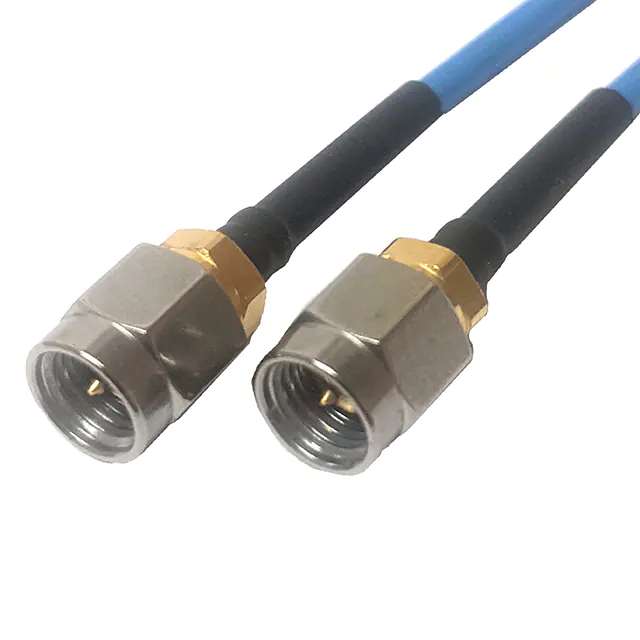

P1CA-SAMSAM-085CJ-24COAX CBL SMA TO SMA |
1,457 |
|
Datasheet | - | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSAM-085CC-24COAX CBL SMA TO SMA |
3,680 |
|
Datasheet | - | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-BNMBNM-085CJ-24COAX CBL BNC TO BNC |
1,678 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.086" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | -40°C ~ 125°C | - | - |
|
|
P1-SMAP/SMAPRA-085CJ-24COAX CBL SMA TO SMA |
3,855 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -85°C ~ 200°C | - | - |
|
P1CA-SAFPT-034SR-4-12GCOAX CBL SMA TO CABLE |
1,615 |
|
Datasheet | - | Box | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 4.000" (101.60mm) | 0.034" Semi-Rigid Cable | 50 Ohms | - | - | - | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAMSAM-085CC-36COAX CBL SMA TO SMA |
4,217 |
|
Datasheet | - | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Hand Formable .085 | 50 Ohms | - | - | 26.5 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1-SMAP/SMAPRA-141CJ-24COAX CBL SMA TO SMA |
3,278 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.141" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | - | -85°C ~ 200°C | - | - |
|
|
P1CA-SAMSPF-085CJ-12COAX CBL SMA TO SMP |
4,436 |
|
Datasheet | - | Box | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .085 | 50 Ohms | - | - | 18 GHz | - | - | -40°C ~ 85°C | - | - |
