Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1CA-29M29M-ST085-12COAX CBL 2.92MM TO 2.92MM |
4,748 |
|
Datasheet | - | Box | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.085" Semi-Rigid Cable | 50 Ohms | - | - | 40 GHz | - | - | -40°C ~ 85°C | - | - |
|

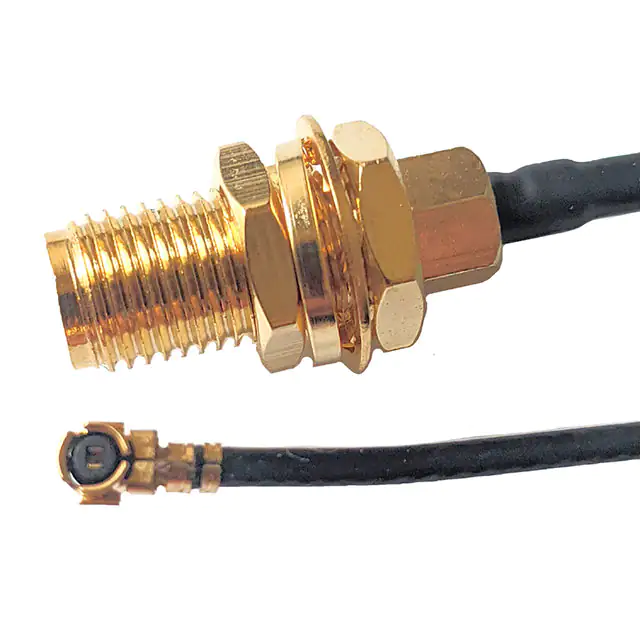

P1CA-SAFRPUFP-U137-4.1COAX CBL U.FL TO RP-SMA |
100 |
|
- |
- | Box | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 4.134" (105.00mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAFRPUFP-U137-9.8COAX CBL U.FL TO RP-SMA |
3,335 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAFRPUFP-U137-6.5COAX CBL U.FL TO RP-SMA |
3,944 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 6.496" (165.00mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAMUFL-RG178-4COAX CBL U.FL TO SMA |
100 |
|
Datasheet | P1CA | Bulk | Active | U.FL (UMCC) to SMA | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | - | - | - | 6 GHz | Black | - | - | - | - |
|
|
P1CA-MMPUFP-U081-1.5COAX CBL U.FL TO MMCX |
3,118 |
|
Datasheet | P1CA | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.50" (38.10mm) | 0.8mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | - | - | - |
|
P1CA-SAFBUFP-U132-3COAX CBL U.FL TO SMA |
4,502 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-SAFBUFP-U132-9COAX CBL U.FL TO SMA |
2,130 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
P1CA-MMPUFP-U081-2.5COAX CBL U.FL TO MMCX |
3,906 |
|
Datasheet | P1CA | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.500" (63.50mm) | 0.81mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | - | - | - |
|
|
P1CA-SAFRPBUFP-U132-6COAX CBL U.FL TO SMA |
4,008 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.30mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | - | - | - |
