Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1CA-29FPT-047SR-2COAX CBL 2.92MM TO CABLE |
4,707 |
|
Datasheet | - | Box | Active | 2.92mm to Cable | 2.92mm Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | Free Hanging (In-Line) | - | 2.000" (50.80mm) | 0.047" Semi-Rigid Cable | 50 Ohms | - | - | 40 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAMSAM-085CJ-72COAX CBL SMA TO SMA |
2,897 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | 0.085" Flexible Cable | 50 Ohms | - | - | 26.5 GHz | - | - | -85°C ~ 200°C | - | - |
|

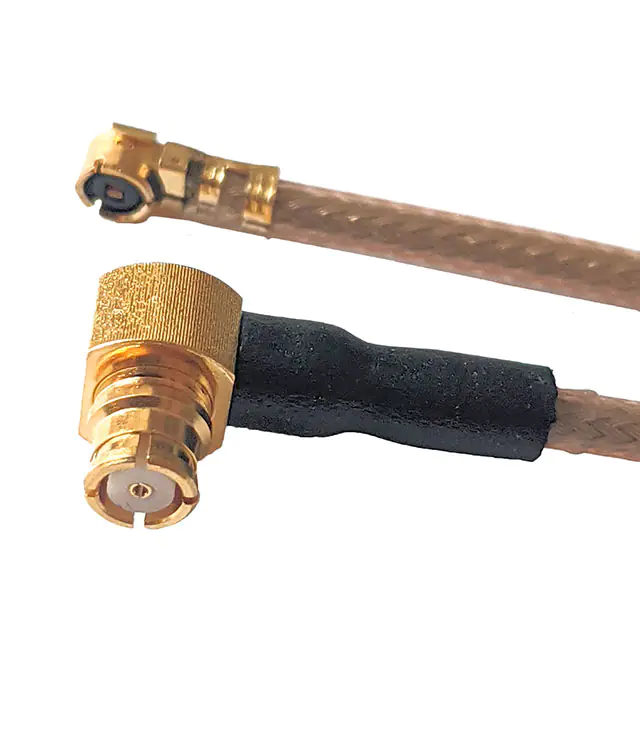

P1CA-SPFRAUFL-RG178-6COAX CBL U.FL TO SMP |
3,691 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-SAFBSPF-SS085-9COAX CBL SMA TO SMP |
3,819 |
|
Datasheet | - | Box | Active | SMA to SMP | SMA Jack | Female | - | - | SMP Jack | Female | - | - | 9.000" (228.60mm) | 0.085" Flexible Cable | 50 Ohms | - | - | 18 GHz | - | - | -40°C ~ 85°C | - | - |
|

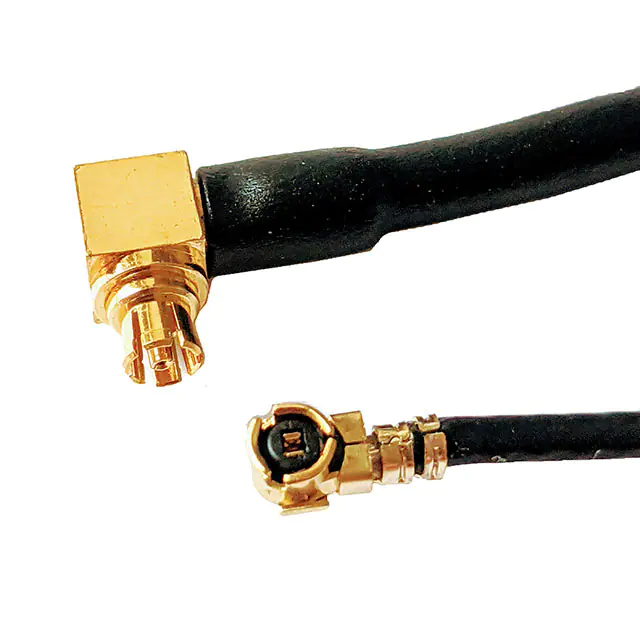

P1CA-SMFRAUFL-U137-5COAX CBL U.FL TO SMPM |
3,352 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | 1.3mm Flex | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
P1CA-STMSTM-ST085-18COAX CBL SMA TO SMA |
4,459 |
|
Datasheet | P1CA | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | ST085 | - | - | - | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
P1CA-SMBUFL-U137-3.4COAX CBL U.FL TO SMPM |
4,570 |
|
Datasheet | P1CA | Bulk | Active | U.FL (UMCC) to SMPM | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 3.40" (86.36mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | - | - | - |
|
|
P1CA-STMSTM-ST085-36COAX CBL SMA TO SMA |
1,910 |
|
Datasheet | P1CA | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | ST085 | - | - | - | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
P1CA-SAMSAM-085CJ-96COAX CBL SMA TO SMA |
1,338 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | 0.085" Flexible Cable | 50 Ohms | - | - | 26.5 GHz | - | - | -85°C ~ 200°C | - | - |
|
|
P1CA-29M29M-085CJ-6COAX CBL 2.92MM TO 2.92MM |
3,516 |
|
Datasheet | - | Box | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .085 | 50 Ohms | - | - | 40 GHz | - | - | -40°C ~ 85°C | - | - |
