Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XZCR1511041C5CIRC CBL 4POS RCPT TO PLUG 16.4' |
1,871 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCR1511064D2CIRC CBL 5POS PLUG TO RCPT 6.56' |
1,383 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Receptacle | Male Pins | 5 | All | M12 | - | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCR1511064D1CIRC CBL 5POS PLUG TO RCPT 3.28' |
2,554 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Receptacle | Male Pins | 5 | All | M12 | - | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

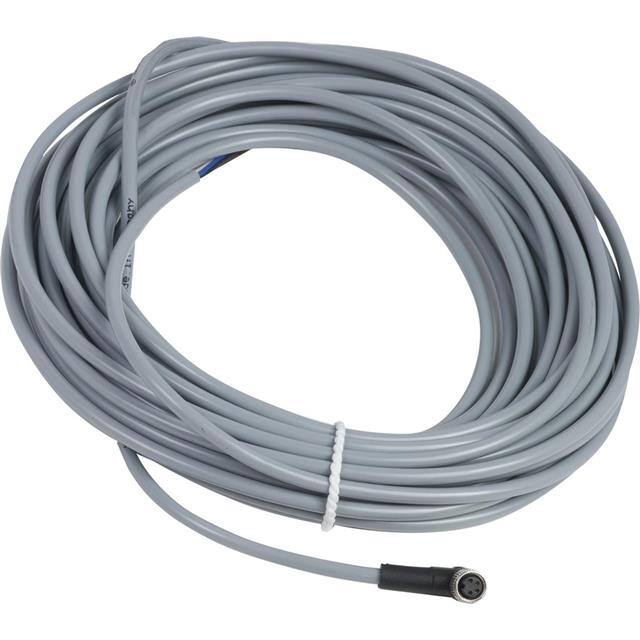

XZCPV1041L10CBL 4POS PLUG RA TO WIRE 32.8' |
1,189 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP57V12L3M12 12 POLES FEMALE CONNECTOR, 3 |
2,282 |
|
Datasheet | XZCP | Bulk | Active | Plug | Female Sockets | 12 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
XZCP12V12L5CBL 5POS PLUG RA TO WIRE 16.4' |
3,200 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP1865L10CIRC CBL 3POS PLUG TO WIRE 32.8' |
2,564 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 3 | All | 1/2" | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
XZCR2705037R1CIRC CBL 3POS RCPT TO PLUG 3.28' |
1,415 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 3 | All | M8 | - | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP0766L2CBL 3POS PLUG RA TO WIRE 6.56' |
1,851 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP0866L2CBL 3POS PLUG RA TO WIRE 6.56' |
2,686 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
