Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XZCPV1264L2CBL 5POS PLUG RA TO WIRE 6.56' |
2,151 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP29P12L2CIRC CBL 8POS PLUG TO WIRE 6.56' |
2,167 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 8 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP29P11L2CIRC CBL 8POS PLUG TO WIRE 6.56' |
4,247 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 8 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

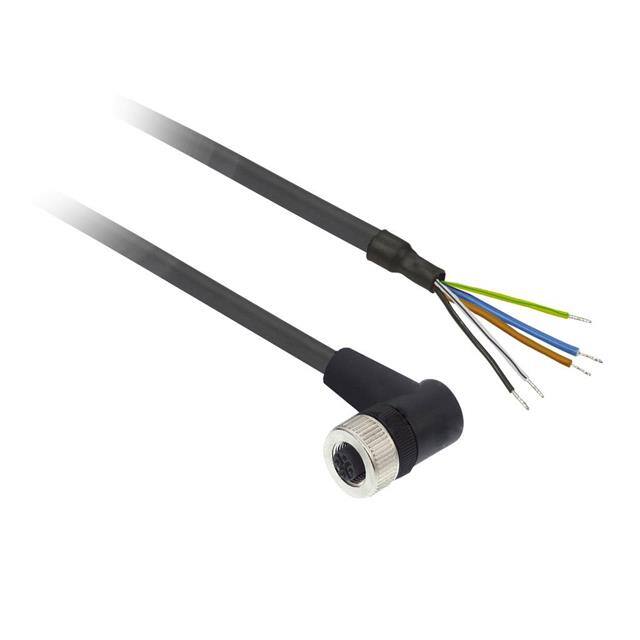

XZCP1264L5CBL 5POS PLUG RA TO WIRE 16.4' |
3,316 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP1541L1CIRC CBL 4POS RCPT TO WIRE 3.28' |
1,417 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCPA1141L5CIRC CBL 4POS PLUG TO WIRE 16.4' |
3,368 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP69K - Dust Tight, High Temp Water Jets, Waterproof | Industrial Environments |
|
|
XZCPB1241L2CIRC CBL 4POS PLUG TO WIRE 6.56' |
3,214 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCPV12V2L10CBL 3POS PLUG RA TO WIRE 32.8' |
4,355 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 3 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCPV11V2L10CIRC CBL 3POS PLUG TO PLUG 32.8' |
4,049 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 3 | All | M12 | - | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | - | Free Hanging (In-Line) | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCPV12V12L10CBL 5POS PLUG RA TO WIRE 32.8' |
4,422 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
