Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XZCP0166L5CIRC CBL 3POS PLUG TO WIRE 16.4' |
3,407 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 3 | All | - | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP0166L2CIRC CBL 3POS PLUG TO WIRE 6.56' |
3,562 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 3 | All | - | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCP0666L10CBL 3POS PLUG RA TO WIRE 32.8' |
1,232 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCP1169L10CIRC CBL 4POS PLUG TO WIRE 32.8' |
4,291 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

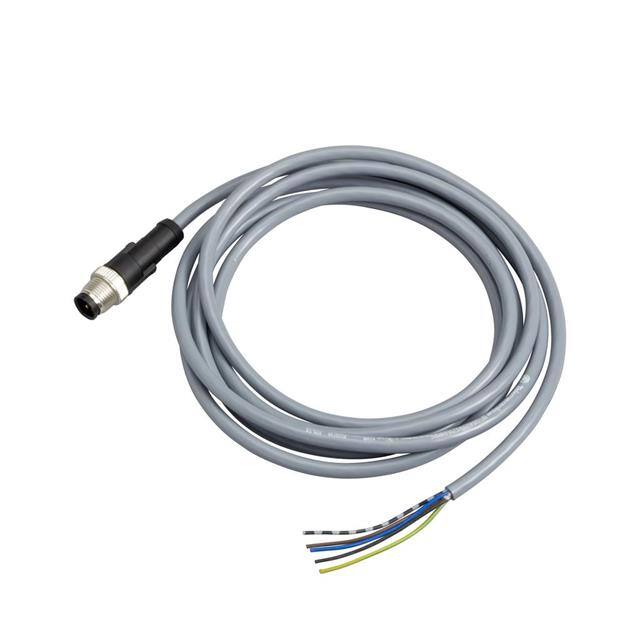

XZCPV1564L2CIRC CBL 5POS RCPT TO WIRE 6.56' |
1,783 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCPV1541L5CIRC CBL 4POS RCPT TO WIRE 16.4' |
1,649 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

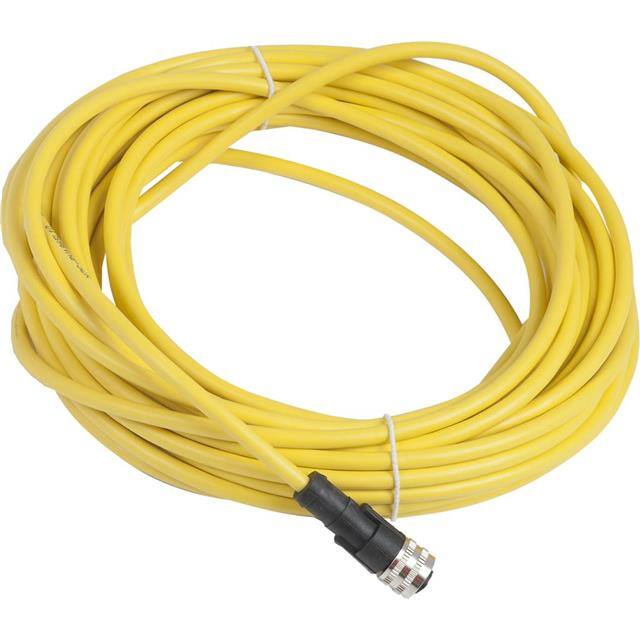

XZCPV1865L10CIRC CBL 3POS PLUG TO WIRE 32.8' |
4,824 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 3 | All | 1/2" | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCP11V12L10CIRC CBL 5POS PLUG TO WIRE 32.8' |
3,578 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCPV51V3L5CBL 4POS RCPT RA TO WIRE 16.4' |
1,602 |
|
Datasheet | - | Box | Active | Receptacle, Right Angle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCPV1164L10CIRC CBL 5POS PLUG TO WIRE 32.8' |
3,705 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
