Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5308 507CABLE GLAND 2.5-6.5MM PG7 |
346 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 516CABLE GLAND 7-14MM PG16 POLYAMID |
1,484 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 713CABLE GLAND 5-12MM PG13.5 |
104 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | PG13.5 | 0.354" (9.00mm) | - | 0.803" (20.4mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 959CABLE GLAND 5-12MM M20 POLYAMIDE |
455 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 902CABLE GLAND 9-18.01MM 3/4" NPT |
125 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

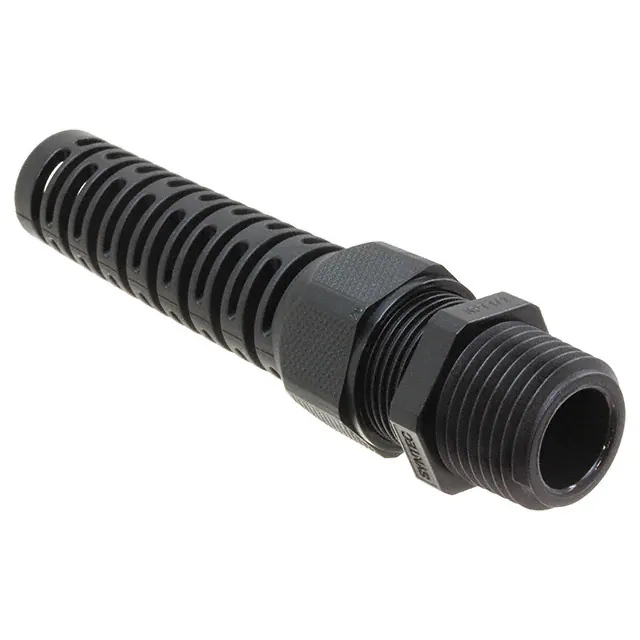

5306152CABLE GLAND 5.5-12MM 1/2" NPT |
160 |
|
Datasheet | Cable Gland | 0.217" (5.50mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | 0.835" (21.2mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|

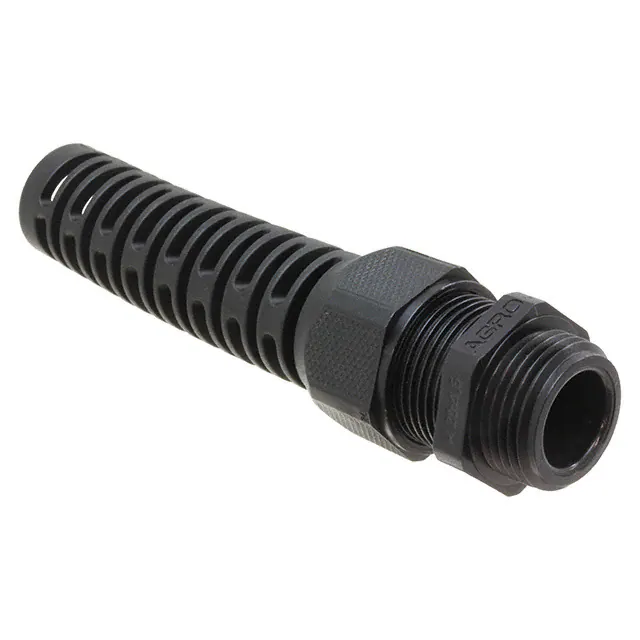

5306132CABLE GLAND 3-7MM M20 POLYAMIDE |
154 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.276" (7.00mm) | M20x1.5 | 0.315" (8.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|

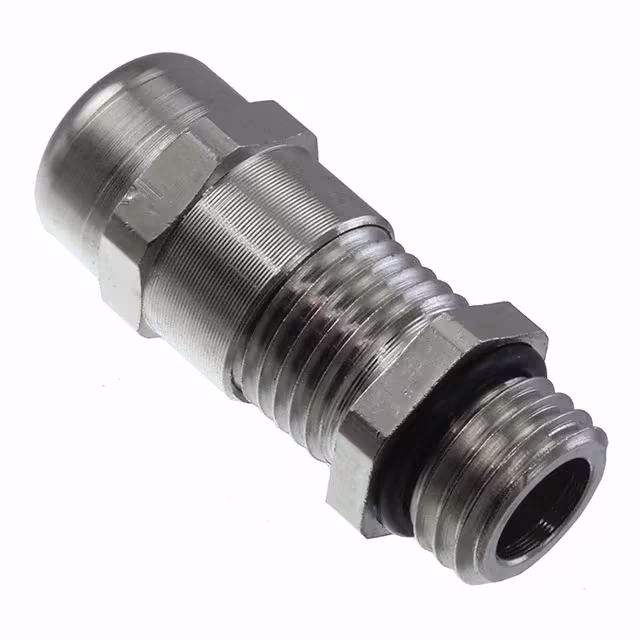

4264112CABLE GLAND 4-6.5MM M12 BRASS |
876 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.276" (7.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|

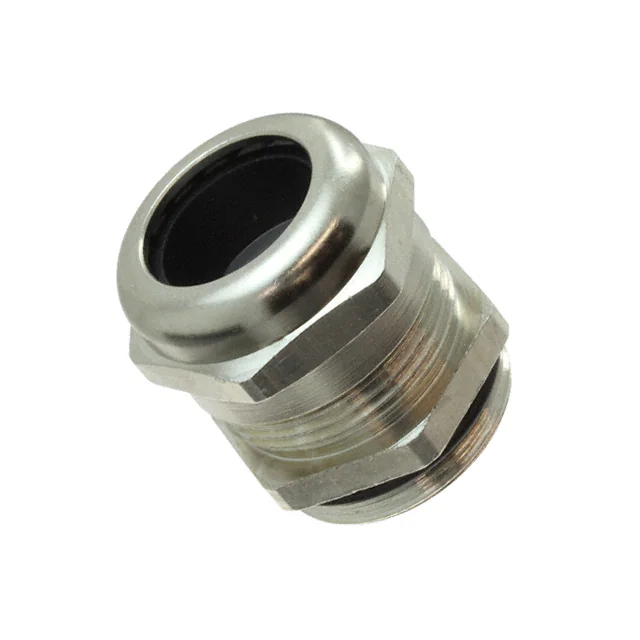

4264120CABLE GLAND 7-10.5MM M20 BRASS |
531 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.413" (10.50mm) | M20x1.5 | 0.276" (7.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
5308 707/SETCABLE GLAND 2.5-6.5MM PG7 |
497 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | Locknut | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
