Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5309 624CABLE GLAND 5-12MM M25 POLYAMIDE |
183 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 953CABLE GLAND 9-18.01MM M25 |
10,612 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 922CABLE GLAND 9-18.01MM 3/4" NPT |
1,635 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 926CABLE GLAND 7-16MM 3/4" NPT |
437 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.630" (16.00mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5306107CABLE GLAND 2.5-6.5MM PG7 |
162 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
4220616CABLE GLAND 4-9.5MM M16 BRASS |
151 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.374" (9.50mm) | M16x1.5 | 0.197" (5.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|

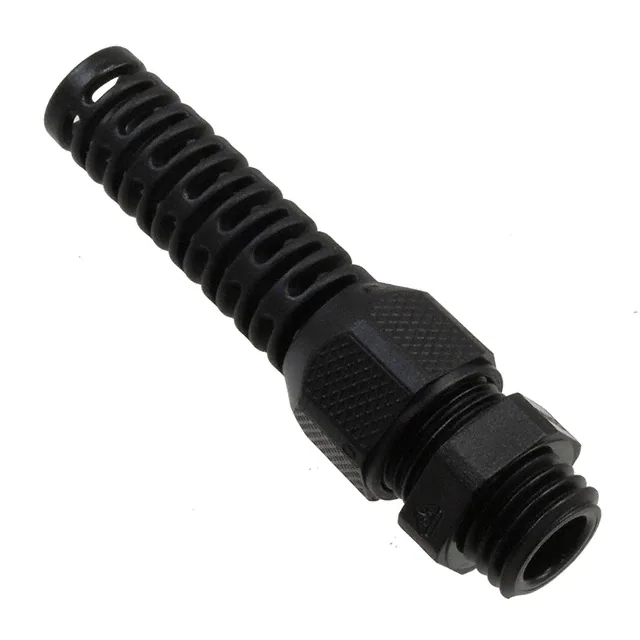

5306130CABLE GLAND 2.5-6.5MM M12 |
354 |
|
Datasheet | Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | M12x1.5 | 0.236" (6.00mm) | - | 0.472" (12.0mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
5308 903CABLE GLAND 14-25MM 1" NPT |
131 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.311" (33.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5309 229CABLE GLAND 11-21MM PG29 |
258 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.827" (21.00mm) | PG29 | 0.433" (11.00mm) | - | 1.457" (37.0mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
5308 941CABLE GLAND 3.5-10MM M16 |
424 |
|
Datasheet | Cable Gland | 0.138" (3.50mm) | 0.394" (10.00mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C |
