Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC616WYRBUZZER PIEZO 42.85MM PNL MNT |
4,957 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.325kHz | Piezo | Pin Selectable | 0.5 ~ 2.5 PPS | 62dB @ 6V, 61cm | 6 ~ 27mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
LSC250NBUZZER PIEZO 42.85MM PNL MNT |
2,470 |
|
Datasheet | LSC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 82dB @ 60V, 61cm | 42 ~ 61mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

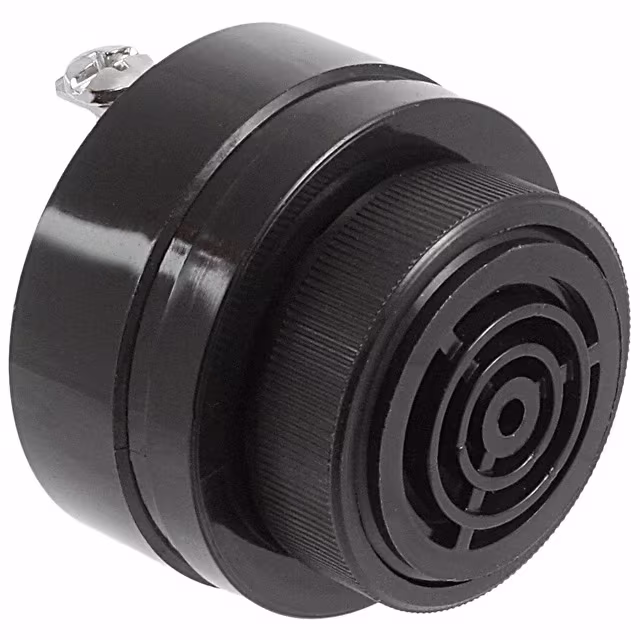

SC628CPNRBUZZER PIEZO 42.98MM PNL MNT |
4,894 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Chime | - | 84dB @ 6V, 61cm | 6 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC110MBUZZER PIEZO 42.85MM PNL MNT |
3,691 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 71dB @ 30V, 61cm | 4 ~ 18mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC628MPBUZZER PIEZO 42.98MM PNL MNT |
3,144 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
ZT028LAIC3RBUZZER PIEZO 24V 30.74MM PNL MNT |
2,212 |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Red | Pulse, Slow, Visual Indicator | 1 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT028LAIC1RBUZZER PIEZO 24V 30.74MM PNL MNT |
4,689 |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SCH628NRBUZZER PIEZO 42.85MM PNL MNT |
1,746 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 86dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCH628ANPRBUZZER PIEZO 42.85MM PNL MNT |
1,262 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 88dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

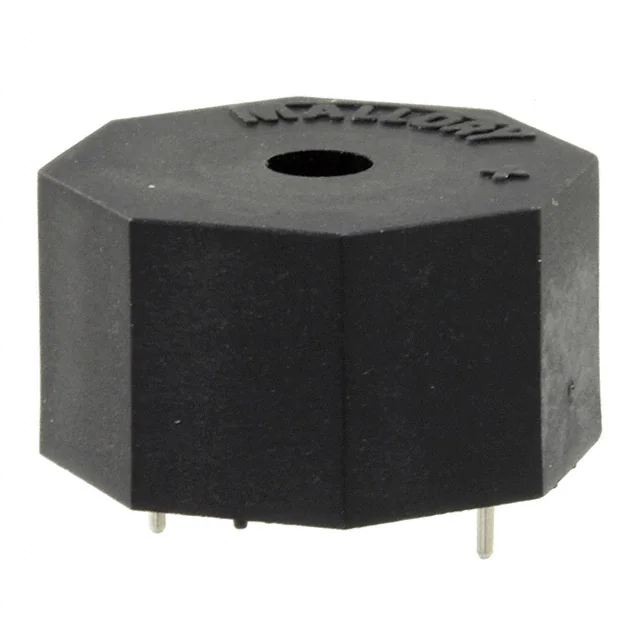

MSE14LSN3BUZZER PIEZO 23X23MM TH |
3,634 |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 4kHz | Piezo | Siren, Fast | 7 SPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
