Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

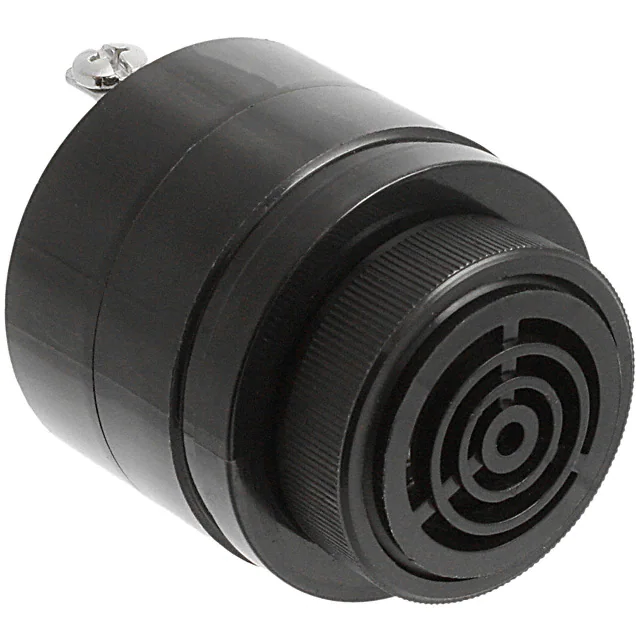

SC628APRBUZZER PIEZO 42.98MM PNL MNT |
3,026 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 7.5V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
ZT028LACTRBUZZER PIEZO 30.74MM PNL MNT |
4,608 |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|

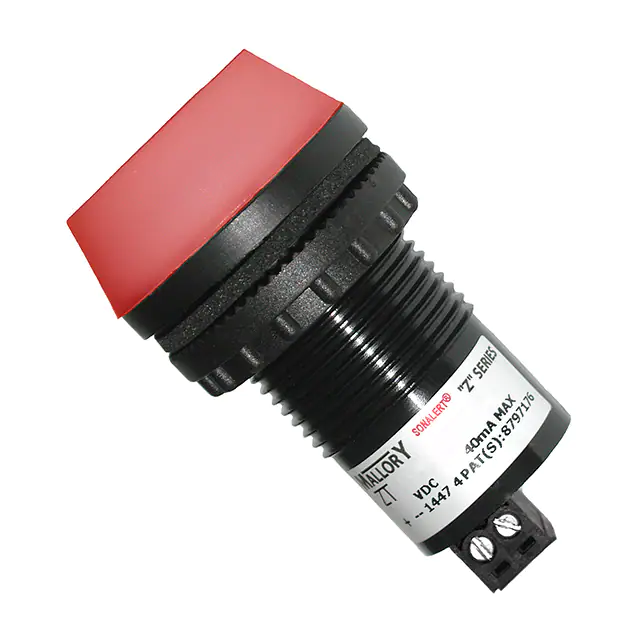

ZT028LDCTR30BUZZER PIEZO 30.74MM PNL MNT |
3,774 |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | 30 Sec On-Time | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC628ANPRBUZZER PIEZO 42.98MM PNL MNT |
4,350 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 9 PPS | 80dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
PK-27H35WQ3-20DC 90-110DB 3500HZ CONT 30X1 |
1,465 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 3.5kHz | Piezo | Single Tone | - | 100dB @ 12V, 30cm | 20mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | Wire Leads | 1.181" Dia (30.00mm) |
|
|
PS-733PRQBUZZER PIEZO 12V 1.811X 1.260SMD |
3,599 |
|
Datasheet | PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz ~ 4.5kHz | Piezo | Siren | - | 85dB @ 12V, 300cm | 200mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | PC Pins | 1.811" L x 1.260" W (46.00mm x 32.00mm) |
|
|
PS-733PYQBUZZER PIEZO 12V 1.811X 1.260SMD |
3,106 |
|
Datasheet | PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz ~ 4.5kHz | Piezo | Siren | - | 85dB @ 12V, 300cm | 200mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | PC Pins | 1.811" L x 1.260" W (46.00mm x 32.00mm) |
|
|
PS-733EWDBQBUZZER PIEZO 12V 1.811X 1.260SMD |
2,407 |
|
Datasheet | PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz ~ 4.5kHz | Piezo | Siren | - | 85dB @ 12V, 300cm | 200mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Wire Leads | 1.811" L x 1.260" W (46.00mm x 32.00mm) |
|
|
PS-733EWDGQBUZZER PIEZO 12V 1.811X 1.260SMD |
2,948 |
|
Datasheet | PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz ~ 4.5kHz | Piezo | Siren | - | 85dB @ 12V, 300cm | 200mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Wire Leads | 1.811" L x 1.260" W (46.00mm x 32.00mm) |
|
|
PS-733EWDYQBUZZER PIEZO 12V 1.811X 1.260SMD |
2,518 |
|
Datasheet | PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz ~ 4.5kHz | Piezo | Siren | - | 85dB @ 12V, 300cm | 200mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Wire Leads | 1.811" L x 1.260" W (46.00mm x 32.00mm) |
