Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC628NDPBUZZER PIEZO 42.98MM PNL MNT |
1,077 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 28V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 85dB @ 10V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC628DPRBUZZER PIEZO 42.98MM PNL MNT |
1,612 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 60dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
ZA016LDMP1BUZZER PIEZO 30.74MM PNL MNT |
1,870 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028LDMP1BUZZER PIEZO 30.74MM PNL MNT |
2,304 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC250NRBUZZER PIEZO 42.85MM PNL MNT |
1,127 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

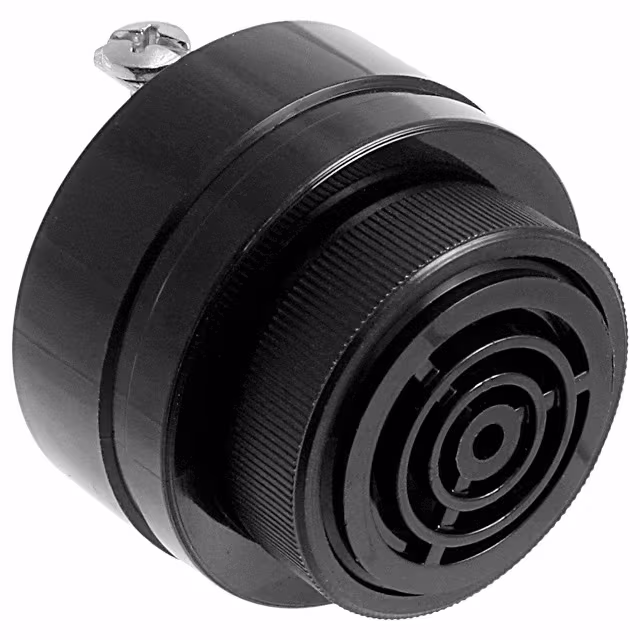

SC628NPRBUZZER PIEZO 42.98MM PNL MNT |
3,577 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC2036CPRBUZZER PIEZO 42.85MM PNL MNT |
2,278 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 36V | 1kHz | Piezo | Chime | - | 68dB @ 20V, 61cm | 12 ~ 25mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCE028LD2TT1BBUZZER PIEZO 42.98MM PNL MNT |
3,289 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.167kHz | Piezo | Ringer, 3 Tone | - | 85dB @ 16V, 61cm | 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
ZT028LDCTRBUZZER PIEZO 30.74MM PNL MNT |
2,435 |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC250RBUZZER PIEZO 42.85MM PNL MNT |
1,916 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
