AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPS120050-P5RPAC/DC WALL MOUNT ADAPTER 12V 6W |
2,595 |
|
Datasheet | EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 132 VAC | 12V | 500mA | 6 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | cULus |
|
EPS050250UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 5V 13W |
2,212 |
|
Datasheet | WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.5A | 13 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus |
|

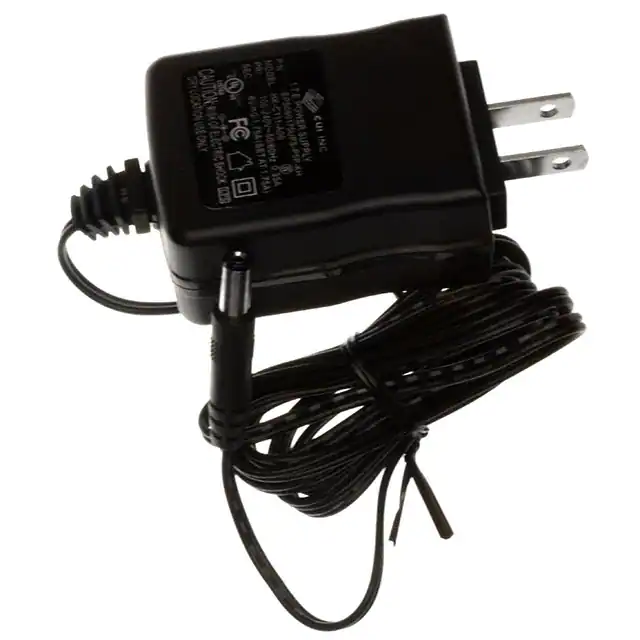

EPS060175UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 6V 11W |
2,273 |
|
Datasheet | WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 1.75A | 11 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus |
|

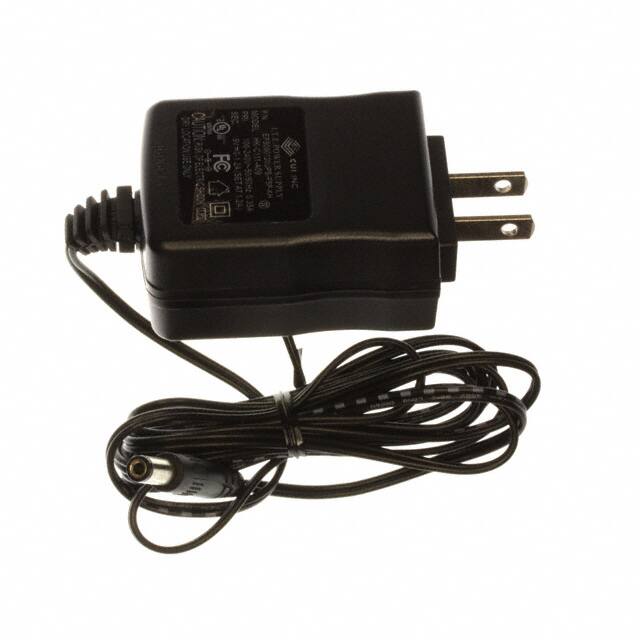

EPS090120UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 9V 11W |
3,732 |
|
Datasheet | WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.2A | 11 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus |
|
EPS120100UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 12V 12W |
2,839 |
|
Datasheet | WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus |
|
EPS120100UPS-P5RP-KHAC/DC WALL MOUNT ADAPTER 12V 12W |
2,001 |
|
Datasheet | WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus |
|
EPS150080UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 15V 12W |
4,489 |
|
Datasheet | WALL PLUG (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 800mA | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus |
|
EPS240050UPS-P5P-KHAC/DC WALL MOUNT ADAPTER 24V 12W |
3,442 |
|
Datasheet | WALL PLUG (12W) | Bag | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 1.18" L x 1.77" W x 2.43" H (30.0mm x 45.5mm x 61.8mm) | cULus |
|

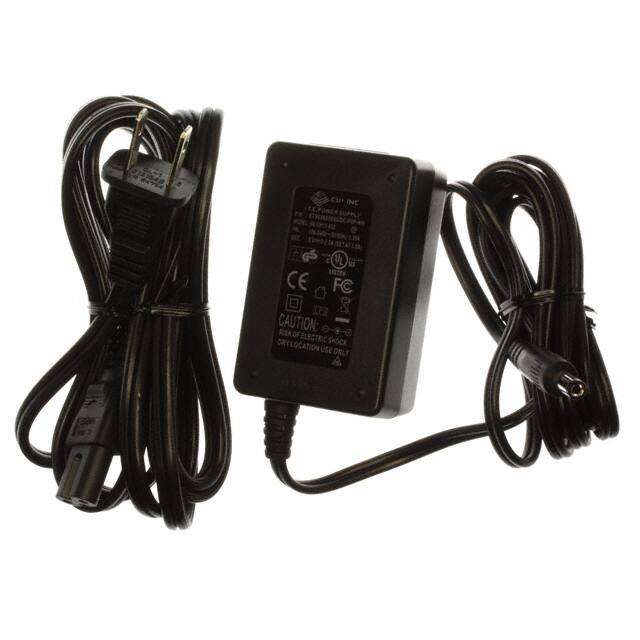

ETS050250SUDC-P5P-KHAC/DC DESKTOP ADAPTER 5V 13W |
2,745 |
|
Datasheet | ETS DESKTOP (12W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 255 VAC | 5V | 2.5A | 13 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | IEC 320-C6 | - | 4.23" L x 2.20" W x 1.33" H (107.5mm x 56.0mm x 33.7mm) | CB, CE |
|
ETS120100SUDC-P5P-KHAC/DC DESKTOP ADAPTER 12V 12W |
2,398 |
|
Datasheet | ETS DESKTOP (12W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 1A | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C6 | - | 2.91" L x 1.83" W x 1.18" H (74.0mm x 46.5mm x 30.0mm) | CB, CE |
